Progress Report And Thanks For Your Generous Sharing

I was also wondering if the micrometer head adjustment is too fiddly. Would attaching a large diameter disk( perhaps even a circular protractor) to the screw handle make it easier to make fine adjustments?

Gentlemen, I am truly grateful for the advice, challenges and assistance, and I don't mean to disappoint you, but you are moving too fast for me. I am a methodical person who does what I can in a step by step fashion. My first priority has been getting familiar with the lenses I have acquired. The second priority has been to study the effects of close LED lighting. From my end, all the testing and examples up to now have served these two needs. The next agenda item you suggested for me was vibration stabilization, for which I may have a solution that I cannot yet implement. Now I need to attend to the accuracy of the movements for fine measured steps in the stacking routine.

In each of these stages special adaptations to equipment has been an issue that needs to be solved as we go. I am still waiting for the arrival of the lens reverser you suggested to me, which was not in my PO Box when I checked this A.M. but apparently is in the box now. For the lighting I had to take some time to fashion the ppb diffuser (without instructions - I have never tried to cut a ping pong ball before). For the stabilization block I still need to find some steel plates.

So far the fixes have been rather simple for me to devise. However, fixing the mechanical advance problem is at another level entirely. At this point I have been dependent upon the focusing controls of a microscope base unit to provide the vertical stacking steps. It is obviously not up to par, but it is the best I can do for now. I have a z-stage unit, and I can use it as a stage block, but I cannot yet use it for its intended purpose. I have not devised a way to mount or anchor the z-stage unit so that it moves ONLY in the vertical direction intended when I attempt to turn the micrometer handle. Until I figure out how to devise a stable base, I cannot do the kind of testing you are taking for granted.

Ray, you say that you are able to use the z-stage with a 20x lens and get a clean result. How? What keeps the stage from rotating or shifting in the x-y plane when you touch it, let alone attempt to rotate the handle?

Thank you Ray. Today I picked up another plate that I will be using to mount the z-stage. I like the idea of using a double sided tape so I can remove the delicate z-stage when I wish. But I learned that there are many types of double sided tape, one of which is called "mounting tape." The package has a warning, "This is a permanent tape and may cause damage if removed." Since this particular tape is good for up to a 15 pound load, I purchased it. But before I use it, I want to make sure I am not making the wrong choice.

Is this what you are recommending: 3M Scotch outdoor mounting tape, holds 15 pounds. Works with metals.

Is there something that can be removed with less danger to the delicate z-stage?

Thanks again, Ray. On Sunday I was able to pick up the kind of tape you recommended, and did a temporary mount of the z-stage to a new plate for it. I have an idea for a more permanent solution, about which I will share if it proves to be useful. For now, the light weight tape is getting the job done.

I am honing in on weaknesses in my stacking technique, but running into snags. In a test Sunday I was able to use the z-stage alone to step the focus of the test coin (Balbinus antoninianus). Since I wanted easily recognizable images for this initial run, I used an M5 Nikon objective lens with the bellows setup. For the first test I did not use a light diffuser.

For the shooting I used the Live View/ EFSC hookup, alternating between normal and magnified views for each shot. My interval was each marked striation on the micrometer dial, and I stepped entirely around the dial twice in one continuous succession. The actual limits of the focal range for this coin were reached within 70 steps. Prior to this I had been letting the right to left progression of the focus determine when to start and stop a stack. However, that was not consistent in this new setup, so I have decided henceforth to define focus for a z-axis range (e.g. .5 mm) and sort from that.

Unfortunately I ran into a limitation in my computer/software for processing the 70 selected layers. CombineZ apparently limits processing to what it can handle for a given system memory size (16gb for my Win7system). Even when I selected only one stacking module (e.g. Pyramid DO) it choked at more than 30 images. As a workaround I selected 2 groups of 30 layers each and ran them under the "Pyramid Do" macro.

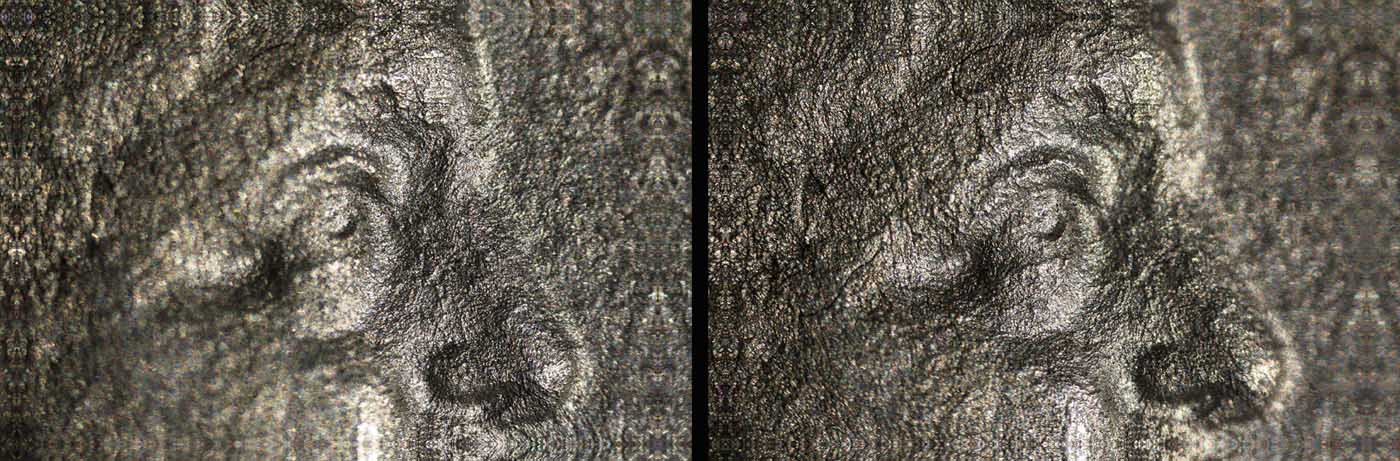

Here are the original output images (adjusted for color and file size; the composite of the first 30 steps is on the left:

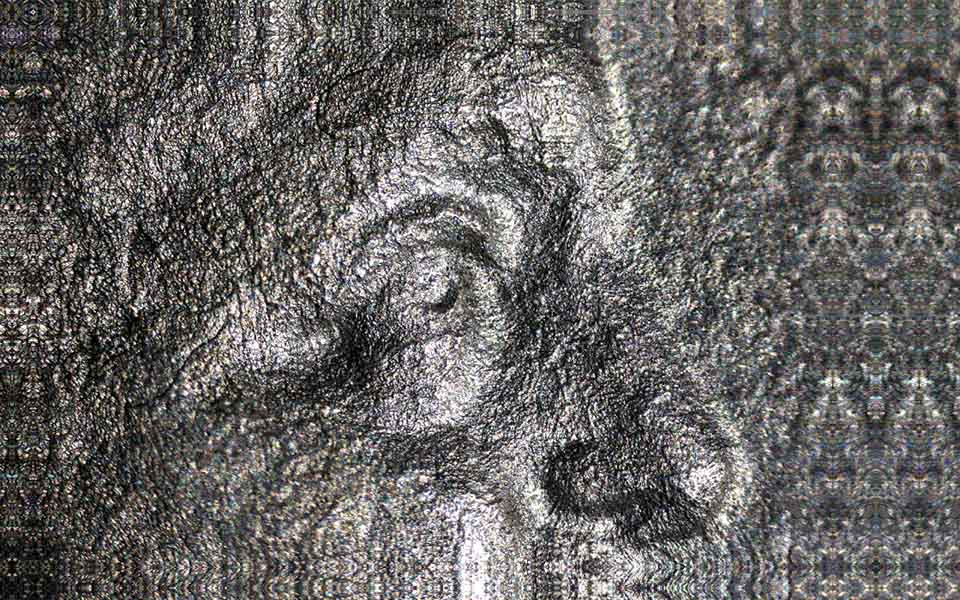

The idea was to use these images as the source files for a composite stack. The mess below shows how that turned out (with error compounding)"





Apart from trying different software, not sure how to proceed from here.

CZP does say in their help section that you can alter certain features by doing little edits on each or any of the macros you want to use. But that is not my thing either, though I may try it to see if I can get a fix.
Helicon and Zerene are both tempting, but I am not yet at the point where I am ready for either of them. When I can make an informed choice, I will. Meanwhile I will try your suggestion, at least with the M5 (and probably the Plan4). But what about the 10x? What do the "calculators" say about step size with that? Austrokiwi seemed to suggest that the smaller the better. Maybe if I switch off a low pass filter or other functions in the macro de jure more will fit the stack size limits?

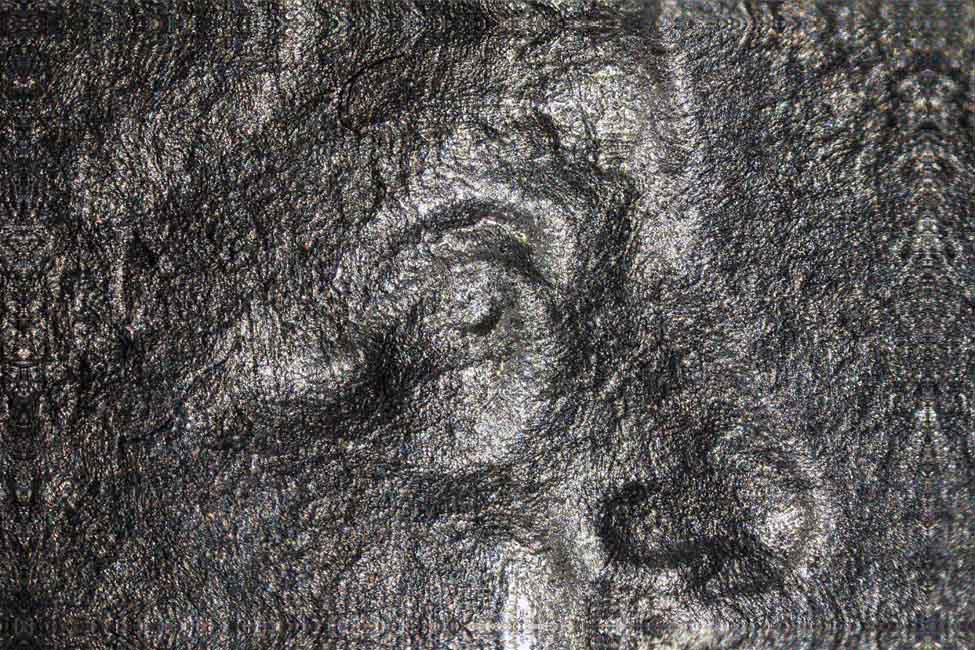

Along the lines of your suggestion I went through the stack of images and selected every third one. I tried it in CZP, and got output for two modes, but when I tried Pyramid DO it choked trying to build a high pass filter. Here is the DO Stack macro output:






Other updates I forgot to append last time:

I picked up the lens reverser from Raf Camera on Monday (Jul 25), but have not yet had a chance to test it out. Delivery time was quite good. It was purchased July 14, arrived in New York July 19, and was placed in my PO Box July 23. I expect to test it today.

1/4" Steel plates have been ordered for the stabilization base, as well as a set of 1/2" thick Sorbothane discs. (This combo will go in each corner of the frame between the frame and the granite block.) Now I just have to figure out where to put the Xerox machine.

Hmmm. That sounds like something you would dial in digitally rather than rotate mechanically.

Stackshot with Helicon perhaps?

Thank you for the kind words about the image. I was worried that the lighting was not strong enough. The silver alloy doesn't look very "silvery" at this level.

I am going to try three tests today and will run some things past when they are ready.

Irbguy: This is slightly off on a tangent: Here is a very good run down on Focus rails( for stacking):

Although you use a Z stage some of the principles may give you some insight:

https://lensvid.com/gear/choosing-t...photography/
