2000 Massachusetts ATB Quarter Die Break


To participate in the forum you must log in or register.
Author Previous Topic Topic Next Topic
New Member

United States
21 Posts
 Posted 02/12/2020  10:47 am Show Profile   Bookmark this topic Add Kgil to your friends list Get a Link to this Message

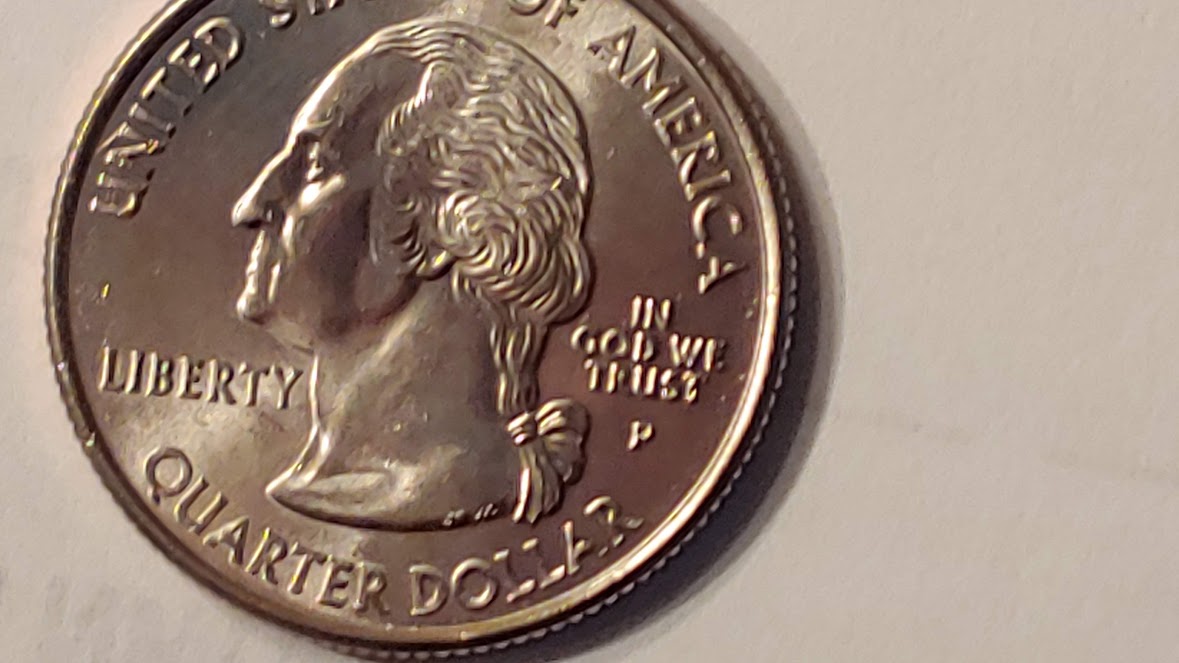

I have found several of these with the same die break by his right foot

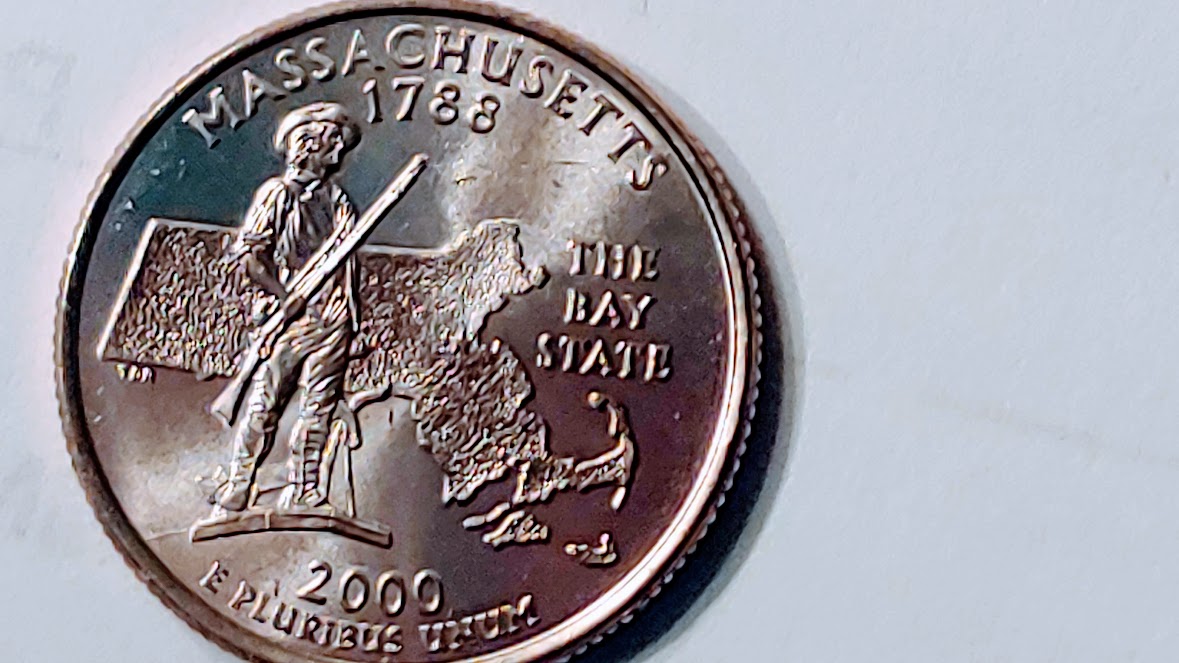

This one I noticed the die break above the eye same quarter

So I assume that they have the same value=Quarter
Bedrock of the Community
United States
31956 Posts
 Posted 02/12/2020  11:51 am  Show Profile   Bookmark this reply Add John1 to your friends list Get a Link to this Reply
You are correct.
John1
( I'm no pro, it's just my humble opinion )
Searched 5+ Million Cents Since 1971
Bedrock of the Community
Learn More...
United States
42301 Posts
 Posted 02/12/2020  12:19 pm  Show Profile   Bookmark this reply Add coop to your friends list Get a Link to this Reply

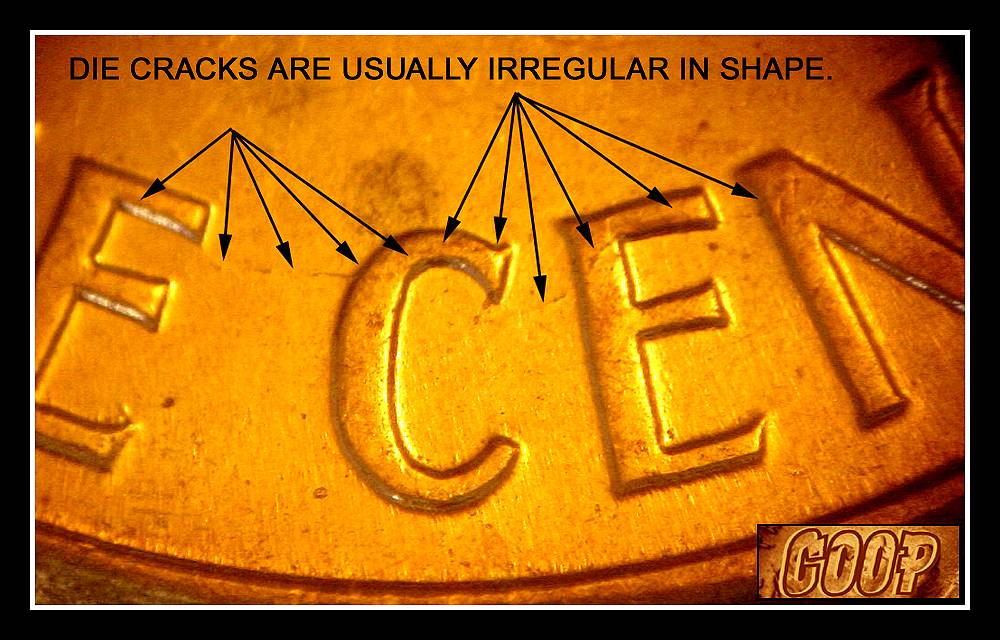

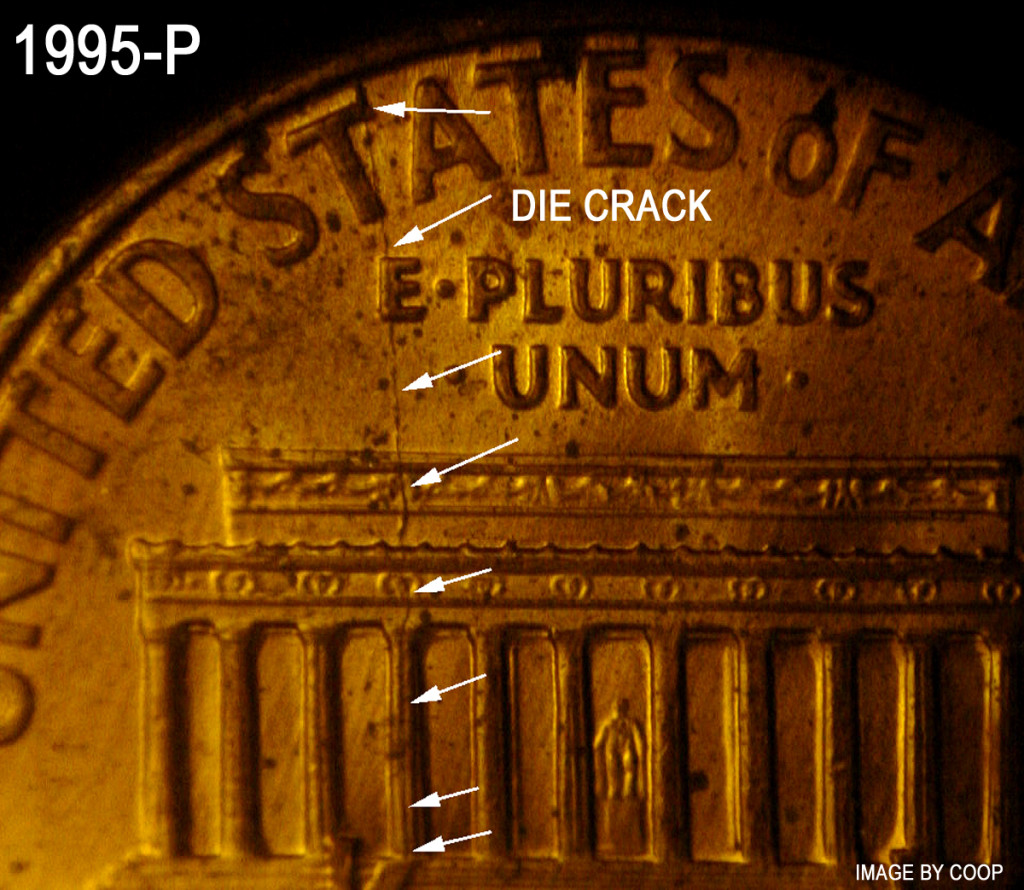

If you are talking about the the line that connects to the rim, that is a die crack. A die break would be a lot larger What is the difference? A die crack is a thin line on a die:

Note the die on the left in the back. Note the line line showing the die crack. This incuse mark on the die will leave a raised line on the coins struck with this die.

Then note the simulated die in front of that die image. Note the area edited to show a chip away from the gutter area that forms the rim?

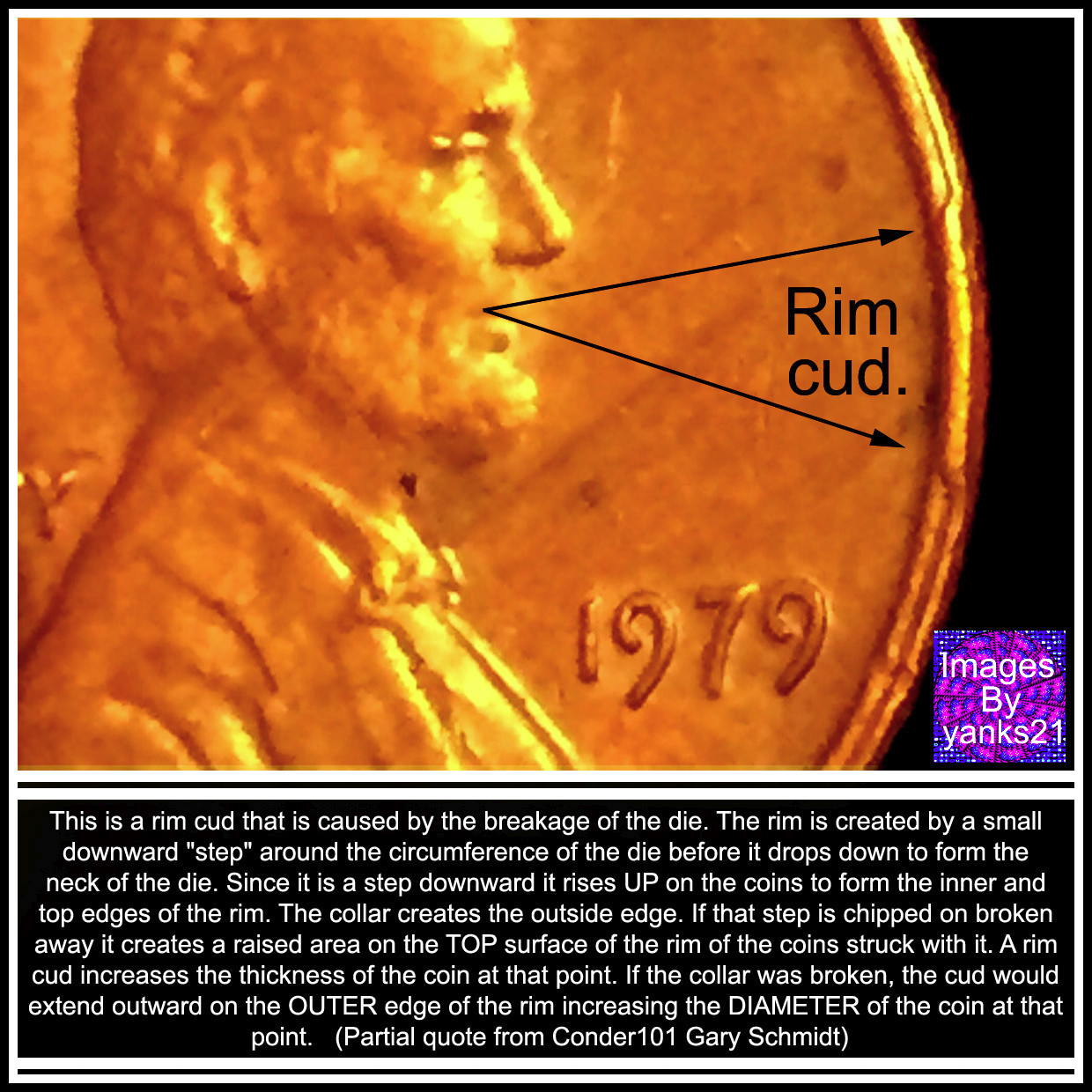

That will leave what is called a rim cud. Because the mark is lower than the gutter line, the rim cud will extend above the rim on that area of coins struck with that die.
Then note the die on the right? An area is missing from the outside edge of the die. This will leave a cud on the coins struck with this die.

So why will this leave a raised area on the coins struck with these dies? The missing areas on the die are voids. So when coins are struck, this void fills in and leave a higher area than the rest of the coins designs. The lack of metal will also leave a weakened area when more metal flows into the coin. Thus weakness will show.

But lets say where the die crack is that small areas of the die starts chipping away, Then that area will leave a raised chip.



Either on a die crack or on any areas near the fields or on the designs. The voids like to fill because of the path of least resistance. Then when enough the metal breaks away off the die the void gets larger and then becomes a die break.

This is marked as a chip, but is actually a die break because of the metal now missing from the die.
Hope this helps?

CoopHome crack chip break rim cud die cud
Richard S. Cooper
Some have asked about my images I use and I'm glad to say, you can now you can see the DVD in sections on youtube:
1. Intro, older coins, toned coins 2. Doubled dies 3. Die events, One of a kind errors 4. So called errors, Coin information 5. Coin information Types and Varieties, Overlays
Jefferson nickel doubled dies Wexler/Rebar complete listings

trail dies:http://www.traildies.com/
New Member
United States
21 Posts
 Posted 02/12/2020  10:28 pm  Show Profile   Bookmark this reply Add Kgil to your friends list Get a Link to this Reply
Thank very helpful
New Member
United States
21 Posts
 Posted 02/12/2020  10:32 pm  Show Profile   Bookmark this reply Add Kgil to your friends list Get a Link to this Reply
Would they be worth any value die breaks or just be worth saving just to have.
Bedrock of the Community
United States
31956 Posts
 Posted 02/13/2020  04:21 am  Show Profile   Bookmark this reply Add John1 to your friends list Get a Link to this Reply
Your coin has a minor die crack not a die break. Too minor to keep unless you want to.
John1
( I'm no pro, it's just my humble opinion )
Searched 5+ Million Cents Since 1971
New Member
United States
21 Posts
 Posted 02/13/2020  1:06 pm  Show Profile   Bookmark this reply Add Kgil to your friends list Get a Link to this Reply
Thank you that is What I mean a die crack. Still learning the terms
