Next Experiment: Magnifying Filters

To participate in the forum you must log in or register.
Author Previous TopicReplies: 5 / Views: 1,747Next Topic
Valued Member

United States
113 Posts
 Posted 09/06/2017  11:55 am Show Profile   Bookmark this topic Add coinee to your friends list Get a Link to this Message Number of Subscribers

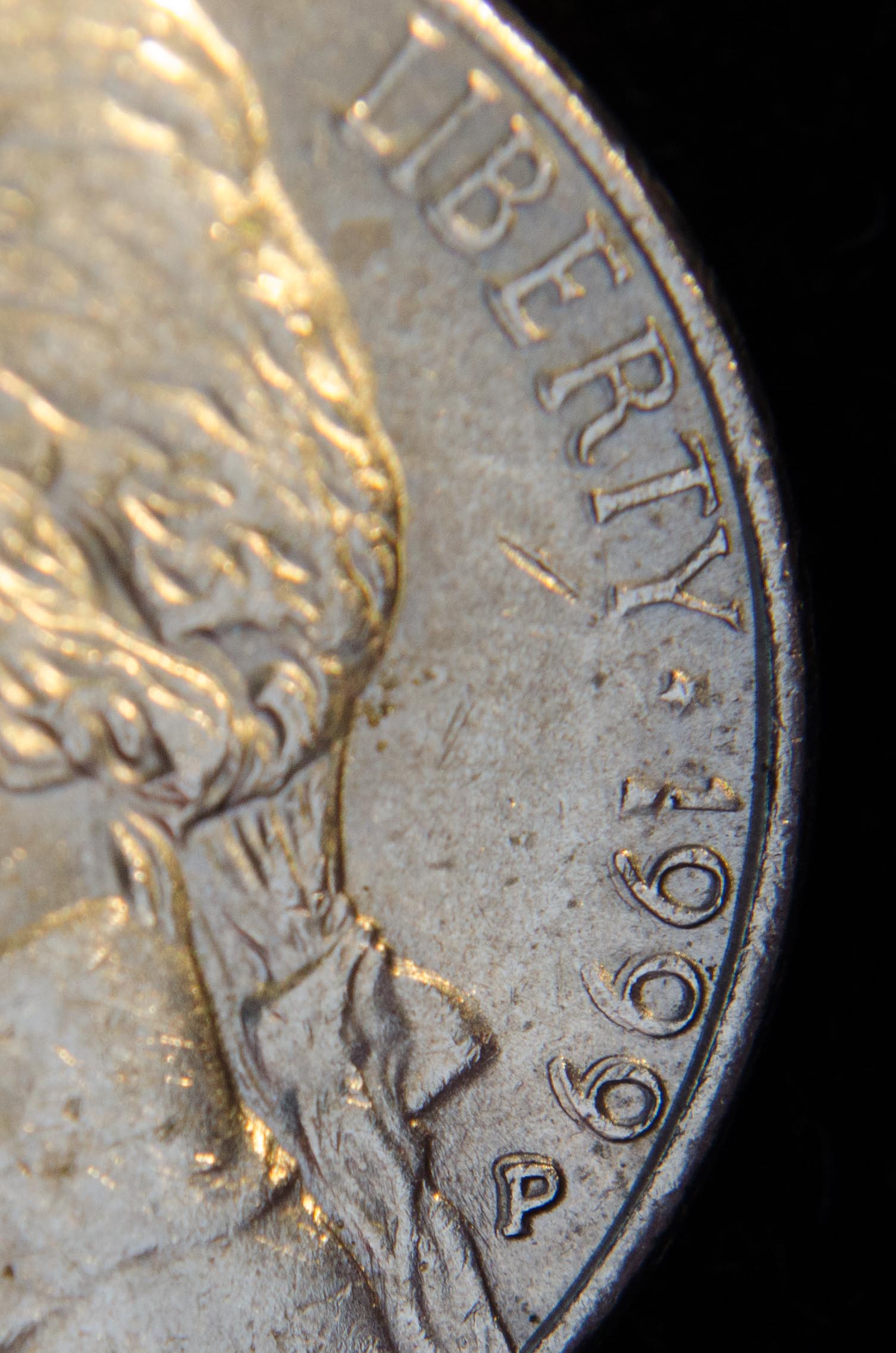

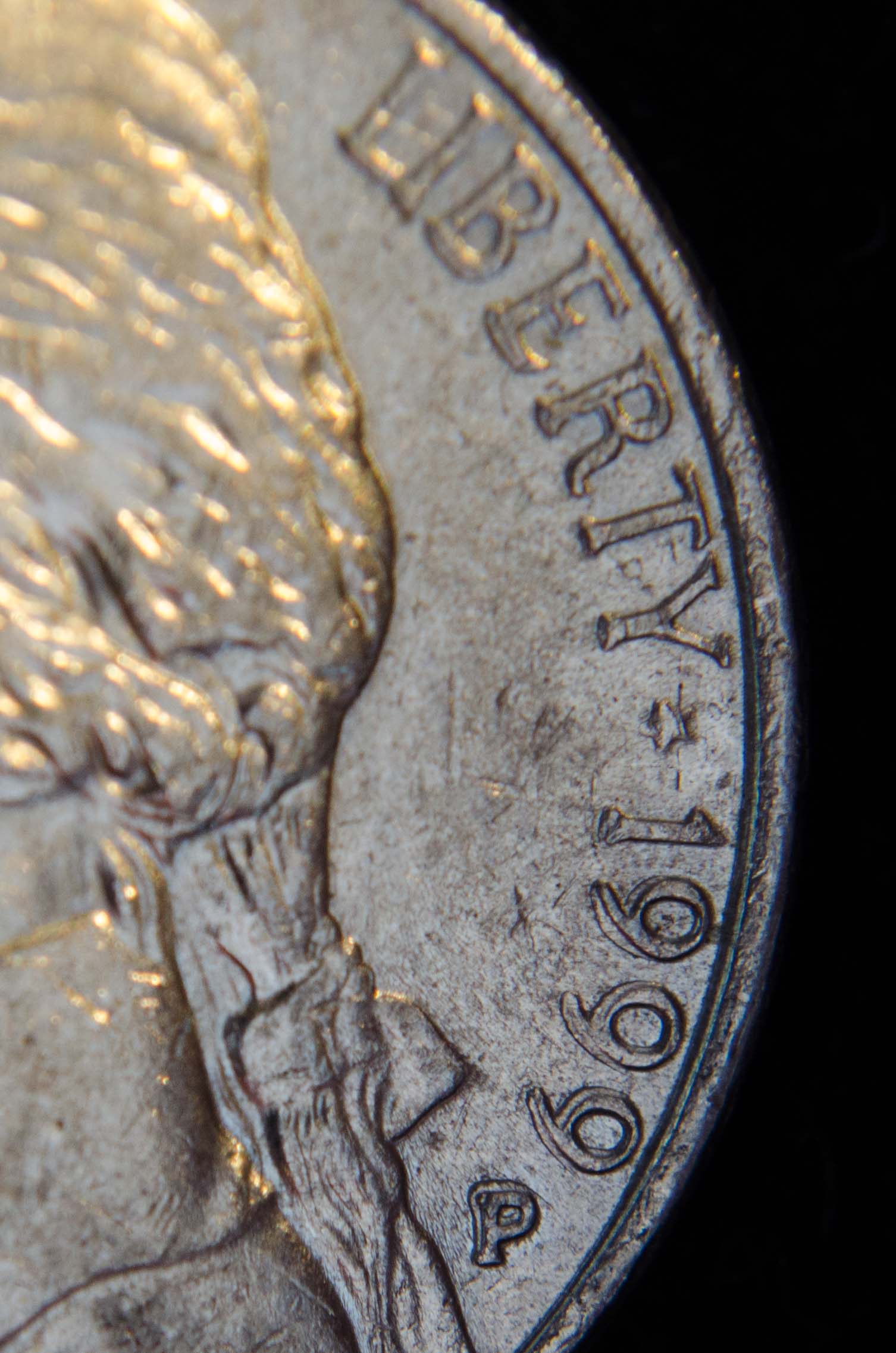

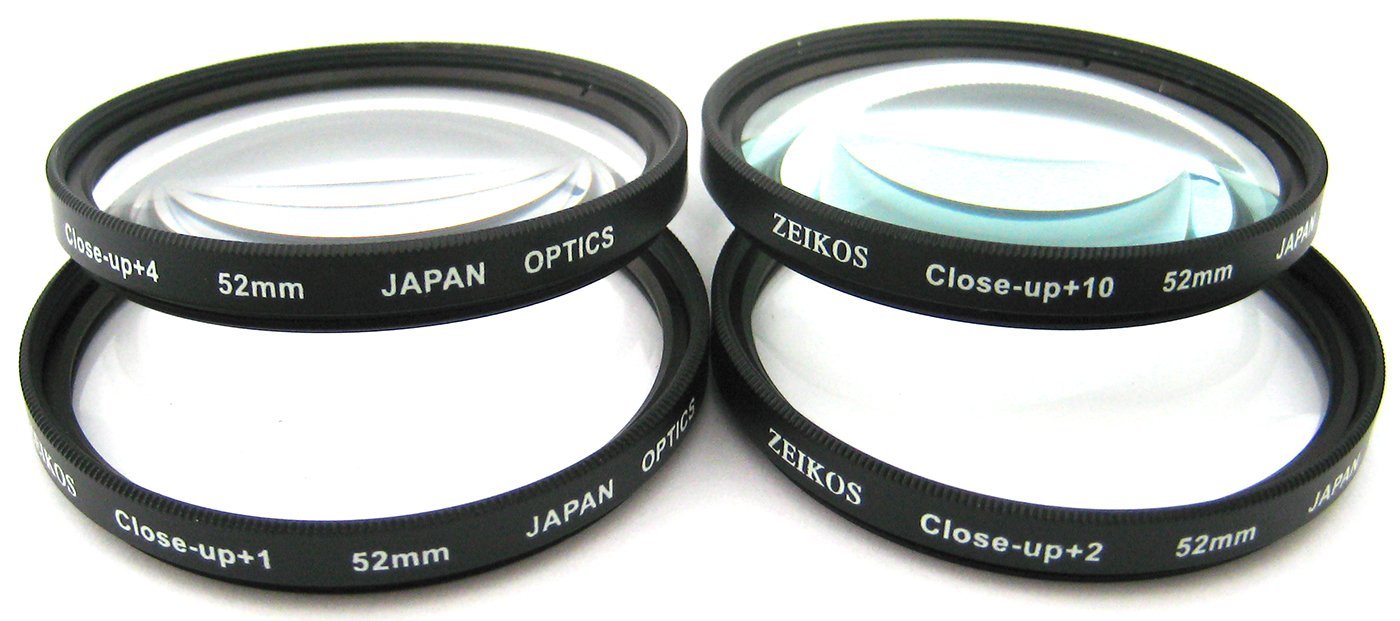

The pictures below were the latest experiment with my Nikon DSLR setup. I used the 18mm-55mm kit lens and tested attaching 2x, 4x, and 10x close-up filters. The photos were from the 10x filter. The coin was not level to the lens which resulted in the upper area being out-of-focus. I also played with the lighting by blocking some of it with my hand. Pretty low tech but seemed to have worked. I think they turned out pretty well.

Next-Experiment:-Magnifying-Filters
Next-Experiment:-Magnifying-Filters
Moderator
Learn More...
John1's Avatar
United States
56855 Posts
 Posted 09/06/2017  1:18 pm  Show Profile   Bookmark this reply Add John1 to your friends list Get a Link to this Reply
Looks like nice MD,but the pic needs to be more in focus...IMHO.
John1
Pillar of the Community
BadDog's Avatar
United States
1375 Posts
 Posted 09/06/2017  1:36 pm  Show Profile   Bookmark this reply Add BadDog to your friends list Get a Link to this Reply
I agree, they do look pretty sharp.

Do you have a feel for how the filters work compared to non-filter photograph that is magnified? It would be nice to see side-by-side photos, one magnified and one using the filter, to compare the level of detail to determine the effectiveness of the filter.
Rest in Peace
moxking's Avatar
United States
17900 Posts
 Posted 09/06/2017  3:46 pm  Show Profile   Bookmark this reply Add moxking to your friends list Get a Link to this Reply
You have an extremely small depth of field, so you really need to shoot as flat as possible. That's a heck of a MD.
Pillar of the Community
bd251's Avatar
United States
1842 Posts
 Posted 09/06/2017  4:28 pm  Show Profile   Bookmark this reply Add bd251 to your friends list Get a Link to this Reply
Use a smaller aperture (higher f-number) to get more depth of field and reduce your focusing issues for the not-quite-parallel coin. To compensate for less light hitting the sensor, use a slower shutter speed. I am assuming you are using some sort of stabilization like a tripod or other mount. Use the two-second timer to avoid camera shake from pushing the shutter button with the longer exposure. Looks like it could be a promising setup
Valued Member
United States
113 Posts
 Posted 09/06/2017  4:59 pm  Show Profile   Bookmark this reply Add coinee to your friends list Get a Link to this Reply
I was at f11 and I think 1 second shutter speed. I was attempting to not go too high a f-stop because of lighting. I had pushed the ISO to 500 I think. When it comes to metal a lot of light really starts to mess with exposure and colors I'm finding.
