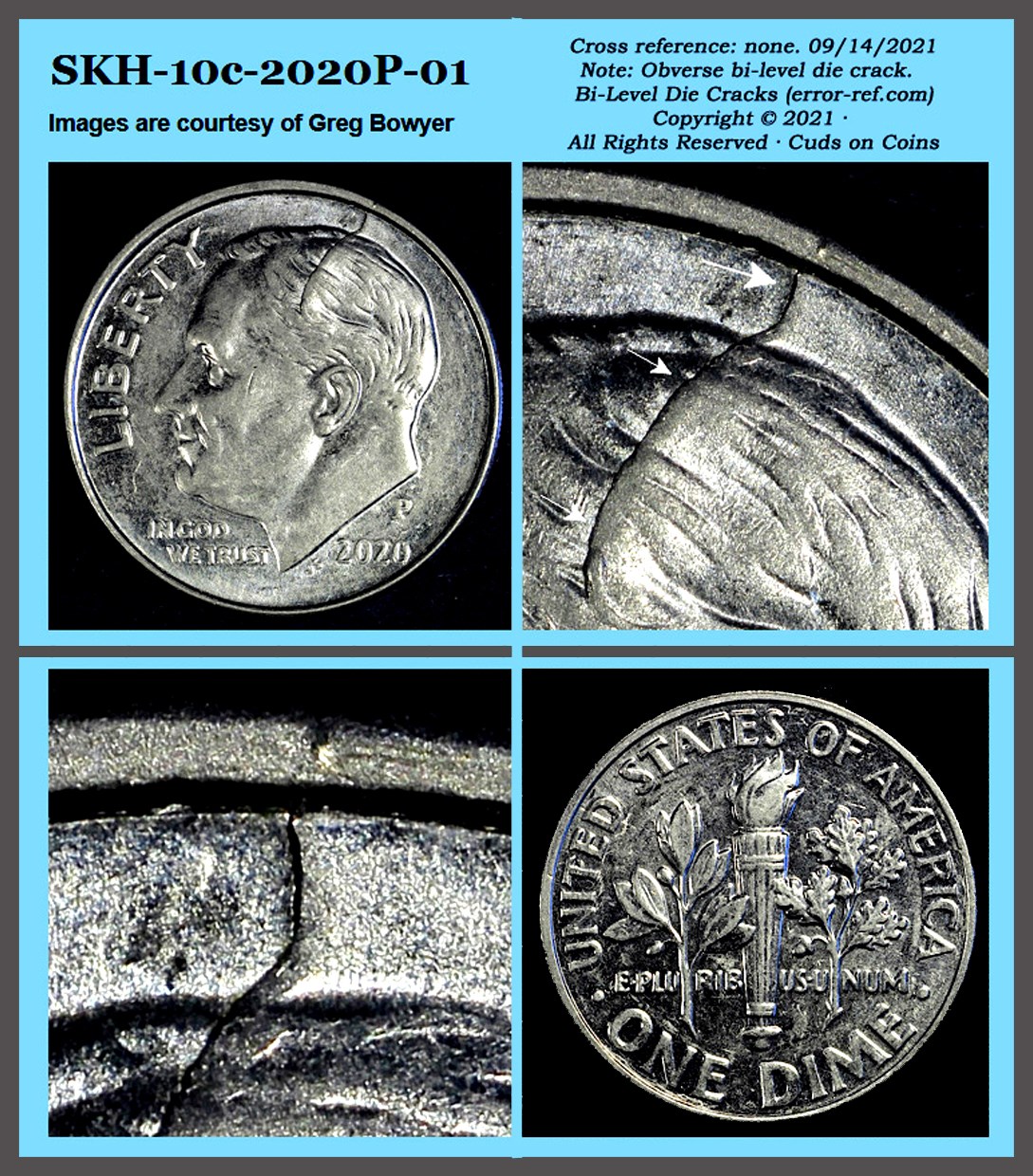

I could be wrong but this still looks like a die crack. An atypical one for sure as pointed out, has some subsidence. If it truly is a die crack, it would be a bi-level crack: http://www.error-ref.com/bi-level_die_cracks_/Which is something I don't think I have ever found, so neat find! |
|
Pillar of the Community
 United States
2742 Posts |
Thanks Tanman, that is a helpful link. Vertical displacement describes this well so Bi-level Die Crack is what I'll write on the 2x2. Weighs 2.26g Coop Quote:
By chance do you live up the the US North West, near the Cascadia fault area? I currently live on Maui but am originally from LA/Orange County CA. Thanks for the responses. "Pride is yoked with callous behavior, as humility is with compassion." St. Gregory Palamas Top Finds - 1969-S 1c FS-101 http://goccf.com/t/477681 1976 D WQ FS-101 http://goccf.com/t/382777 - 1968 D 1c FS-801 http://goccf.com/t/422254Cool clashed dies - 1972 D 1c http://goccf.com/t/429855&SearchTerms=CCLStruck-In Rim Burr - 1969 S 1c http://goccf.com/t/425587&SearchTerms=burrFloating (Type II) Counterclash - 1978 D 1c http://goccf.com/t/434991&SearchTerms=1978 |
|
Bedrock of the Community
United States
62064 Posts |
Not reduced a lot. What does the edge reeds look like on that area? They might be altered a bit if this a cladding? As far as a crack, it seems to be seen on just one side? Thus the thought about a clad issue.
Edited by coop
09/02/2021 02:44 am
|
|
Valued Member
United States
171 Posts |
Awesome fine!! I'm jealous!
|
|
Pillar of the Community
United States
2738 Posts |
I was asked to weigh in. This is a bi-level (stepped) die crack. Instead of the sides spreading apart, one side of the crack sank in. These sorts of cracks are slightly less common than conventional die cracks.
Error coin writer and researcher.
|
|
Pillar of the Community
United States
2742 Posts |
Thanks Mike!
"Pride is yoked with callous behavior, as humility is with compassion." St. Gregory Palamas Top Finds - 1969-S 1c FS-101 http://goccf.com/t/477681 1976 D WQ FS-101 http://goccf.com/t/382777 - 1968 D 1c FS-801 http://goccf.com/t/422254Cool clashed dies - 1972 D 1c http://goccf.com/t/429855&SearchTerms=CCLStruck-In Rim Burr - 1969 S 1c http://goccf.com/t/425587&SearchTerms=burrFloating (Type II) Counterclash - 1978 D 1c http://goccf.com/t/434991&SearchTerms=1978 |
|
Pillar of the Community
United States
2742 Posts |
This was listed on CoC with a note about the Bi-level DC and link with more info on error-ref. The only other bi-level DC's I've seen have been associated with shattered dies so I'm interested in seeing other examples in single DC form. http://cuds-on-coins.com/roosevelt-...946-present/ |
|
Moderator
 United States
34428 Posts |
Thx for following up in this thread @coinhi. This helps me learn!
"If you climb a good tree, you get a push."
-----Ghanaian proverb
"The danger we all now face is distinguishing between what is authentic and what is performed."
-----King Adz
|
|
Pillar of the Community
United States
5786 Posts |
Really like this dime coinhi. You did a great job with the images to clearly show what was going on. Glad Tanman and Mike commented because I was having trouble describing what I was seeing, but that link to the bi-level die crack saved me a lot of time. Mike said: Quote:
...Instead of the sides spreading apart, one side of the crack sank in. ... I'm a little confused though. Are you saying the die on one side of the crack spontaneously sunk in (as opposed to die subsidence from die wear)? Wouldn't there need to be a void in the die for this to happen? Is it more likely that one side of the crack on the die was lifting away instead of sinking in (sort of a pre-cud) and similar to the following description at cuds-on-coins (but before the flake spalls off): http://cuds-on-coins.com/rim-to-rim-cuds/" A large flake spalls off the die face,..." Thanks for your patience and helping me to understand. Words of encouragement are one of the major food groups.
We need to consume them regularly to thrive and grow.
|
|
Pillar of the Community
United States
2738 Posts |
The side of the crack that appears higher is where the die steel sank in as the result of subsurface plastic deformation.
Error coin writer and researcher.
|
|
Bedrock of the Community
United States
10635 Posts |
I have never seen one like this, great explanation! CCF is a great place to learn!  |
|
Pillar of the Community
United States
2742 Posts |
I also wanted to note that there is an unusual texture to the obverse face of this coin. This is seen on the upper ridge of the crack as well. There are lusterless patches that I wonder may have something to do with the unusual die crack.
"Pride is yoked with callous behavior, as humility is with compassion." St. Gregory Palamas Top Finds - 1969-S 1c FS-101 http://goccf.com/t/477681 1976 D WQ FS-101 http://goccf.com/t/382777 - 1968 D 1c FS-801 http://goccf.com/t/422254Cool clashed dies - 1972 D 1c http://goccf.com/t/429855&SearchTerms=CCLStruck-In Rim Burr - 1969 S 1c http://goccf.com/t/425587&SearchTerms=burrFloating (Type II) Counterclash - 1978 D 1c http://goccf.com/t/434991&SearchTerms=1978 |
|
Bedrock of the Community
United States
62064 Posts |
|
|
Pillar of the Community
United States
5786 Posts |
Thank you Mike for the additional info. (Although it'll take me at least a year to pronounce the term "subsurface plastic deformation" let alone understand the concept. ) Words of encouragement are one of the major food groups.
We need to consume them regularly to thrive and grow.
|
|
Pillar of the Community
United States
2742 Posts |
Quote:
Really like this dime coinhi. You did a great job with the images to clearly show what was going on.
Thanks Petespockets55! Thanks for that info graphic Coop, I saved that one. |
|
