Where To Look For Doubled Dies On The ATB Quarters.


To participate in the forum you must log in or register.
Author Previous TopicReplies: 13 / Views: 1,474Next Topic
Bedrock of the Community
Learn More...
United States
46699 Posts
 Posted 03/08/2018  2:43 pm Show Profile   Bookmark this topic Add coop to your friends list Get a Link to this Message
Where to look for doubled dies on the ATB Quarters.
The ATB Quarters are often looked at the letters inside if ring on the reverse of the coin. But these devices are incuse devices. What does that mean? The devices are pressed into the coin and not raised like all the other devices on the coin. So why is important? On usual raised devices, the hub doubling will show as an enlarged devices. Machine doubled examples will show up as reduced, flat, shelf like reducing the overall size of the devices. Note example below:

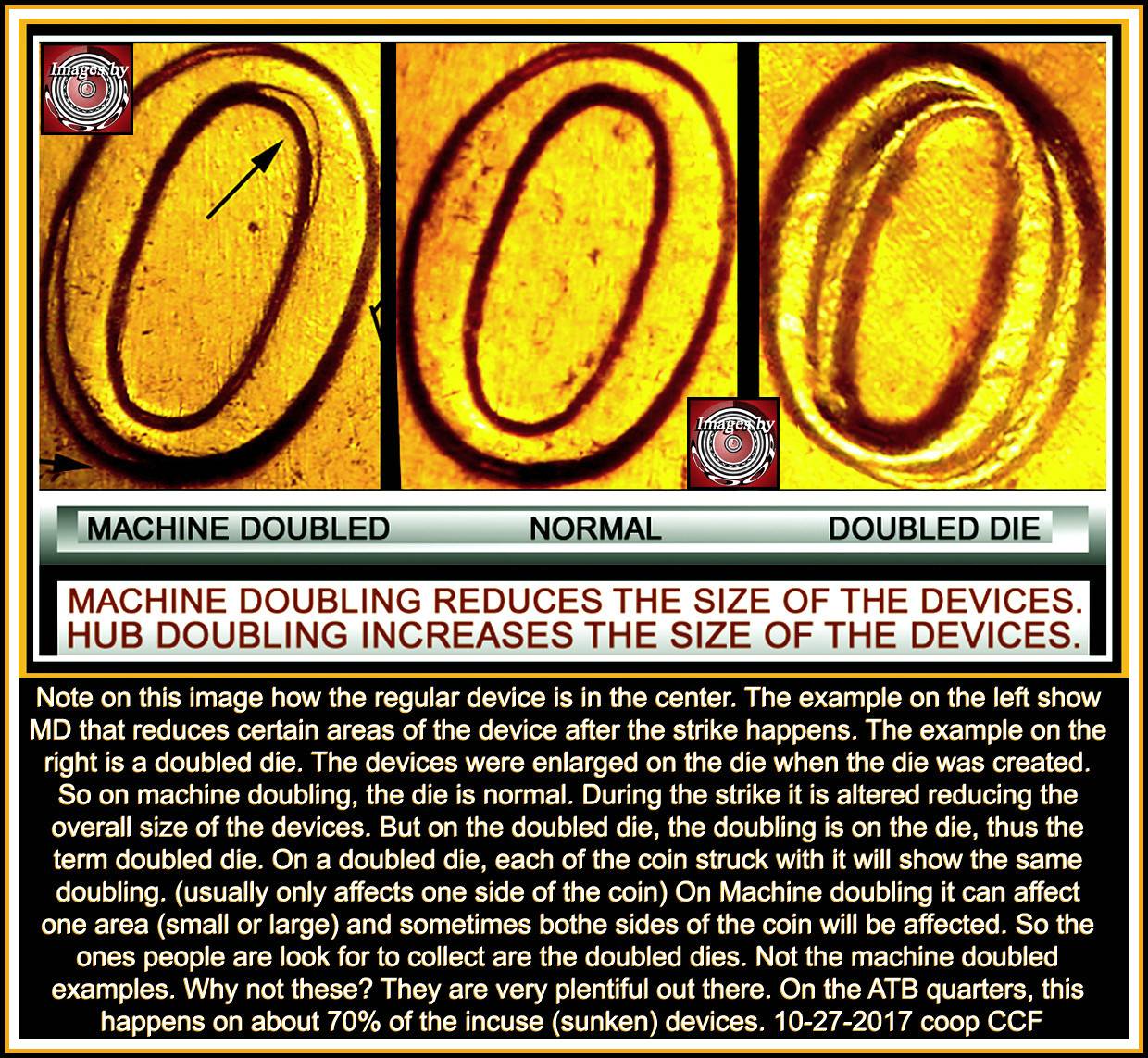

Note on the image on the left, you will see a normal sized device, but small areas are affected by a reduction of the devices size. The center image shows a normal sized device without Machine Doubling. The example of the right is showing a strong hub doubled (doubled die) example. On it we see the devices enlarged. Keep in mind that this applies for normal raised devices. So what happens on the die for each example:

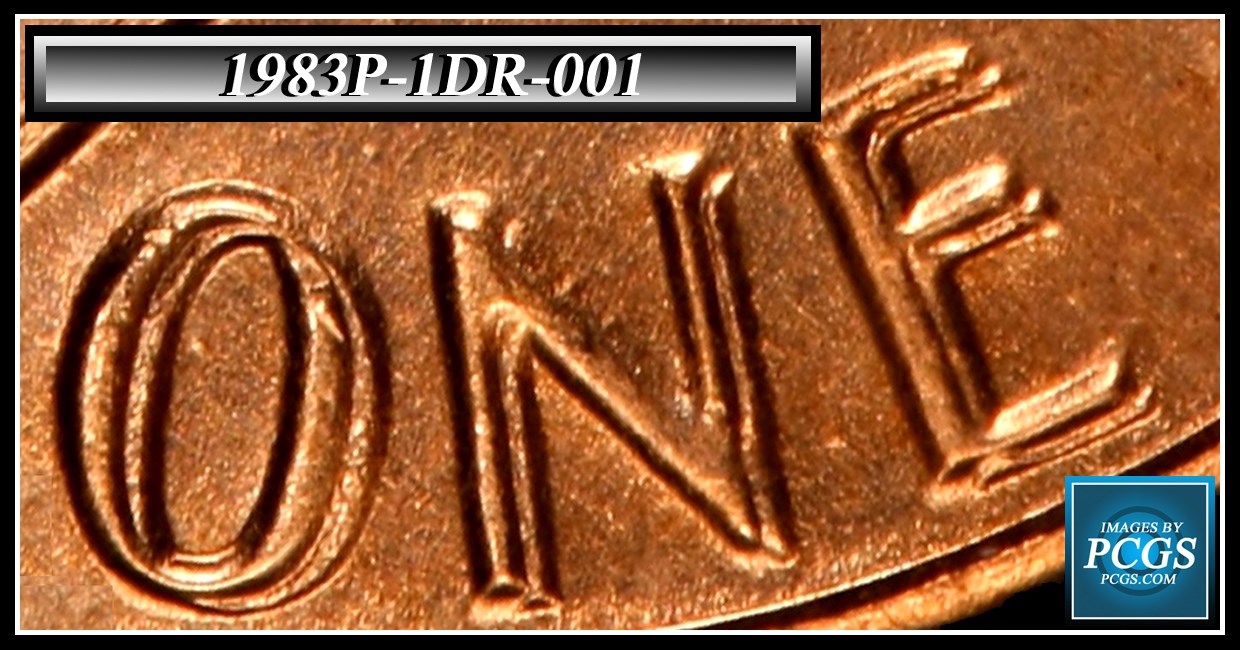

On the first and second example, the die is just a normal die. On the machine doubled example, the device was altered after the strike by die movement. On the example on the right the one marked doubled die, the devices are doubled in the die. So coins with that die will have doubled devices. On this coin the word ONE would look like this:

Thus the die is causing the doubled die and not the strike.
Doubling on incuse devices

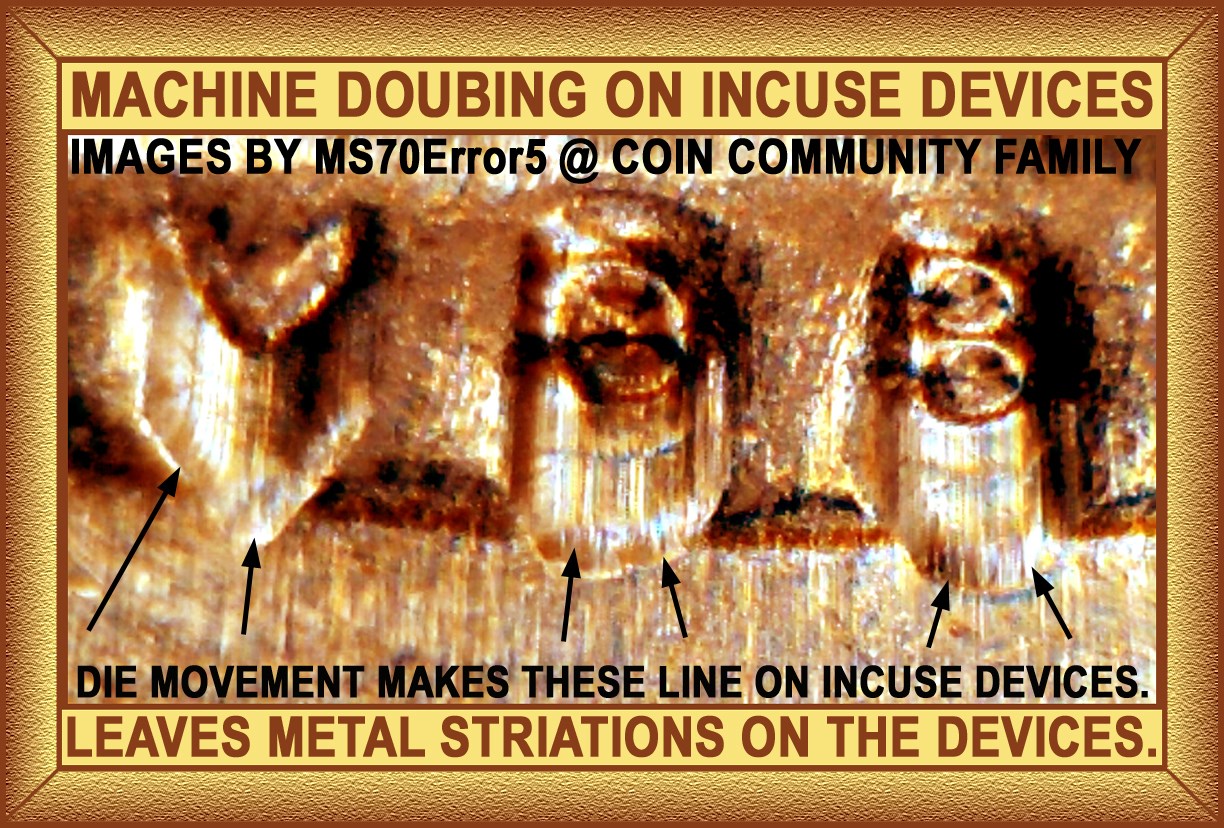

Because the result is just backwards on the die, the incuse devices on a coin would be raised on the die. A die is a negative of a coin that is struck. Riased on the coin Incuse on the die. Raised on the die, incuse devices on the coin. We have seen this for years on the VDB on the cent on the shoulder. Just didn't think much about it. But this device can at times be missing on the cents. Why? Because the polishing of the die remove the raised devices there. The fields are the outside part of a die. So if the die is polished hard in that area, the VDB will be missing. Why am I going here? Every once in a while we will see doubling on the VDB area:

The rest of the coin will look normal or have some slight Machine Doubling on the raised devices, but when looking at the VDB, it looks doubled. But as I mentioned, that are is raised, so any die movement before or after the strike will alter those devices like the example above.

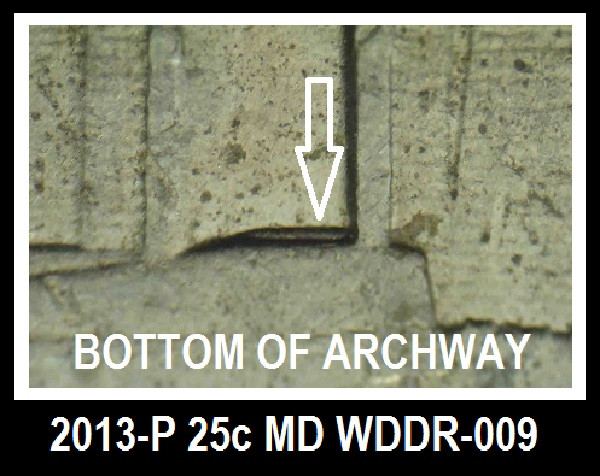

So on the ATB Quarters all the devices inside the ring area on the reverse of the quarter will be incuse devices. So any slight movement will affect these devices by enlarging them. But instead of being a doubled die, this is called Machine Doubling. I did a test of 100 random quarters I found in change and 70% of them had slight MD or strong Machine Doubling on them. Only 30% were normal. So it is no wonder new ones find these and think and sell them as doubled dies. But they are machine doubled examples. So what does that have to do with my original question?
Where to look for doubled dies on the ATB Quarters?

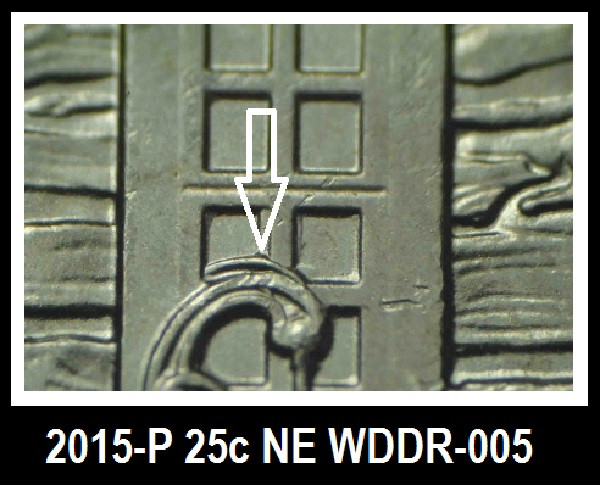

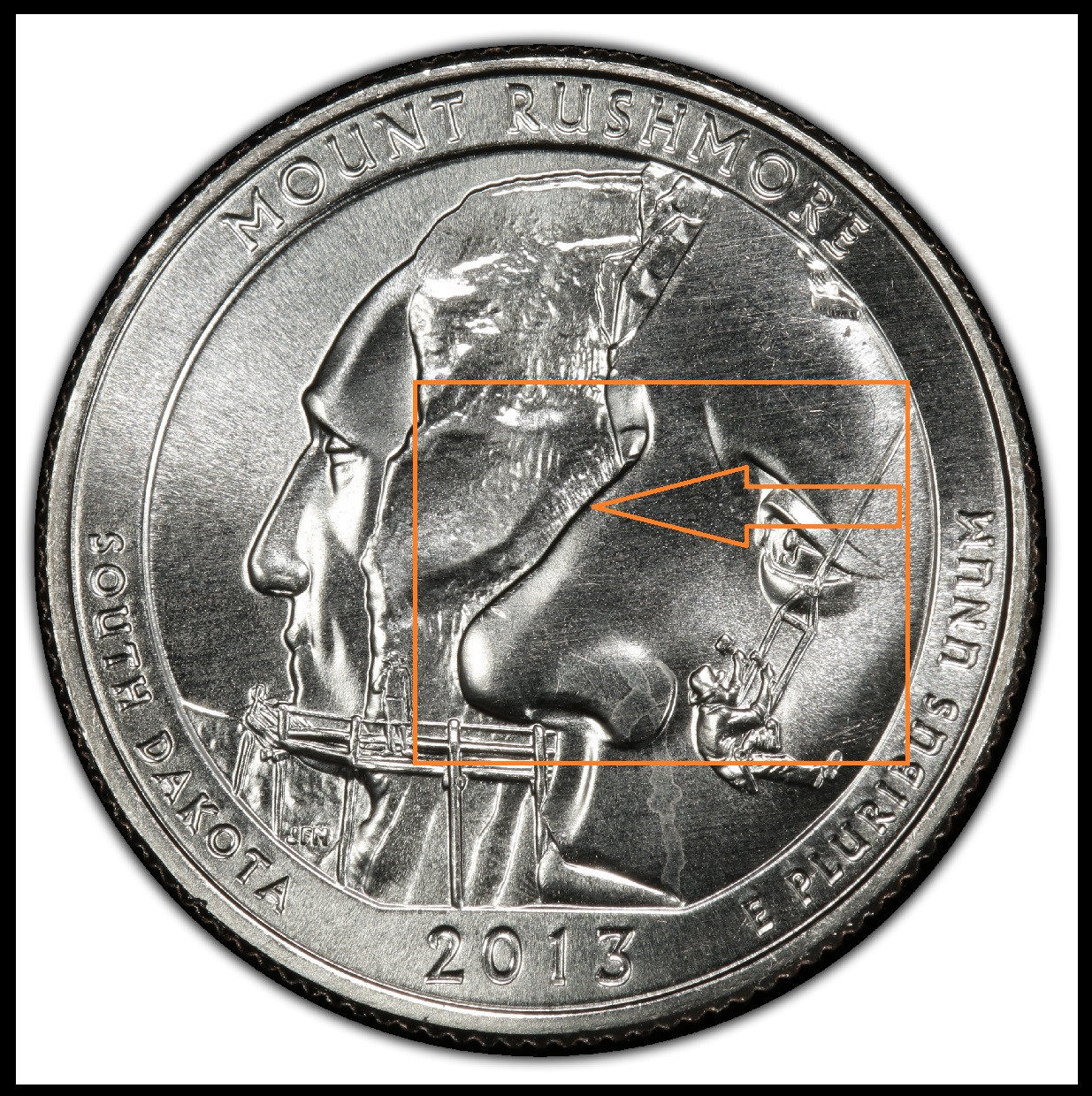

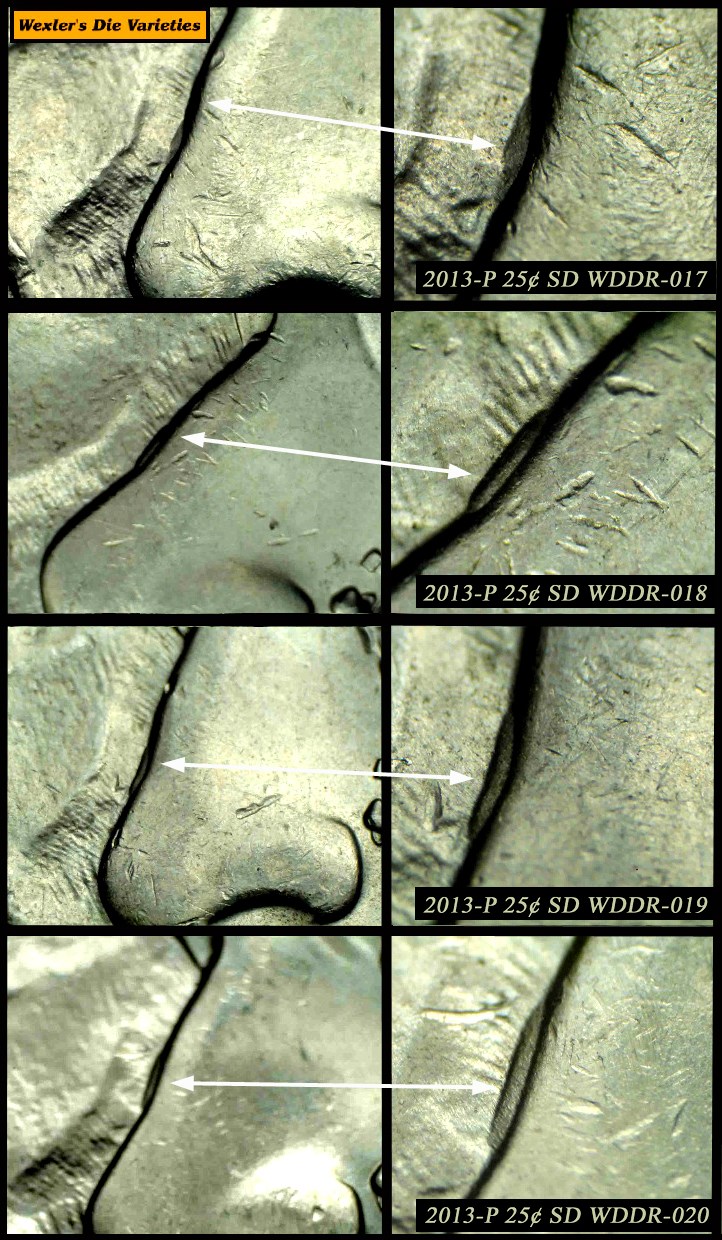

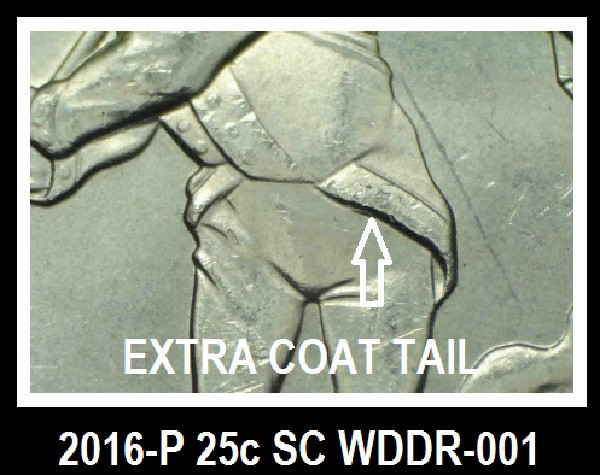

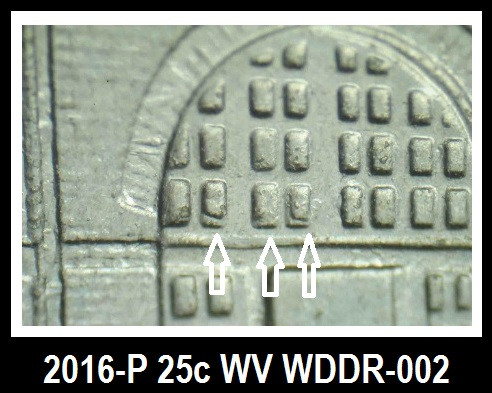

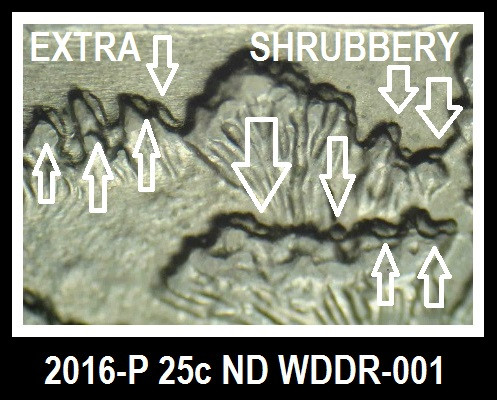

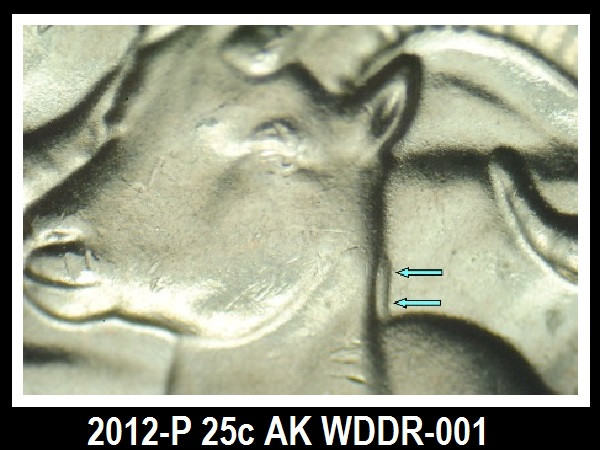

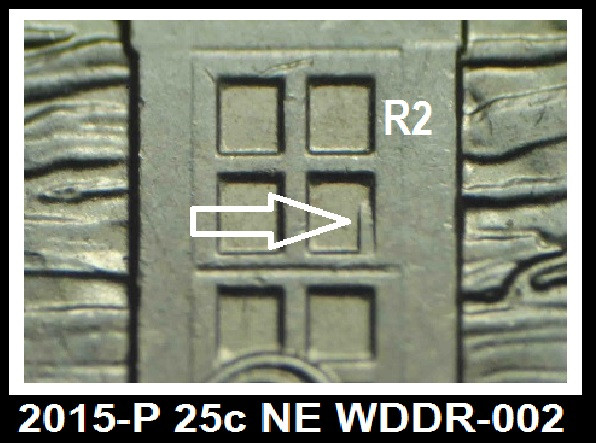

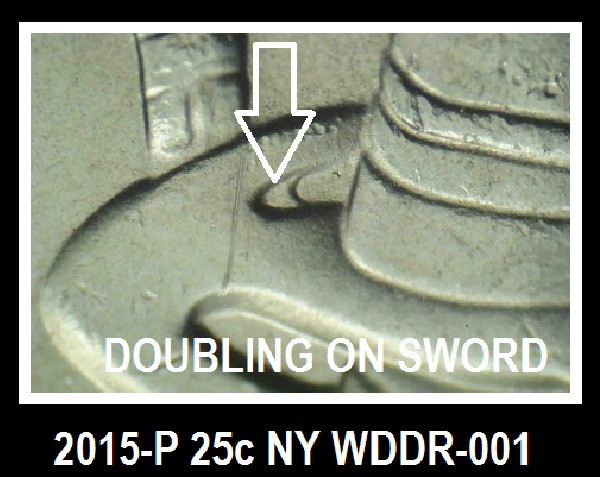

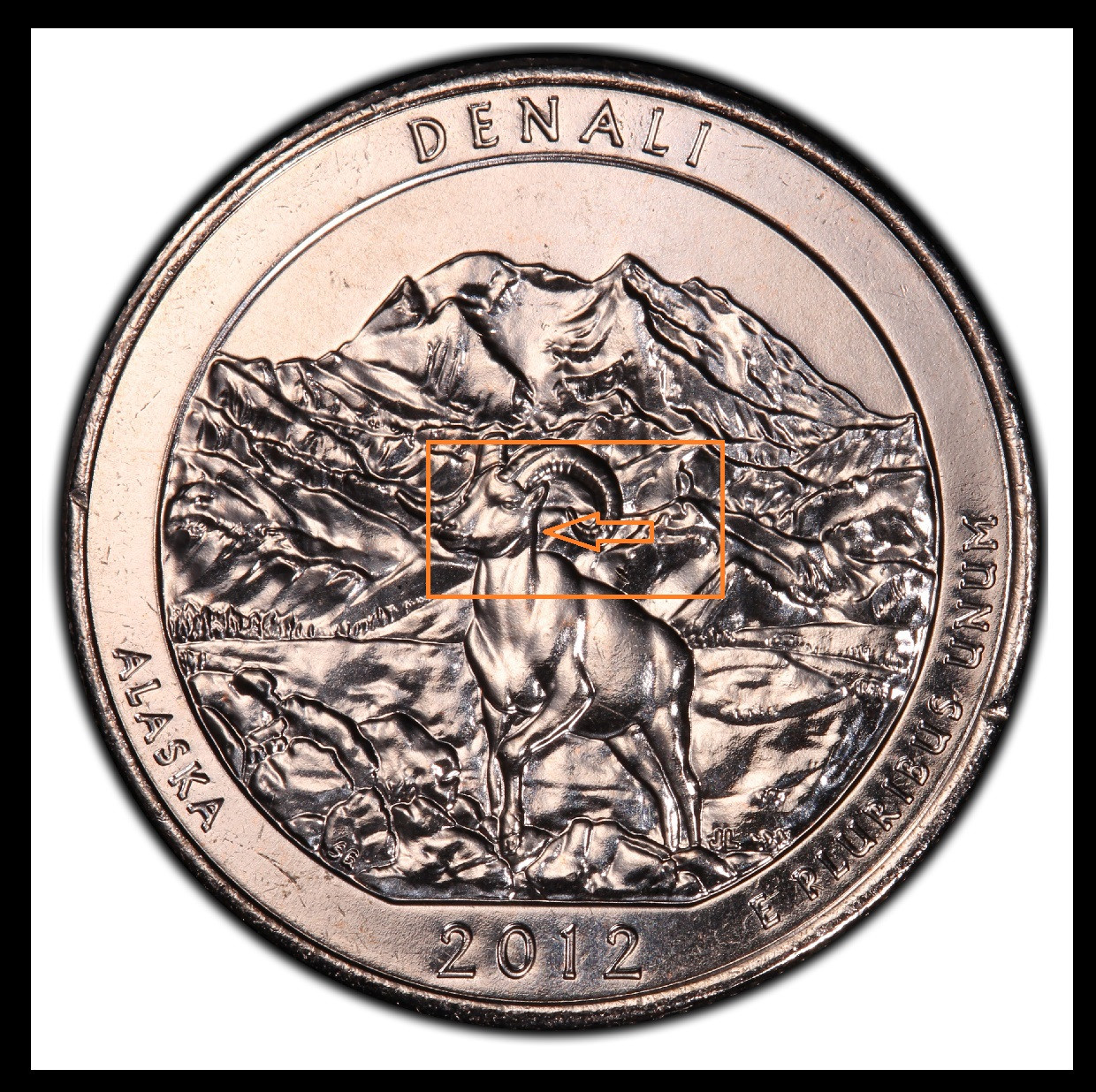

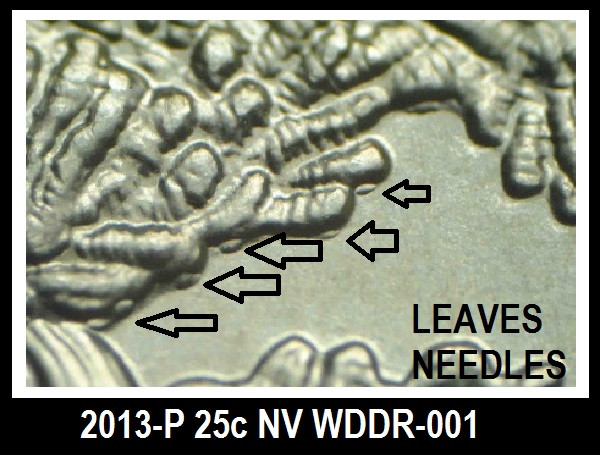

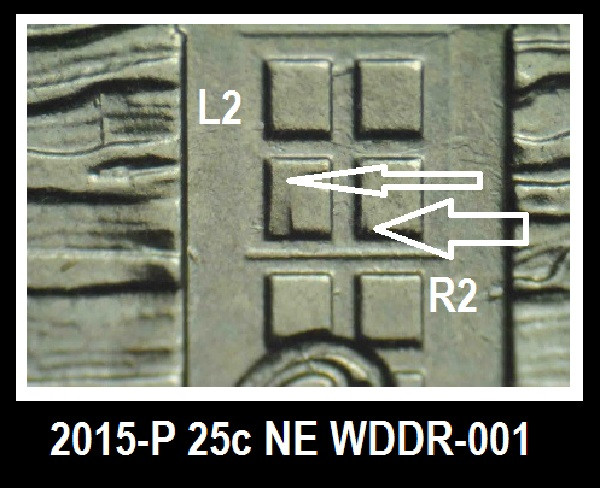

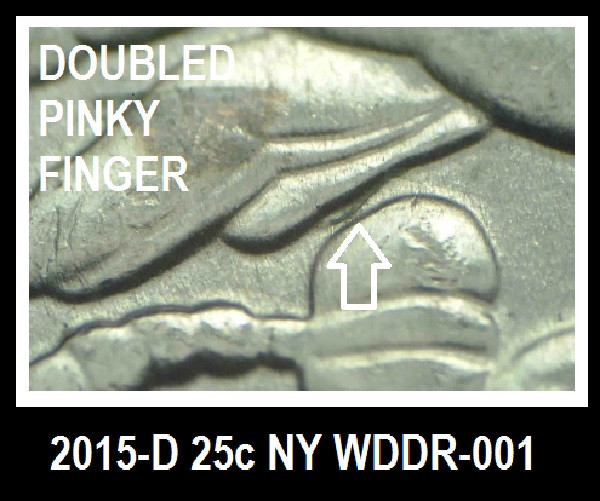

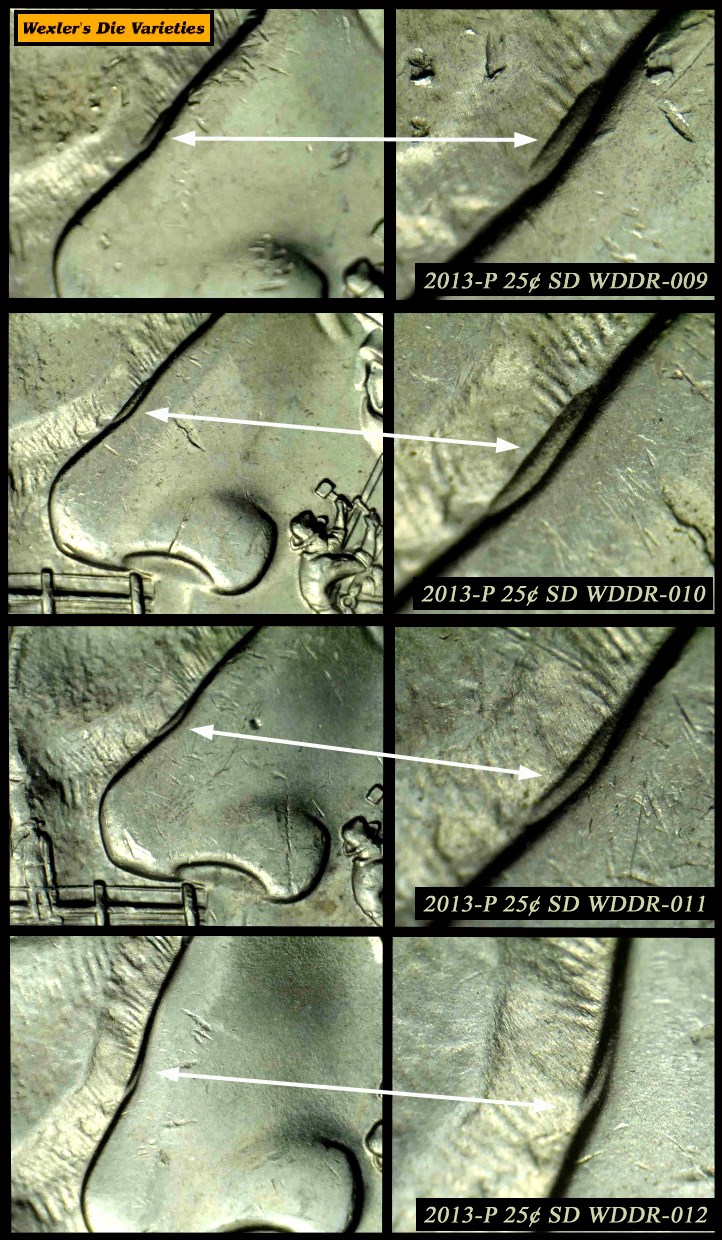

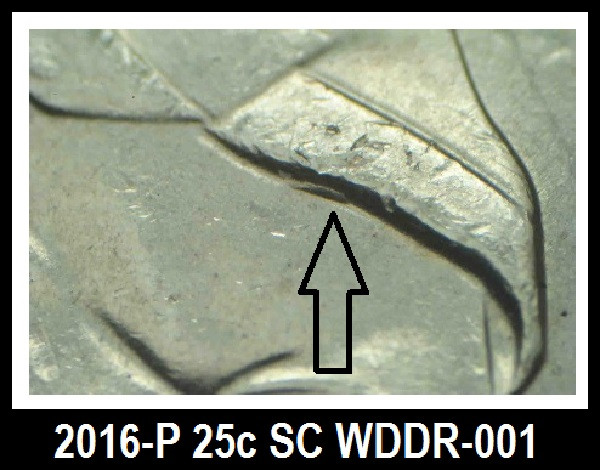

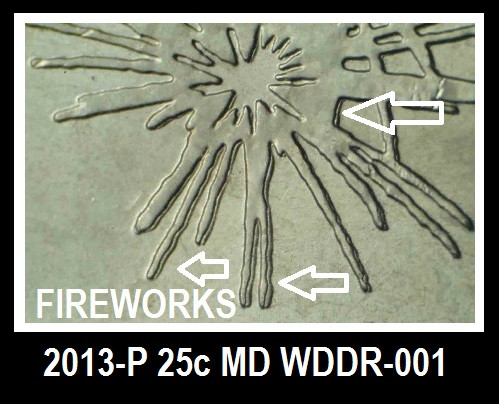

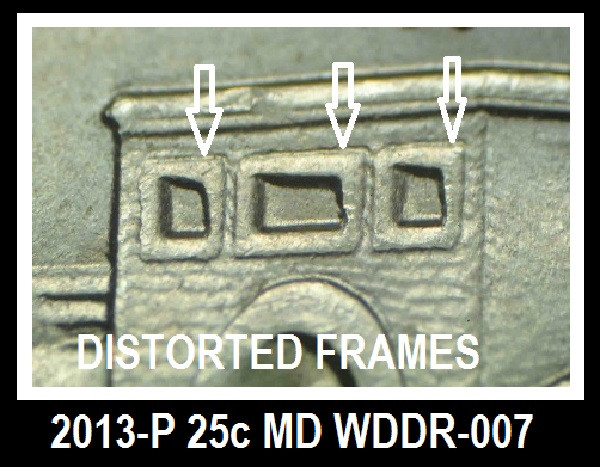

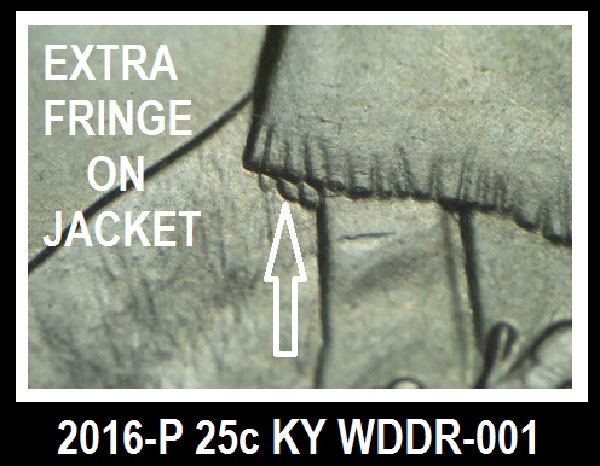

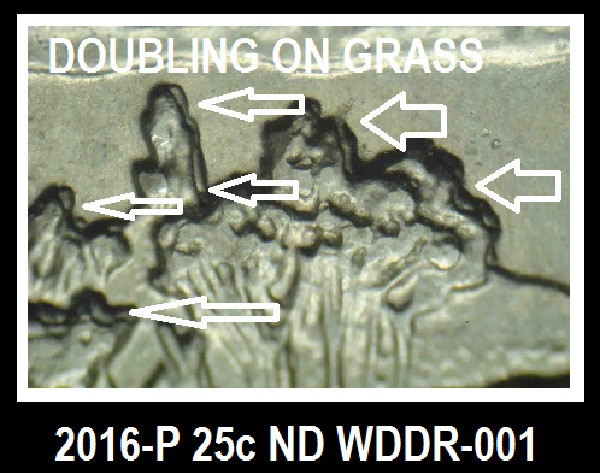

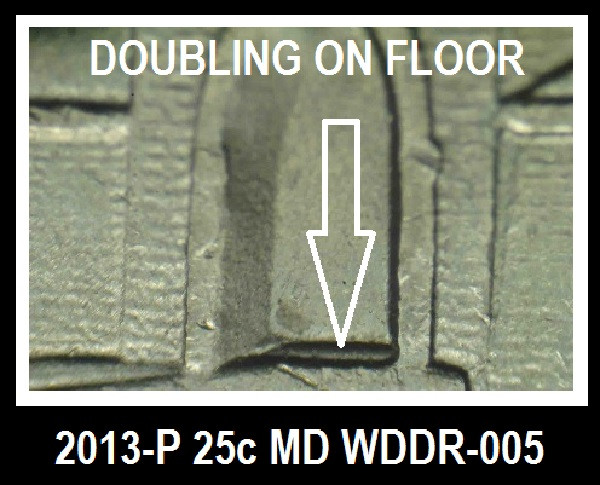

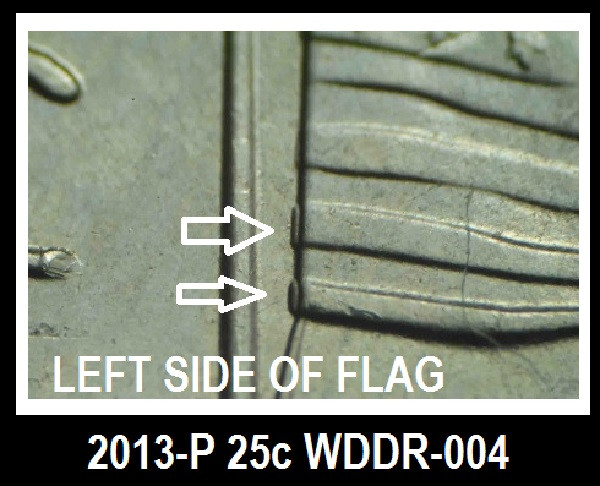

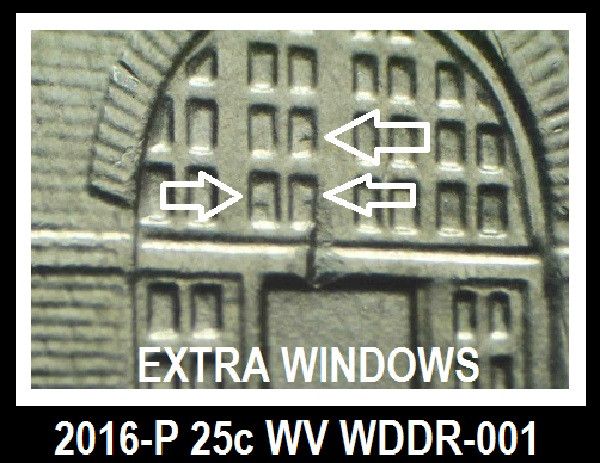

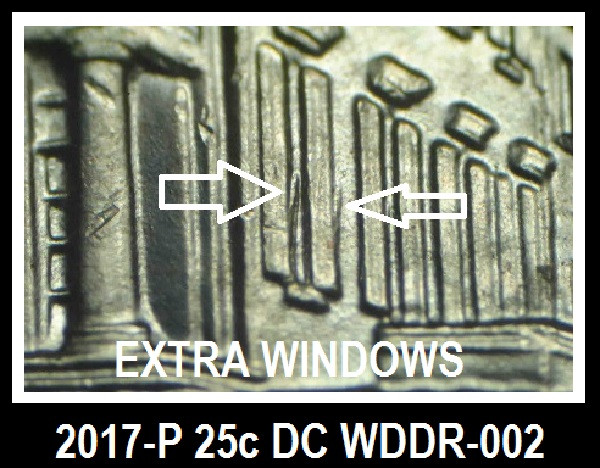

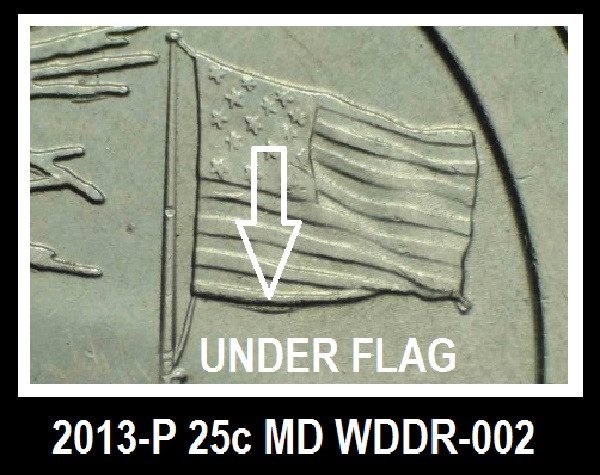

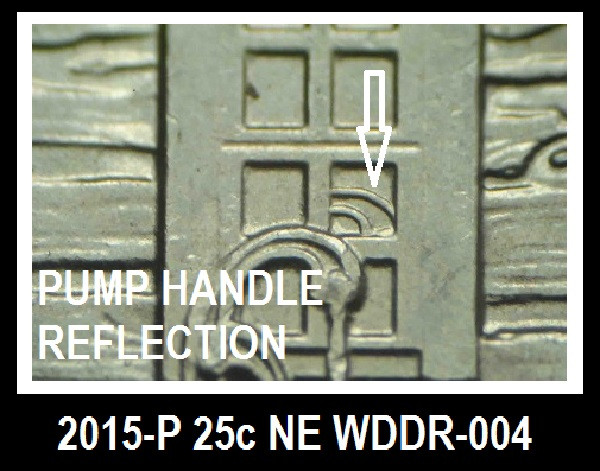

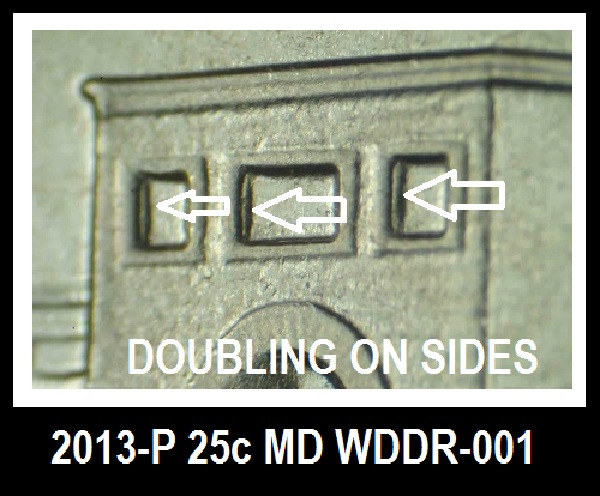

The reason I brought this up is that we normally starting looking at the outside edge devices. On these, forget that. The single squeeze dies are showing the hub doubling differently. You can find this on the areas near the center of the coin Class 9 doubled dies start sometimes with an improper alignment and then snaps into the right place. This move affects the dies. The devices near the center are often the ones affected and the other ones a normal as the die will correct during the hubbing. So, where do we look? Here is a few areas to check first: (All images from John Wexler)

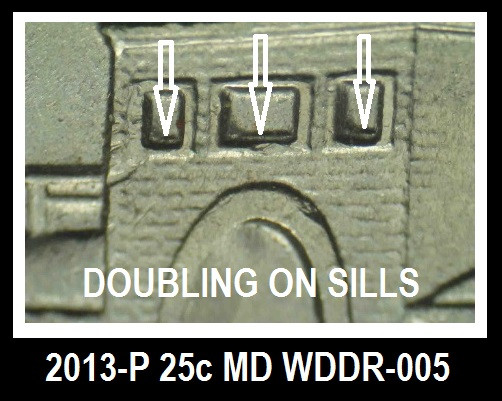

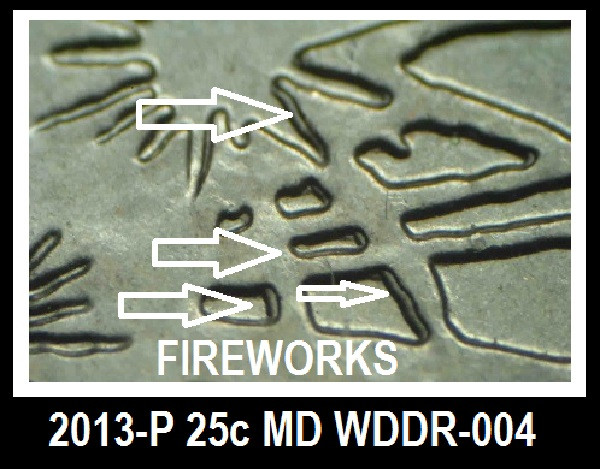

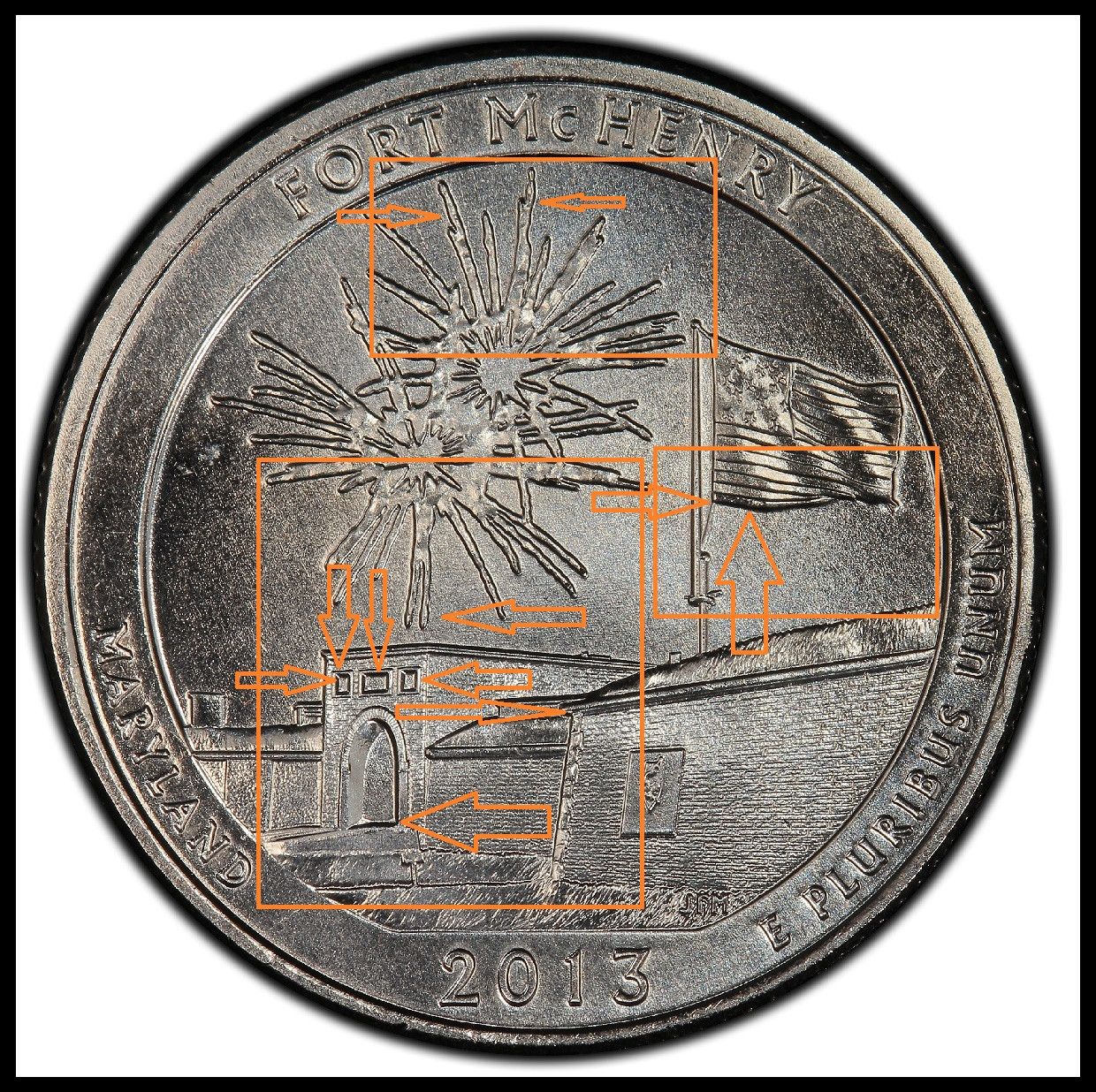

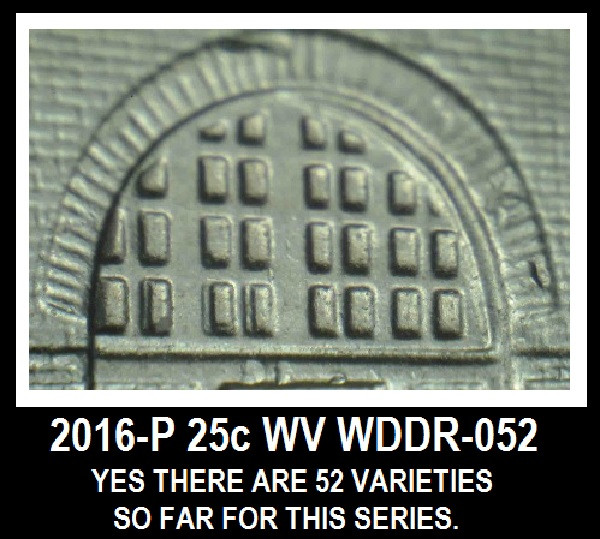

While this one looks like there are a lot of DDRs on it, there are some that have a lot more.

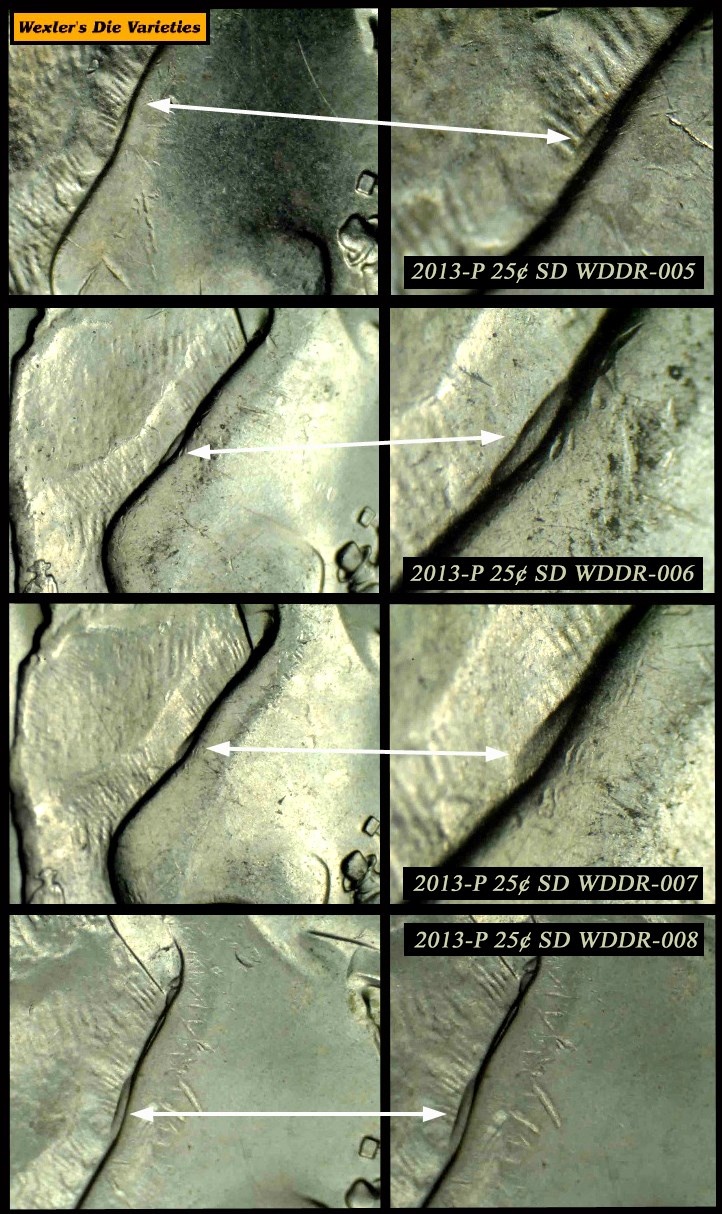

The homestead quarters are something you need to look up.

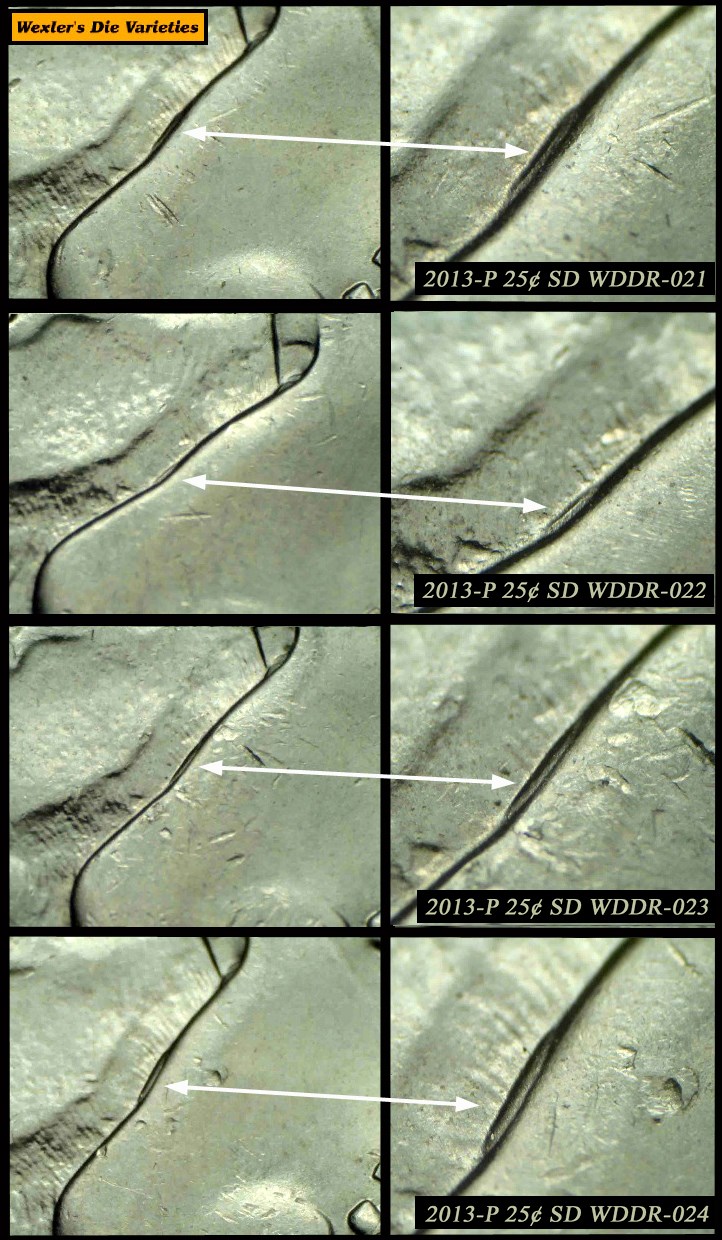

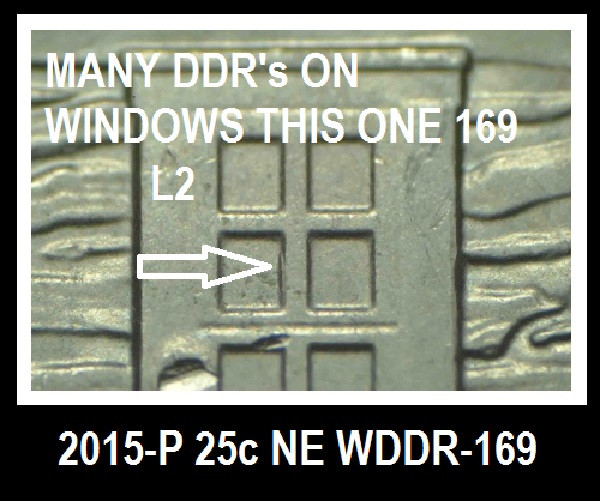

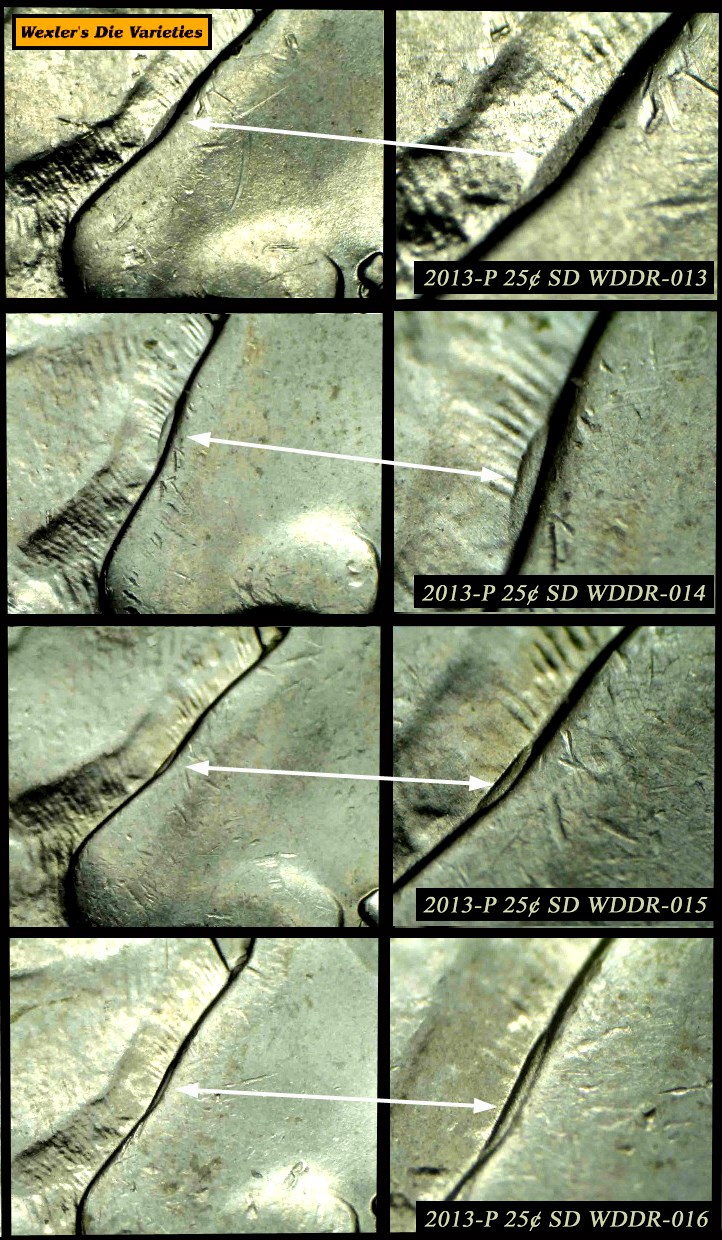

One hundred and sixty nine on just this one park alone. All pretty much in the same areas. All the others on different areas:







So when looking for DDRs on these, check John Wexlers site out to see what is out there. Where to look. On the obverse there is even a few quarters with the doubled ears also.

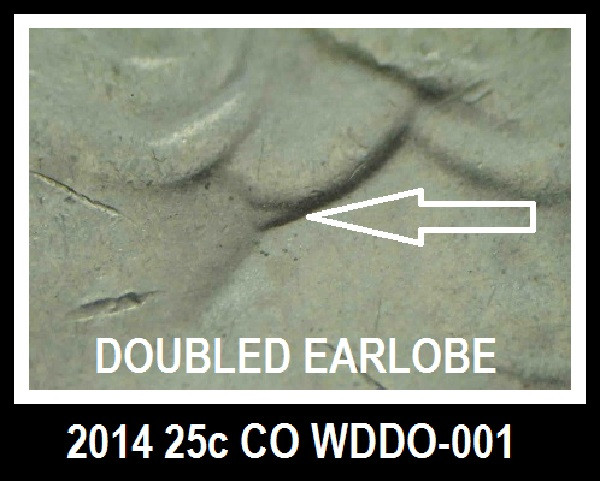

The doubled ear lobes was the only thing listed on the obverse of the quarters.


So you can stop checking for DDO's on these also. But who knows, you find something new? So I hope this helps on your searches for doubled dies on the ATB Quarter series. There is a lot more to check for on John's site.
http://doubleddie.com/719755.html
Richard S. Cooper
Some have asked about my images I use and I'm glad to say, you can now you can see the DVD in sections on youtube:
1. Intro, older coins, toned coins 2. Doubled dies 3. Die events, One of a kind errors 4. So called errors, Coin information 5. Coin information Types and Varieties, Overlays
Jefferson nickel doubled dies Wexler/Rebar complete listings

trail dies:http://www.traildies.com/
Edited by coop
03/08/2018 2:45 pm
Pillar of the Community
United States
5209 Posts
 Posted 03/08/2018  3:04 pm  Show Profile   Bookmark this reply Add Chase007 to your friends list Get a Link to this Reply
Thank you very much for this valuable presentation. your continued efforts to educate us is greatly appreciated.
Valued Member
United States
186 Posts
 Posted 03/08/2018  3:15 pm  Show Profile   Bookmark this reply Add Benja to your friends list Get a Link to this Reply
Denver is really good at not making doubled dies...
Pillar of the Community
United States
3018 Posts
 Posted 03/08/2018  3:18 pm  Show Profile   Check Tanman2001's eBay Listings Bookmark this reply Add Tanman2001 to your friends list Get a Link to this Reply
A very good guide to the ATB DDRs! I can see this being very helpful to a beginner.

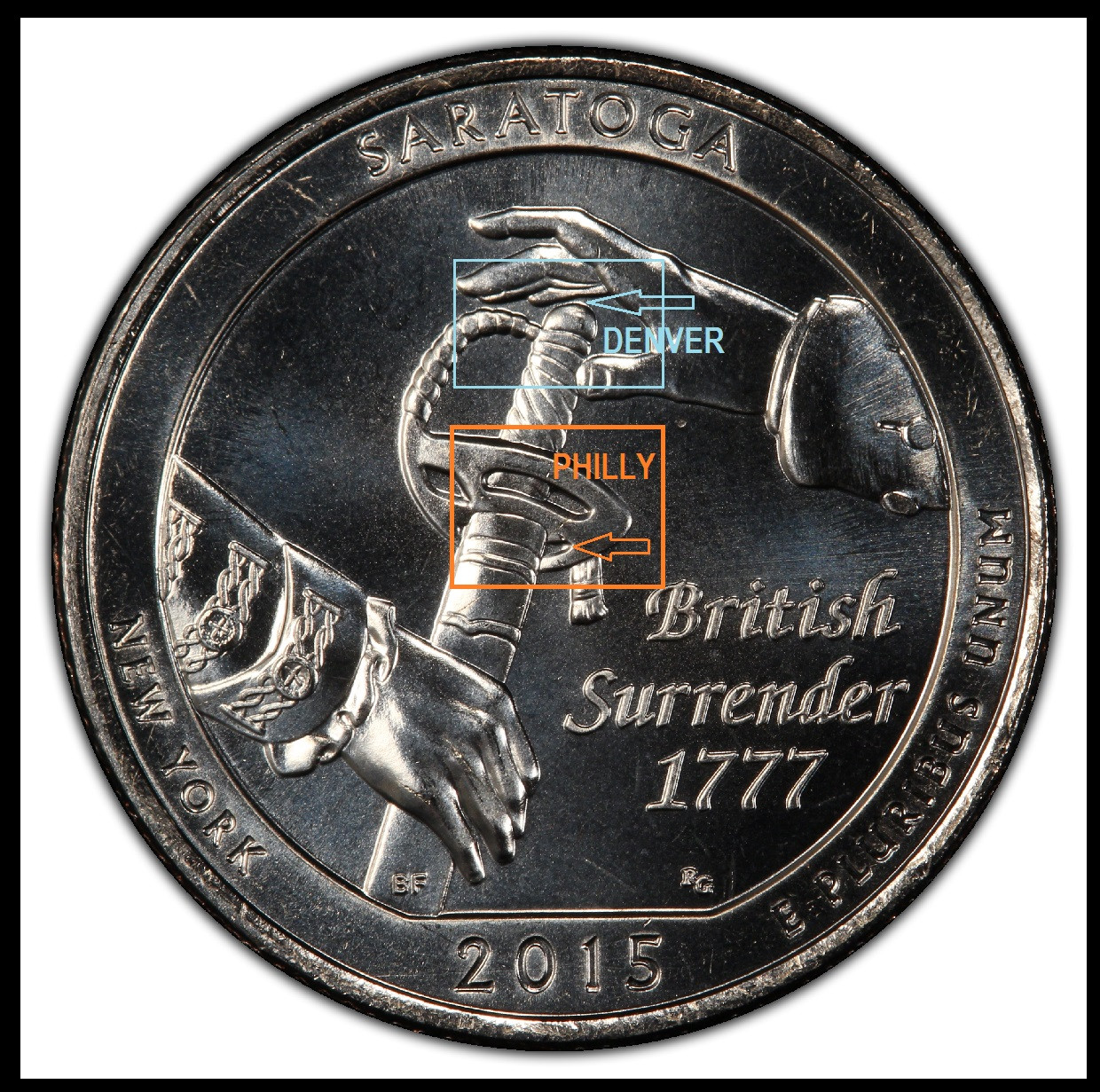

Also I'm just going to put my opinion out here about the Denver Saratoga doubled die. I highly doubt it is a true doubled die. Not only is it in a strange location for a single squeeze DD, typically they are either localized directly in the center of the coin or fairly widespread (like the Fort McHenry), but it is also in a location where die breaks are known to occur. I personally believe the 2015-D 25 NY WDDR-001 is more likely a die crack than a doubled die.
Pillar of the Community
United States
5964 Posts
 Posted 03/08/2018  5:09 pm  Show Profile   Bookmark this reply Add CoinMasters to your friends list Get a Link to this Reply
Very nice Coop! Thanks, I bookmarked this one.
Bedrock of the Community
Learn More...
United States
46699 Posts
 Posted 03/08/2018  10:59 pm  Show Profile   Bookmark this reply Add coop to your friends list Get a Link to this Reply
After viewing the site for these, I soon realized how many there were, how I didn't even realize what to look for. So thus all the extra information to include about where to look. I just realized I didn't answer the second question. Where not to look. This seemed un-necessary when writing this thread. But the quick answer is this: "Not where you would normally look for a DDR on the multi hubbed dies." Forget looking around the outside devices, and concentrate on the central areas of the coins.

Now what? Cents, Nickels and Dimes?
Richard S. Cooper
Some have asked about my images I use and I'm glad to say, you can now you can see the DVD in sections on youtube:
1. Intro, older coins, toned coins 2. Doubled dies 3. Die events, One of a kind errors 4. So called errors, Coin information 5. Coin information Types and Varieties, Overlays
Jefferson nickel doubled dies Wexler/Rebar complete listings

trail dies:http://www.traildies.com/
Pillar of the Community
United States
5964 Posts
 Posted 03/09/2018  10:35 am  Show Profile   Bookmark this reply Add CoinMasters to your friends list Get a Link to this Reply
Shield Cents please, or modern nickels. With separate threads.
Edited by CoinMasters
03/09/2018 10:36 am
Bedrock of the Community
Learn More...
United States
46699 Posts
 Posted 03/09/2018  8:34 pm  Show Profile   Bookmark this reply Add coop to your friends list Get a Link to this Reply
Starting on Memorial cents. Will get to the others ASAP.
Richard S. Cooper
Some have asked about my images I use and I'm glad to say, you can now you can see the DVD in sections on youtube:
1. Intro, older coins, toned coins 2. Doubled dies 3. Die events, One of a kind errors 4. So called errors, Coin information 5. Coin information Types and Varieties, Overlays
Jefferson nickel doubled dies Wexler/Rebar complete listings

trail dies:http://www.traildies.com/
Pillar of the Community
United States
2159 Posts
 Posted 03/09/2018  9:20 pm  Show Profile   Bookmark this reply Add Tunnioc to your friends list Get a Link to this Reply
May I suggest WAMS and CAMS, you da man coop
Bedrock of the Community
Learn More...
United States
46699 Posts
 Posted 03/10/2018  2:12 pm  Show Profile   Bookmark this reply Add coop to your friends list Get a Link to this Reply
coophome= ATB Quarters
Richard S. Cooper
Some have asked about my images I use and I'm glad to say, you can now you can see the DVD in sections on youtube:
1. Intro, older coins, toned coins 2. Doubled dies 3. Die events, One of a kind errors 4. So called errors, Coin information 5. Coin information Types and Varieties, Overlays
Jefferson nickel doubled dies Wexler/Rebar complete listings

trail dies:http://www.traildies.com/
Valued Member
424 Posts
 Posted 11/25/2018  7:40 pm  Show Profile   Bookmark this reply Add TJLang to your friends list Get a Link to this Reply
I just happened across this again.
Just what I needed. Is there one for all fifty State Quarters?
Bedrock of the Community
Learn More...
United States
46699 Posts
 Posted 11/25/2018  8:00 pm  Show Profile   Bookmark this reply Add coop to your friends list Get a Link to this Reply
Wexler's site show them:
50 States quarters:
http://www.doubleddie.com/179401.html
This will help you to where to look for doubled dies. On what areas. Look at what is posted, then look on these areas


Quote:
In 2009 the United States Mint issued 6 quarters to honor the District of Columbia and the 5 U.S. Territories. These territories include: The Commonwealth of Puerto Rico, Guam, American Samoa, The U.S. Virgin Islands, and the Northern Mariana Islands.

http://www.doubleddie.com/228464.html

ATB quarters:

http://www.doubleddie.com/719755.html
Richard S. Cooper
Some have asked about my images I use and I'm glad to say, you can now you can see the DVD in sections on youtube:
1. Intro, older coins, toned coins 2. Doubled dies 3. Die events, One of a kind errors 4. So called errors, Coin information 5. Coin information Types and Varieties, Overlays
Jefferson nickel doubled dies Wexler/Rebar complete listings

trail dies:http://www.traildies.com/
Pillar of the Community
Learn More...
United States
1555 Posts
 Posted 11/28/2018  9:30 pm  Show Profile   Bookmark this reply Add fortcollins to your friends list Get a Link to this Reply
Excellent research and presentation, and as always very helpful. Your photos are incredible.
Bedrock of the Community
26893 Posts
 Posted 11/28/2018  9:51 pm  Show Profile   Bookmark this reply Add Errers and Varietys to your friends list Get a Link to this Reply
I bookmarked this topic, so I can look back at it, if I need to. Thank you very much for updating this thread Coop! It's definitely a very important thread that should never be forgotten.
