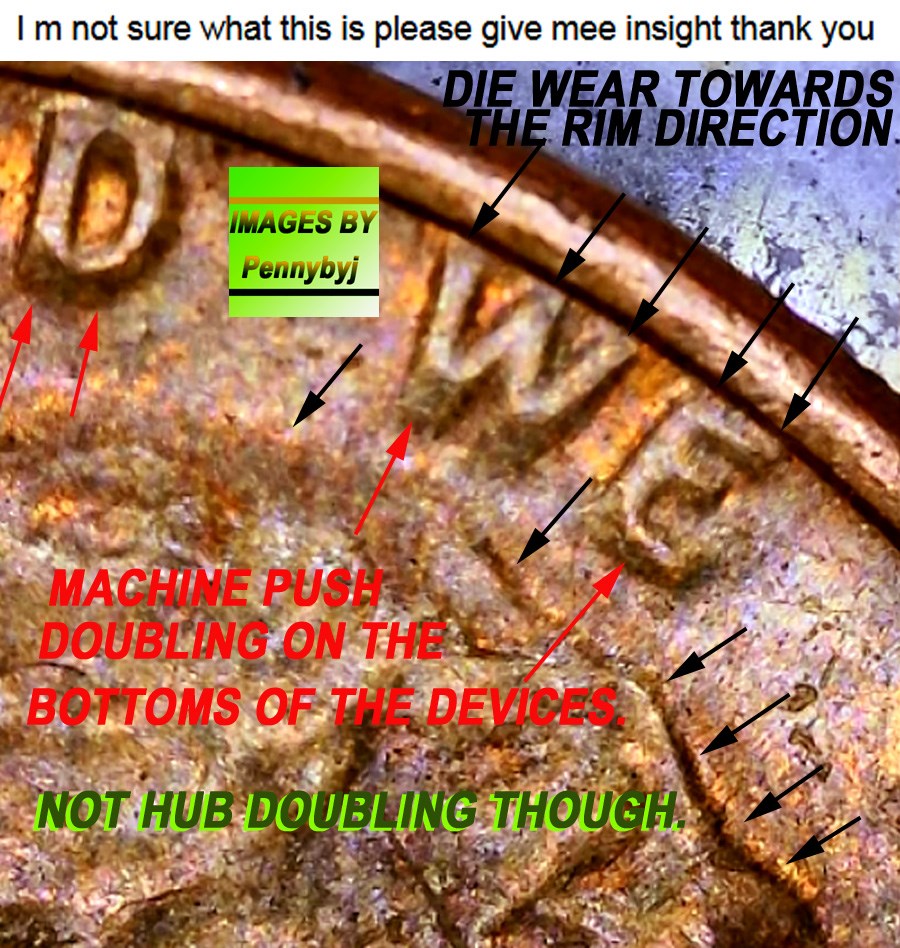

Here is more images of the motto with Machine Doubling
and die wear

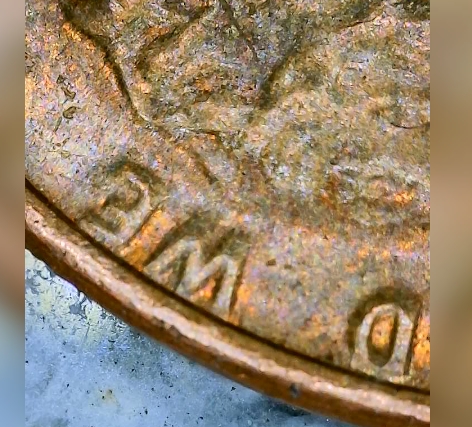

Note the Machine Doubling
with the 10:00-11:00 areas.

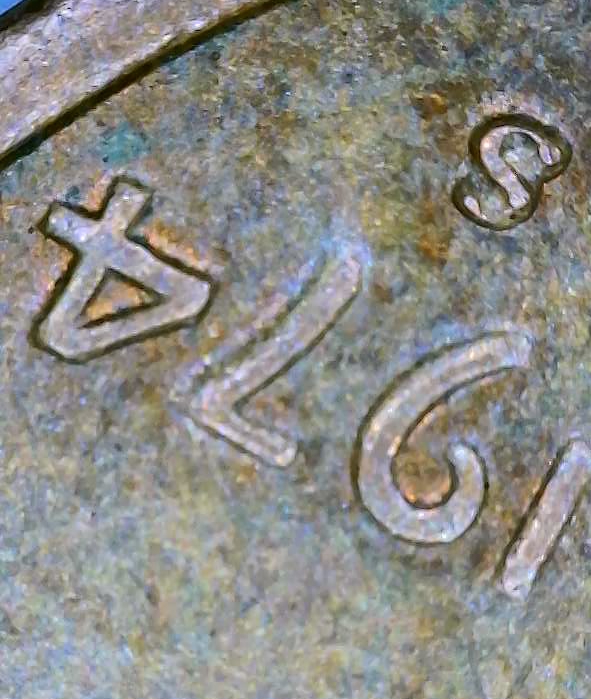

Another set of Machine Doubling
on the devices that are stronger. Note how the MD pushes aside the devices, removing the contour on that side of the device.
Note how the tops of the devices were reduced. When you look at the full devices, you can see where these devices have been reduced in size. The tops of the devices altered.

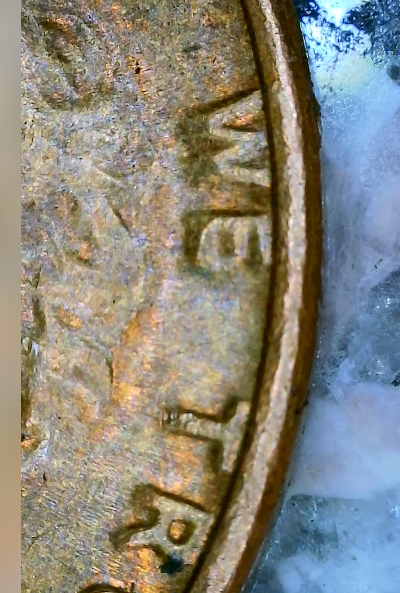

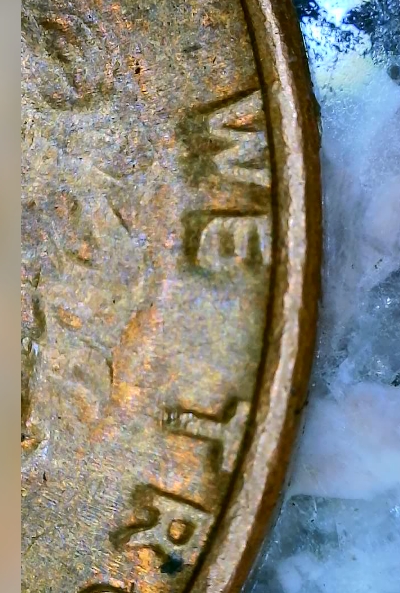

Here are some examples of push doubling. The Machine Doubling
now larger than the normal size of the devices.
Note how the devices remind you of moving like peanut butter. A bounce caused this to happen very quickly because of the swing.
Thus note on your devices the swing arc of the MD pushing the devices in a non normal direction:

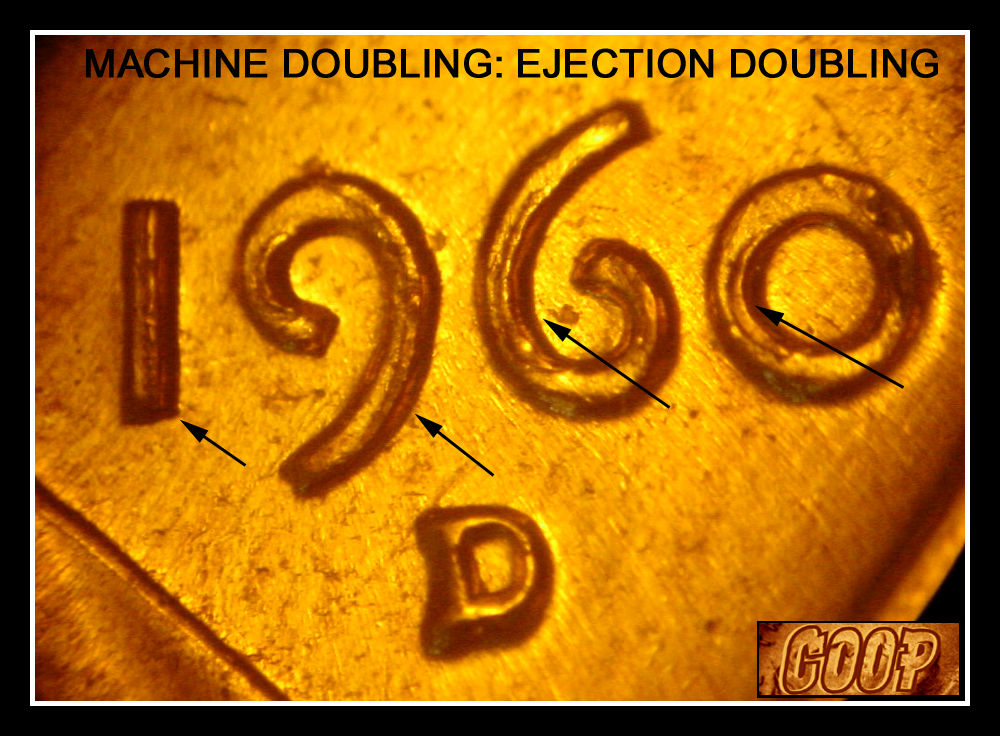

The other types of MD we call classic Machine Doubling
. Anything the machine alters is called machine doubling/push/ejection doubling.
Whether it is hit by the dies, or during ejection of the dies, it was caused by the machine, and falls under term "Machine doubling." I just add the other term to differ the different types. CoopHome
: Are there different types of Machine Doubling?
