| Author |
Replies: 8 / Views: 2,050 |
|
|
Pillar of the Community
United States
1781 Posts |

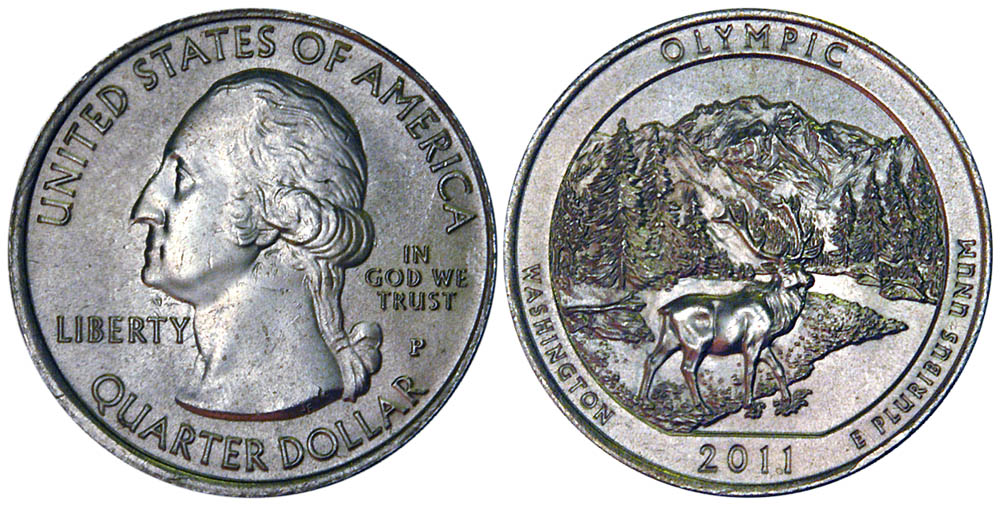

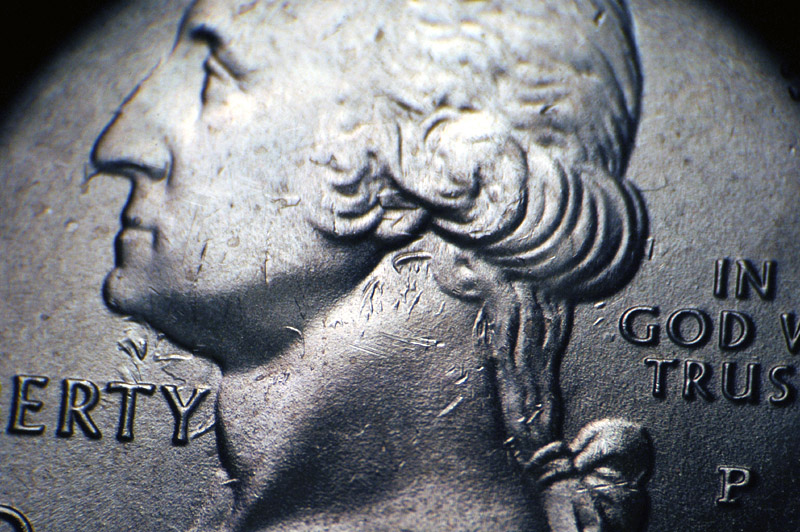

You can see clash marks all over the obverse in the fields and throughout Washington's portrait that represent many of the low points of the reverse motif "clashed" into the obverse with the strongest marks below Washington's chin and ear. What is perhaps educational about this coin is that the fact that reverse shows no signs of a clash, which demonstrates that sometimes clash marks do not transfer to both dies during a clash due to the geometry of one or the other die's design or the fact that sometimes the Mint catches the clash on just one die, replaces it and lets the other continue in use. Die clashes are the result of a failure of a feeder system to deposit a planchet between the dies during a press cycle. When this occurs the dies clash or smash into each other imparting some of each die's design into the opposing die to a greater or lesser degree. In general, clashed die varieties do not attract the same kind of interest on modern coins that Doubled Dies, Repunched Mintmarks, Overdates, etc. do. However they are a lot of fun to find and collect even if they aren't as heavily promoted and cataloged as the more popular variety types. Nonetheless, that could be changing. Interest does seem to be growing in this area, albeit slow but steady. One group of collectors who may eventually put the stronger and more radical die clashes on the map are the folks that run a relatively new website dedicated to clashed dies here: http://www.maddieclashes.com. Both coins featured here were submitted by Bill Gladden of Michigan who found several of each of them in original rolls. See my comments on the Hayes dollar in my previous post.
|
|
|
|
Bedrock of the Community
United States
62064 Posts |
Sometimes the opposite die is replaced, and a new die marriage happens.
|
|
Pillar of the Community
 United States
1781 Posts |
Coop, yep I mentioned above but I guess it's lost in the all the verbiage.
Edited by koinpro 05/11/2015 12:00 am
|
|
Valued Member
United States
90 Posts |
I have been collecting coin errors and variety for about a year and have learned so much from reading posts from this site, looking for error comes easy if you know what to look for and how they are created. Thanks! koinpro and coop.
|
|
Bedrock of the Community
United States
62064 Posts |
|
|
Pillar of the Community
 United States
1781 Posts |
Coop, you just love making those overlays don't you. Thanks!
|
|
Bedrock of the Community
United States
62064 Posts |
They help show what could happen. Sometimes one die can rotate during the clash and a few coins sill show this rotation. So It is not an exact science. But it gives a ball park idea of what were are seeing on a clashed die coin.
|
|
Pillar of the Community
 United States
1781 Posts |
Coop, this 1862 3c Ag is one you'll like. Click Image To Enlarge
|
|
Bedrock of the Community
United States
62064 Posts |

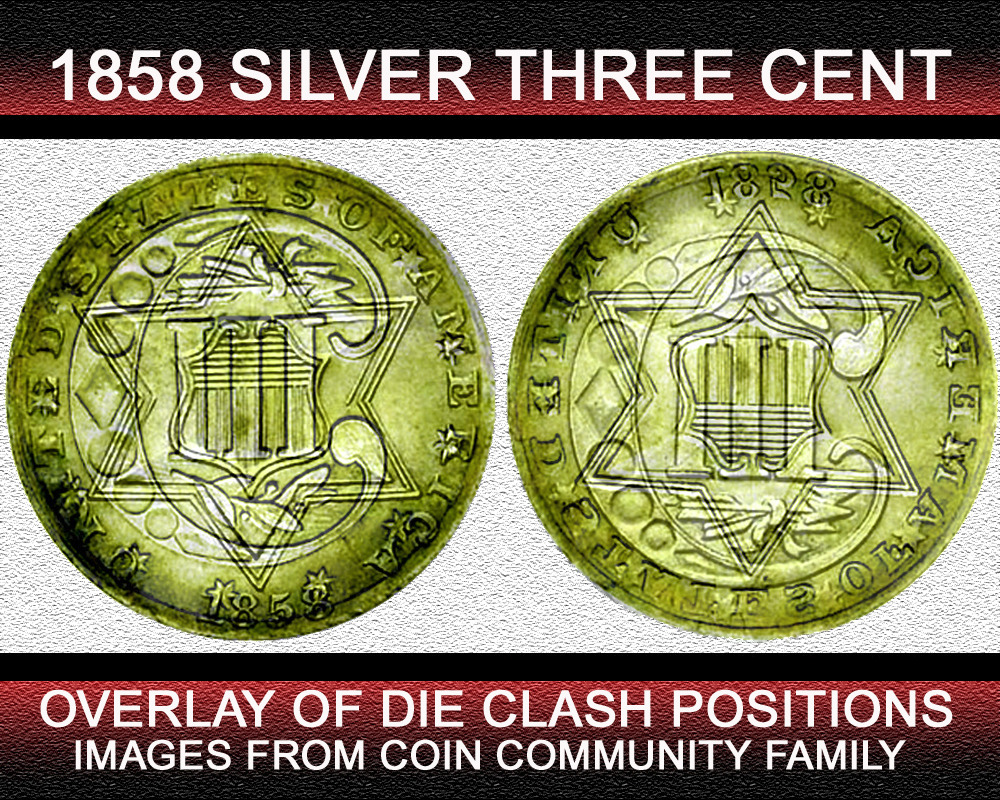

Those are nice Ken. I like the Three Cent Silver best. (not much of a fan of Morgan/Peace dollars.   Ken: I made the rotation of the clash like your coin position:  Here is a normal die setup for a clash:
Edited by coop 05/11/2015 1:50 pm
|
| |
