| Author |
 Replies: 9 / Views: 1,313 |
|
|
Valued Member
United States
57 Posts |
|
|
|
|
Rest in Peace
10197 Posts |

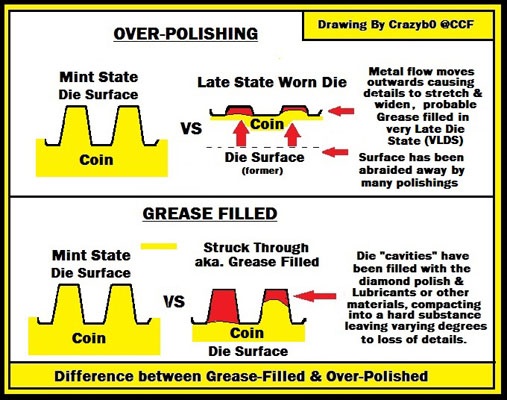

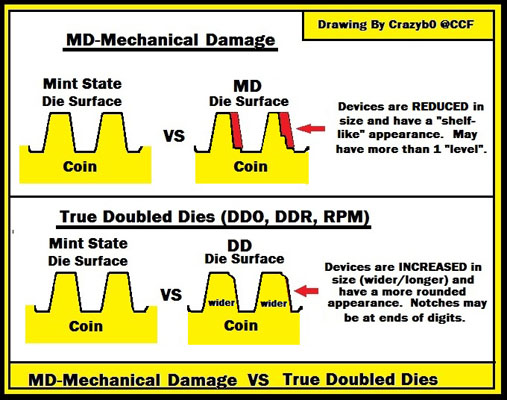

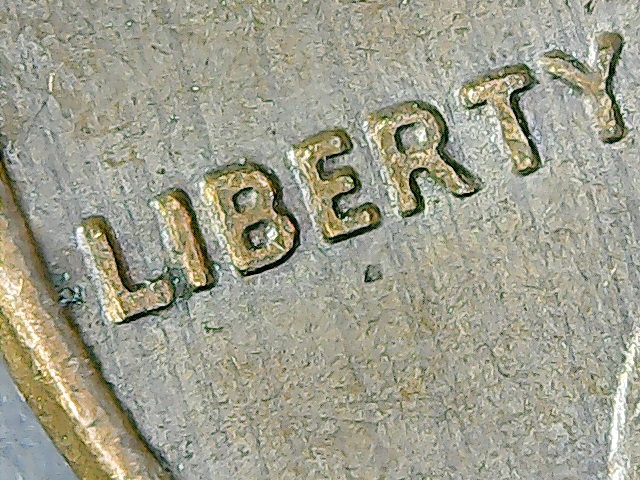

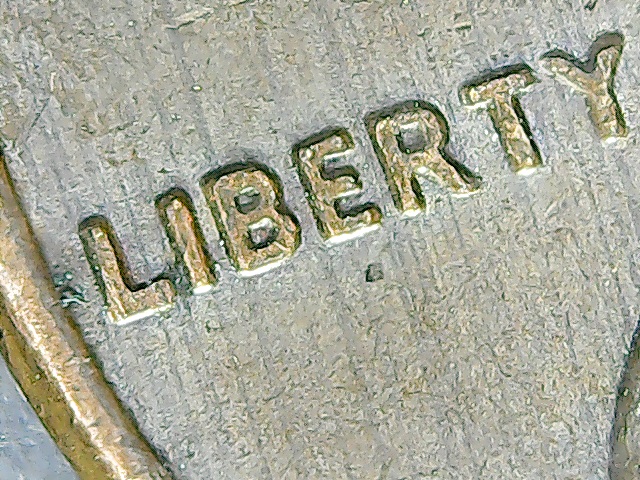

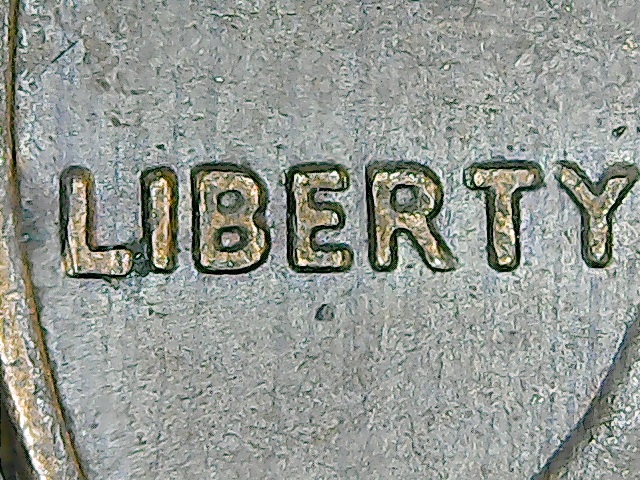

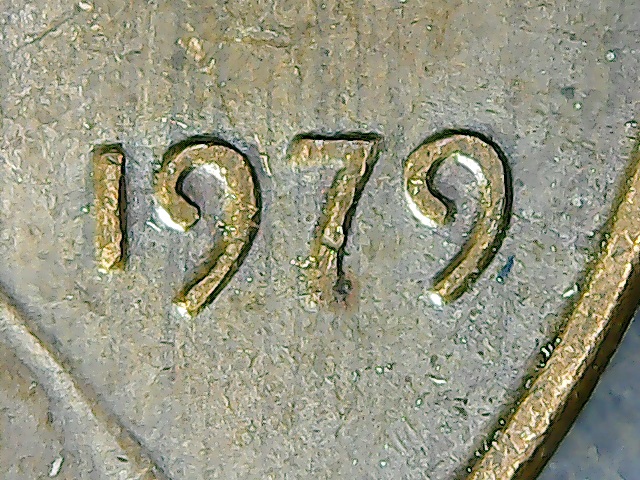

Hello again Artstaz! The reverse is shelving MD, The obverse is besides the obvious damage is a very worn die state called Die Deterioration. Just spent the past two days trying to make some write-ups on MD, Doubled dies, Die wear...you can be the first to see if it helps you or not!    See if any of this helps, I have more  |
|
Pillar of the Community
United States
5964 Posts |
Sorry, it's MD. If you look at the top left of the T, you will see where the doubling reduced the horizontal bar. If it was a Doubled Die, the doubling would have been in addition (increased the length of the bar).
|
|
Pillar of the Community
United States
900 Posts |
|
|
Valued Member
 United States
57 Posts |
Thank you both. I will keep this for reference Crazy. This will truly help. I guess I was a little confused between shelving on a double strike verses MD? I thought for sure the reverse look to me like a double strike, but I guess not...  I will keep searching hoping for the first. With the tools that have been given to me, I will use them wisely. Thanks again to both of you. |
|
Bedrock of the Community
 United States
12477 Posts |

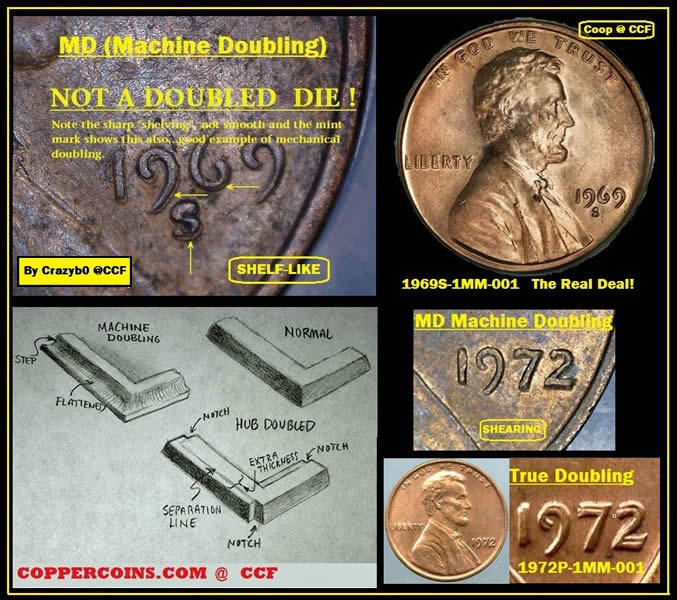

Definitely keep searching!  That sketch concerning the difference between normal, Machine Doubling and hub doubling (doubled die) is one I saved a while back from an old thread here (I believe a CCF member made it). It's a very good representation of what the differences are and even how each is created. Nice work, Crazyb0! I can't keep up with you folks using actual computers with peripherals to create graphics like that. In Memory of Crazyb0 12-26-1951 to 7-27-2020
In Memory of Tootallious 3-31-1964 to 4-15-2020
In Memory of T-BOP 10-12-1949 to 1-19-2024
|
|
Pillar of the Community
United States
5964 Posts |

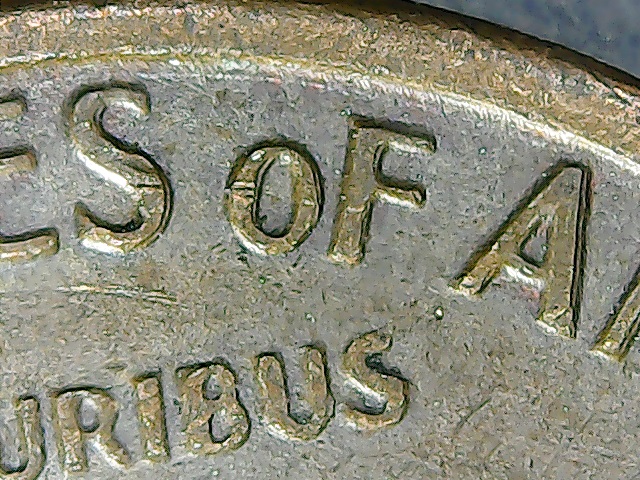

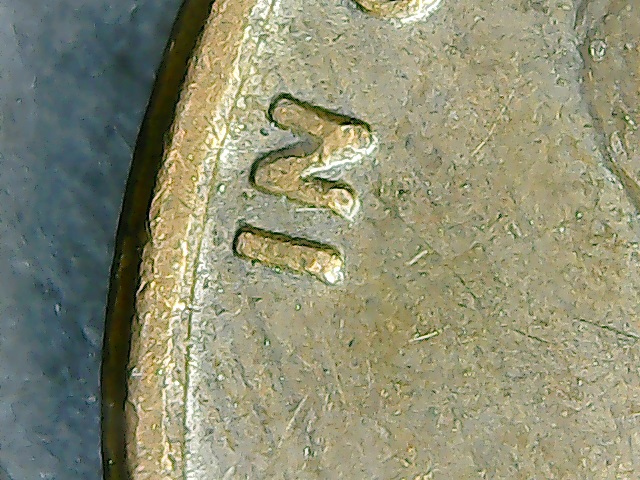

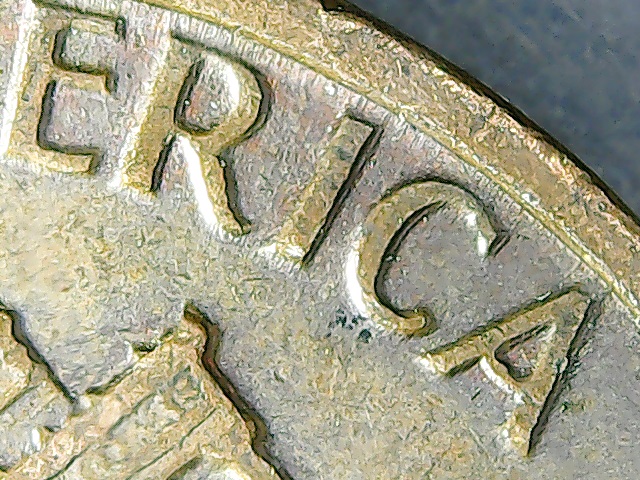

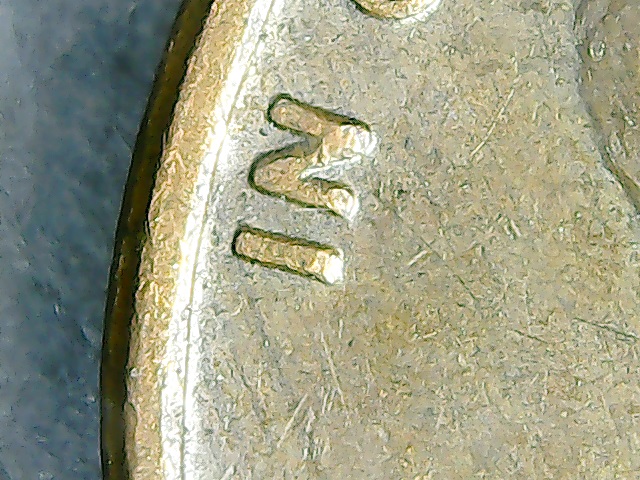

Actually the reverse is Strike Doubled (MD). It's flat and shelf-like. Ocala-Fla, use to use that sketch. I may have misspelled his name.
|
|
Rest in Peace
10197 Posts |
Coin masters, drawing was done by Chuck Daughtrey of coppercoins.com in 2013 or 2014. Angular perception really does convey the message!
|
|
Pillar of the Community
United States
3058 Posts |
|
|
Pillar of the Community
United States
5964 Posts |
I noticed you'd credited it to CopperCoins. He posted it a few times with no credits, so I figured it was his. I liked it too, and asked him if I could use it sometime. He didn't answer, so I thought that meant no or he didn't see my question.
Daughtrey huh... multi talented man I guess.
|
| |
Replies: 9 / Views: 1,313 |
|
Posted 06/20/2017 11:13 pm
