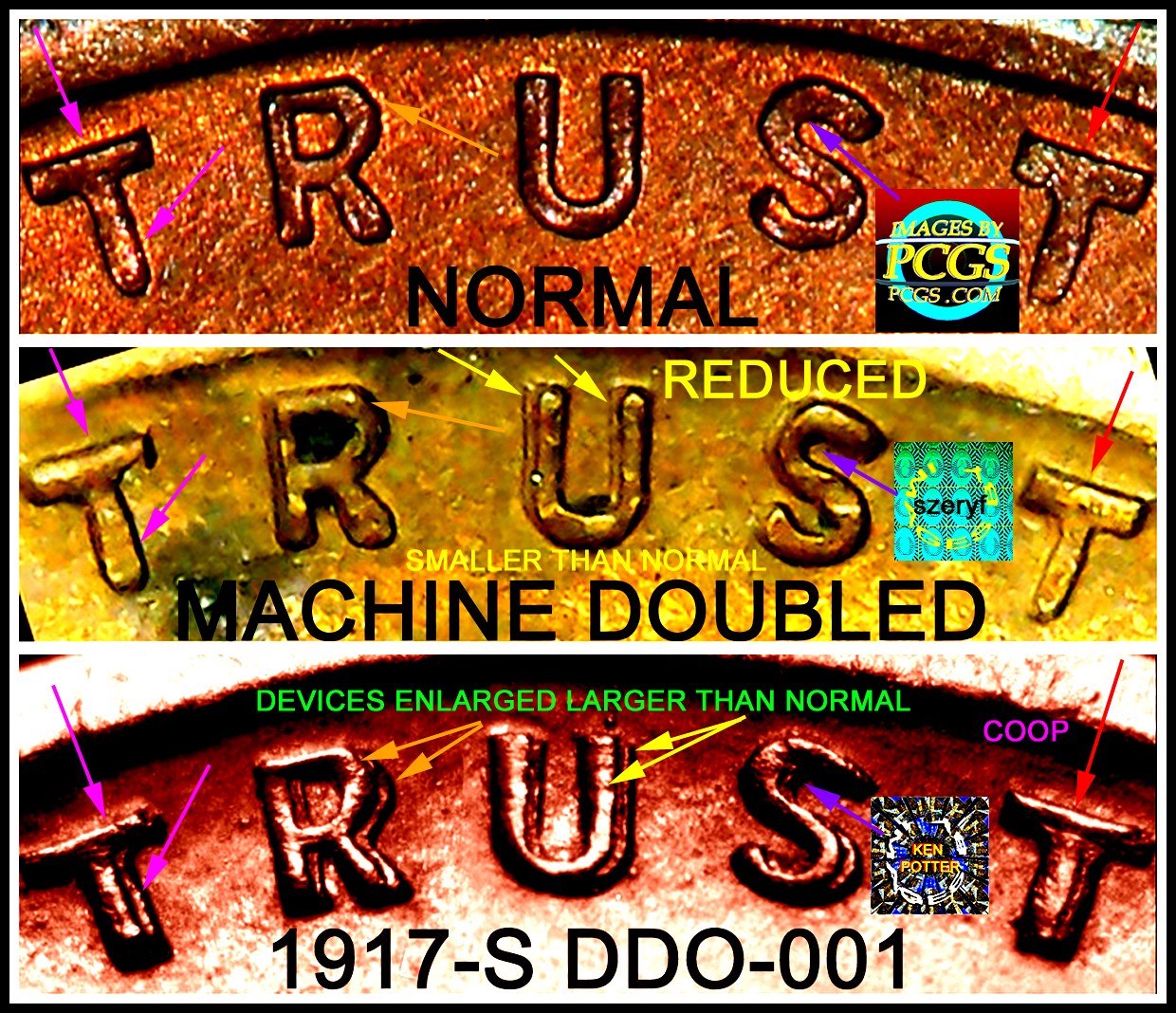

Note on a doubled die, the devices are wider:

The MD is showing you a reduction of the normal devices. (smaller than normal) On a doubled die, the doubling is on the die, showing a spread on the devices. On
Machine Doubling it is a reduction of the dies devices, whether normal or a doubled die.
