So recently ive been trying to be able to tell how much something is off centered. I see some people have already the know how to do that and wanted to know how I can too... Thanks...
|
|
|
|
Bedrock of the Community
United States
62064 Posts |

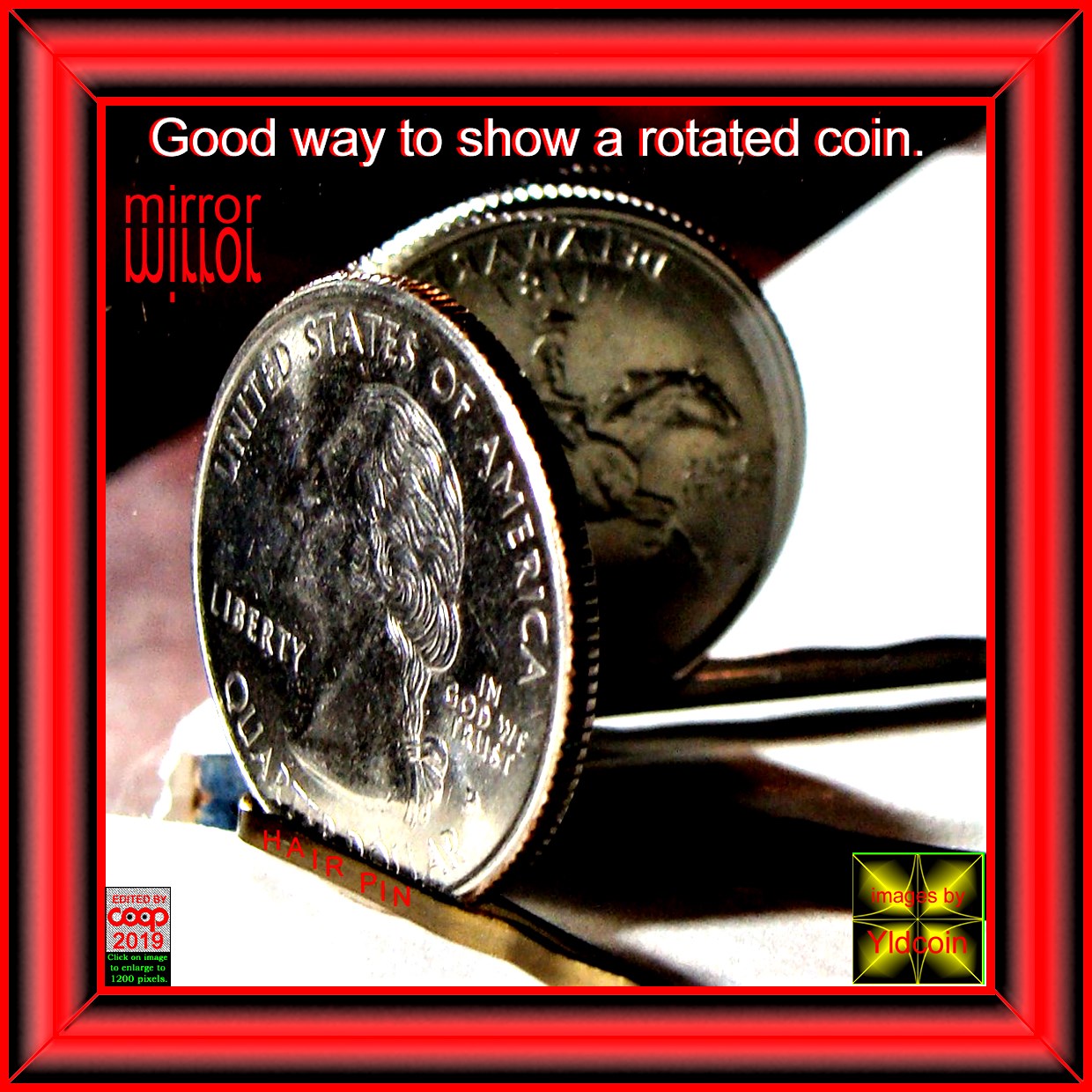

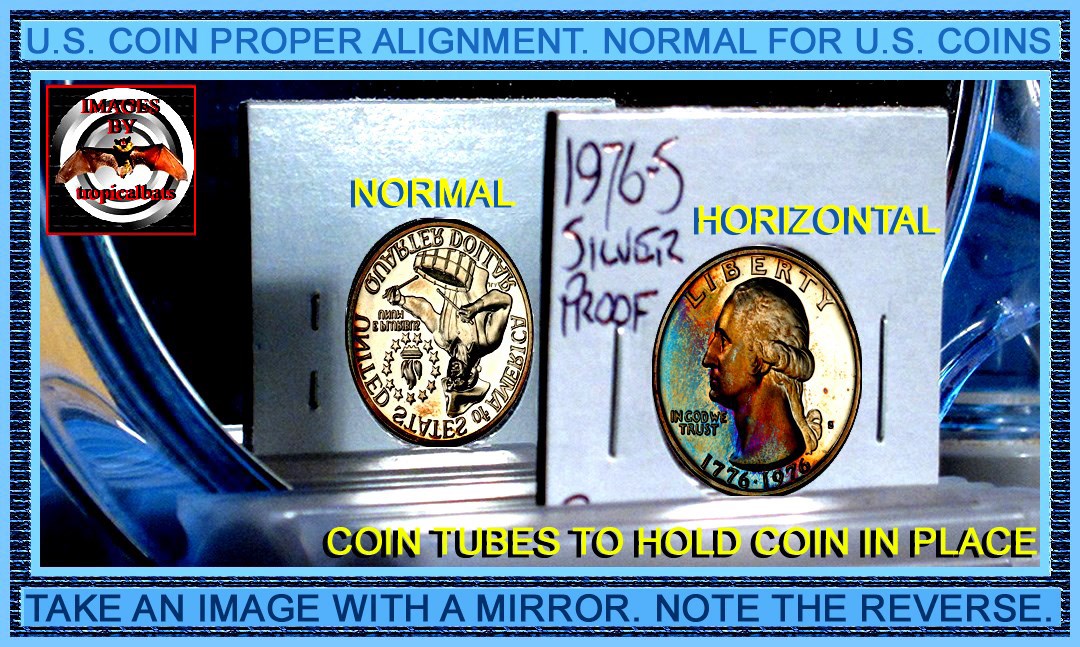

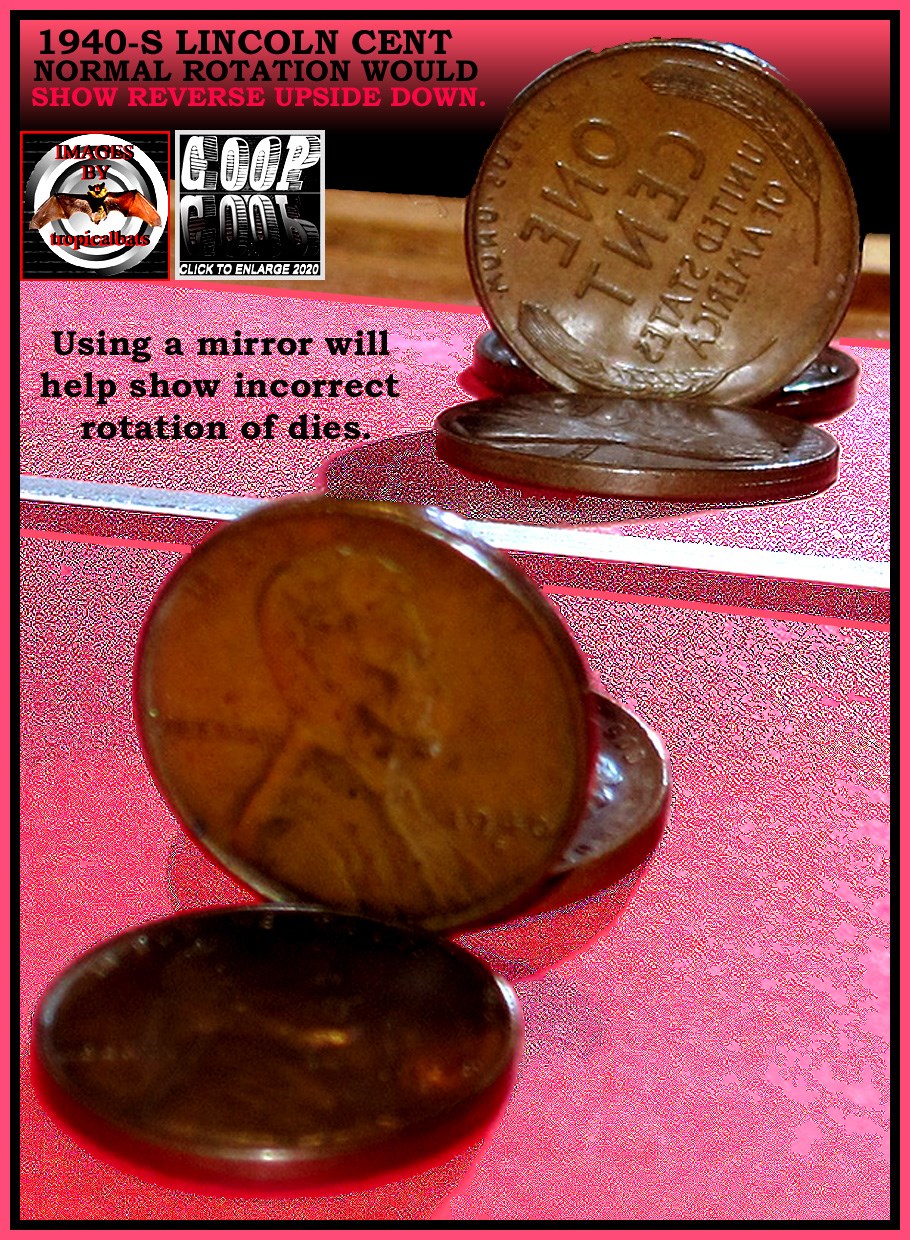

Mirrors have been a great aid: ))_tropica_60783.jpg)   U.S. coins are rotated 180 different than the other side. Canadian and a few other countries are what they call medal alignment. That means that if you drilled a hole on the top, both sides would be normal looking. (U.S. coins would be rotated 180 degrees) Edited by coop
05/10/2021 1:44 pm
|
|
Moderator
 United States
189749 Posts |
A cardboard 2x2 is what I use. Make sure one side is perfectly aligned when it is holdered. Flip it over and use your protractor to measure the degree of rotation.  |
|
Pillar of the Community
2145 Posts |
Here's a handy gauge you can print out then cover it with clear packing tape for sturdiness.  |
|
Pillar of the Community
United States
3237 Posts |
I think OP may be asking about off center strikes, not rotated die errors, but I could be wrong.
|
|
Moderator
United States
189749 Posts |
Quote:
I think OP may be asking about off center strikes, not rotated die errors, but I could be wrong. On second read, you may be correct! |
|
Pillar of the Community
United States
4963 Posts |

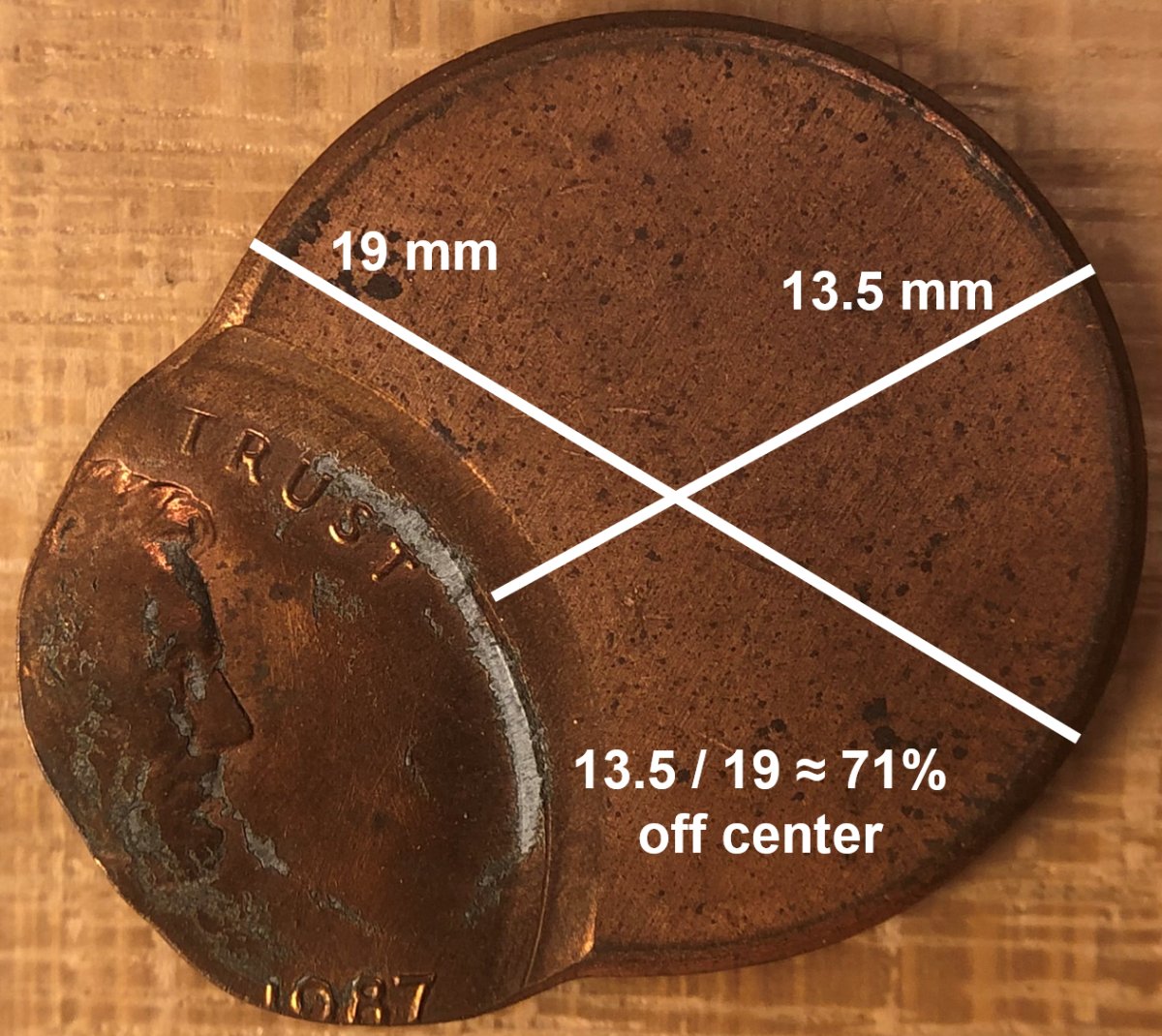

 This method should be fine. I don't think anyone worries about minor details like the difference in diameter between the planchet and the finished coin. Note that you can't measure total diameter across the struck portion since the planchet expands. Edited by Numisma
05/10/2021 4:18 pm
|
|
Moderator
United States
189749 Posts |
Nice image!  |
|
Pillar of the Community
2145 Posts |
Quote:
I think OP may be asking about off center strikes, not rotated die errors Well, either way he now has the info -  |
|
Moderator
United States
189749 Posts |
Quote:
Well, either way he now has the info - True! |
|
Moderator
United States
56855 Posts |
Edited by John1
05/11/2021 03:58 am
|
|
Valued Member
 United States
245 Posts |
Off center and rotation so both were what I was interested in... Awesome responses wow how great is that thanks for all your feedback and the images were great. I am very satisfied with the returned support on this... Thanks to all! The misalignment is what I will practice finding. Any ideas on easier methods anyone?
|
| |
