And Speaking Of Pillar Dollar Fakes.....

Both look fake to me.

The pictures are not clear enough to make absolute statements about the authenticity of either coin in my opinion but there are some clues you can see.

The 1735 is edged POST strike. The wavy (undulations) visible in the dentils are caused by the distortion made by the edger die being used AFTER the strike. For 1735 this is a VERY good sign. In the earlier days of the mint's operation many coins WERE in fact edged after the strike. Most if not all coins from the 30's were edged in this way.

The practice, which was not always uniformly applied, was generally abandoned some time later during the Pillar series. This change in method was a result of production delays caused by Post Strike edging. Sometimes the process of striking a coin in a screw press RESULTED IN A COIN BEING STRUCK OUT OF ROUND. Depending on the results of annealing process (heating) the blanks to soften them before the strike - there can variations in hardness across a single blank. When this happens you get more expansion in one axis (direction) than another and the coin as struck is NOT ROUND. Edging an out of round blank poses problems in the edging mill - either slippage or jamming - depending on where the edging starts. If you put an oval coin in the edger at it's widest point it can fall out or result in a weak edge impression at the coin's narrowest point. If you start the coin at the narrowest part you can jam the edger when the coin gets to its widest point. So as a result of the out of round nature of the struck coins you get an irregular edge at best and at worst you delay production while the adjustments are changed to free the jammed coin.

Edging a blank BEFORE the strike precludes these problems because the diameter is the same all around and the edging dies bite evenly into the edge. This is the same reason blanks were not "adjusted" by filing the edges. Pre-strike edging produces a better looking more acceptable edge pattern which was the objective of the mint. A well edged coin could not be filed on the edges without being readily detectable.

It would be a bad sign to see the 1757 coin edged Post Strike.

Another positive note is that the lotus pattern reverses at the half way point. This also was the way most blanks were edged early on. The reversal of the design was also an off and on thing (the reason a 1757 could share the same characteristic without much concern). The one directional edges make it more difficult to check the location of the overlaps. The two joins have to be 180 degrees apart - that is simple physics (or geometry for math types).

That is the best news about the 1735. The pattern used for the dies does look good. However, with the gold plating present it is really impossible to see the actual coin surface. The weight is GOOD - the gold plate (depending on thickness) may offset the minimal wear present. But in any even much of the value as a coin was lost when it was plated.

I would suggest a Specific Gravity test next to see if it is 10.31 or higher. A deviation of even a few points would make it very suspect. SG is a tool that is too often omitted by collectors at their own peril.

Remember - the transfer processes that have been in place for at least the past 10 years allow a very good looking copy to be produced. And with the surfaces covered by a electroplated metallic layer there may be no way of ever knowing for certain.

The 1757 is easier to examine but the photos are not adequate to make a firm decision. I see nothing that screams counterfeit to me. The second photo seems to show one join in the edge design located at the E in REX. If that is the case is there a similar join at the opposite side? Are all of the lotus segments IDENTICAL in shape and length? Is the detail of the segment correct? On the coin faces, even if they are cleaned, are the intersections between the fields and the features SHARP about 90 degree intersections or is there a sweeping transition indicative of transfer? Do the sides of the raised elements (like letters) show vertical flow lines caused by the silver flowing up into the die recesses?

There are struck silver full weight forgeries made from transfer imaged dies (computer assisted engraving etc.) so age may be critical. If you trust the seller to tell you the truth, try to find out how long he had them. Age, if provable, can be a valuable tool to eliminate some of the newer transfer types.

When I buy counterfeit collections, I quite often get originals mixed in. It is part of the game. That is one reason I am concerned when dealers who are NOT EXPERTS permanently mark a coin as a COPY or COUNTERFEIT. MY concern is that they are often WRONG. If they mark a Real coin COPY - how would you ever overcome that problem? The marking COPY should be used only on provable Modern counterfeits made after 1974. For earlier counterfeits it is difficult to be certain of age and many of the fake coins we see today were originally made in the 1950's and 1960's. They are just re-surfacing.

However, in my opinion a real counterfeit is not damaged in value by it's identification as a forgery - even if that identification results in damage to the surface. Counterfeits, in my opinion, should NOT be graded like originals because for one thing the starting condition is often unknown and it becomes a meaningless comparison. Drill holes and test cuts abound in counterfeits so the word COPY does not bother me excessively. I would not do that to my contemporary copies. But unfortunately test cuts, cancels, drill holes and the word COPY also happen to real coins. That is my concern when any permanent alteration is made to the surface of a coin. The person who does it needs to be 100% certain.

Recently I have heard of dealers asking exorbitant prices for PRISTINE "MS" forgeries. I heard that a figure over $2000 was being sought for a "mint state" Birmingham" forgery. I would never pay that amount of course, but some people are. That really bothers me. Many counterfeits are unique or nearly so - condition of the few survivors is a secondary matter. A unique counterfeit variety in AG will always be rarer than the best example of one of the common varieties.

Anyway, I am far off topic now. If you do SG tests for either coin I would be interested to hear the results.

Odentheviking

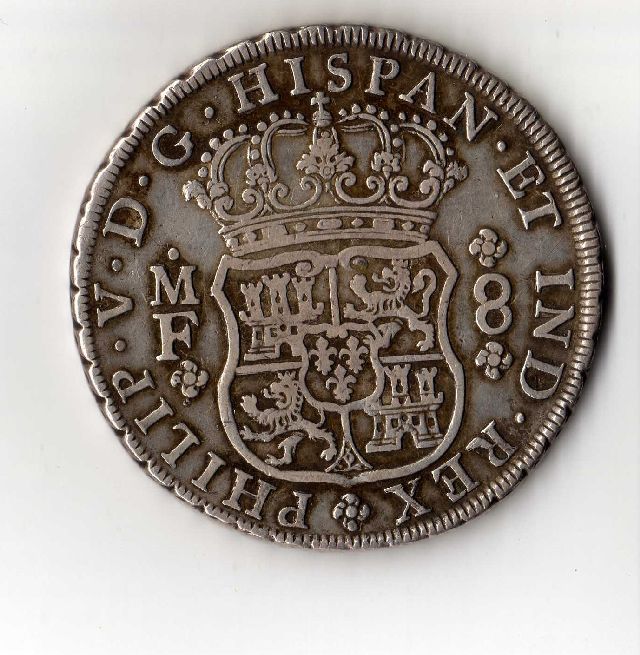

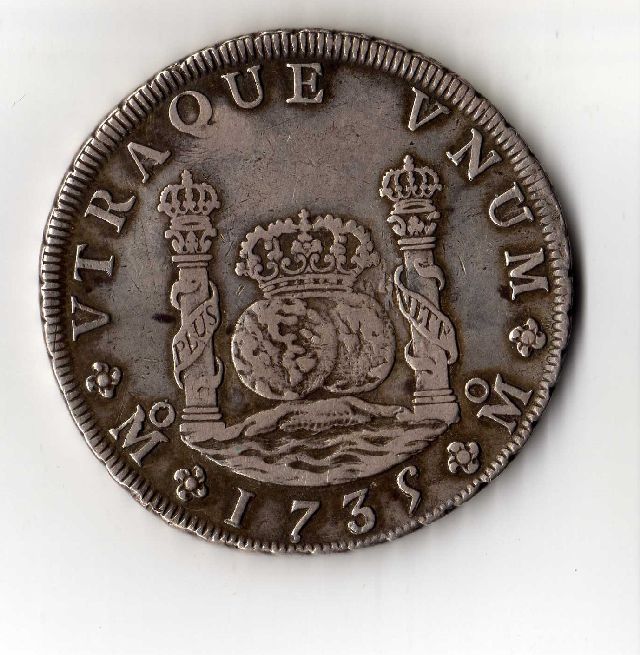

I have seen other real pillars that have been gold plated and put in jewelry and sold as "8 Escudo" coins. I believe both of your coins are real, they look fine to me. I am posting a 1735 so you can compare features since you said you did not have access to one for comparison.

As you requested. Any other images you need?

odentheviking Provided the tests were not flawed by methodology which I do not suspect - the results are fairly conclusive. Pure silver - like the round is 10.4 (The chart says 10.46 but your results are close). That means you are at most only 0.06 off.

Here is a good site for SG's of various materials.
http://www.reade.com/Particle_Brief...ec_gra2.html

The readings of 10.05 and 9.99 are not good news. The coins are counterfeit. They are well outside the range for REAL coins. Coin Silver that has an alloy of 90% silver 10% copper is 10.31 (that is a fabricated or struck density). Pure copper (rolled) is 8.91. Nickel is lower at 8.67 (rolled). So an SG near 10 will be debased considerably below 90% for copper alloys. I do not have access to my table of deviations but it equates to roughly 1% of silver for every 0.015 points of SG (using Cu alloys). So the coins are about 75 to 80% silver at best based on doing calculations in my head. That is a very typical result for recent Chinese counterfeits AND for some of the later Bullion forgeries made ca 1900.

The next logical question to ask is: Were "real" Mexico City mint products ever made with SG's that low?

The answer is a highly qualified - Yes. Those instances occurring in the Mexico City mint were very VERY RARE. If you check Riddell's work you will see that very few real coins have silver contents below 90%. So I suspect that what you actually have are in fact "Bullion Forgeries" of the type from the late 1800's or equally possibly they could be modern fabrications in the Numismatic Forgery class - perhaps Chinese in origin.

But even if the coins were REAL. That is, even if they were produced in the year shown and in the Mint shown - they are still debased FRAUDULENT issues. John Riddell first established the "Debased" category in his 1845 book but he used it sparingly and included in that group instances where real dies were stolen from the mint and instances where scrap dies were sold and re-used by forgers.

I am back home now. The SG results now equate to 850 and 870 fine silver (they were 715 and 750 before). The newer results would place the coins in the older Bullion forgery category based on tests I have conducted in the past. The Chinese copies I have checked are usually under 10.1 not over 10.2 and many older bullion forgeries are in the high 800s.

However, I am concerned about the large change in your results 9.99 jumped to 10.22 for the 1735 and what you said in your post about how you adjusted your numbers.




There is no need to add the weight of the hangar to the coin.

Lets go back to the start.

The Specific Gravity of any item is the density relative to water. It is determined by dividing the weight of an object by its volume. Water is 1.0 grams per cubic centimeter at "room" temperature at sea level.

So for our purposes, the SG is the weight of the coin in air (with NO hangar) divided by the difference in weight between the coin weighed in water and in air.

So the first weight, (the numerator) is simply the coin itself.

The denominator of the fraction is the difference between the coin AND hangar in air and the coin and hangar in water.

The weight of the hangar in this case nets out to ZERO because the weight of the hangar is included in both the wet and dry weights of the coin.

If you just add the weight of the hangar to the weight of the coin in the numerator, you are just artificially increasing the SG as a result.

But, I also noticed that you said "string". That could be a small flaw in the methodology. I have never used a string as a hangar because it floats. It has a density below that of water and usually it is porous. The effect of a buoyant material like string DECREASES the apparent SG of the coin because it disproportionately increases the difference in weight making the coin appear much larger in volume.

Typically, I use a fine drawn silver wire as a hanger (jewelry supply houses can provide some very fine wire with known SG) but any non porous wire can be used. The thicker the wire hangar the more effect there is on the test. So big knots and excess hangar material all heighten the effect. But you can use any wire if you zero out its effect on the results. I have also successfully used stainless steel, piano and copper wires.

But the key fact here is that the hangar has a VOLUME itself and therefore it has a displacement effect when the coin is in the water. You do need to adjust your results for the effect of the hangar not simply for the weight of the hangar. I typically check the hangar assembly EMPTY (weighing it in air and then in water) to determine the net effect the hangar has on the displacement weight of water (the delta - the difference between the dry and wet weight of the coin.)

Remember the net weight of the water displaced EQUALS the volume of the coin. It is the volume of the coin that is needed for the SG determination. One Cubic Centimeter of water weighs exactly ONE GRAM so if the coin is 3 grams lighter in weight it has a volume of 3 cubic centimeters.

For a very fine silver wire the effect can be very minimal in the range of 0.002 grams (cc's) and using 900 fine silver renders the deviation meaningless when dealing with 900 fine coins since the density matches. The effect of the 900 fine hangar will alter SGs that are lower than 10.31 by raising them slightly. Conversely a 900 fine hangar will drop higher SGs. But for doing an authenticity check on most 900 fine coins for authenticity the silver wire can be IGNORED with no net effect.

I also use silver wire for testing gold coins - the effect is more significant there but is removed in the identical manner. If I am testing a debased gold coin for the actual value of gold it contains the silver hangar needs to be accounted for or I will get an incorrect result.

As a result many people do not bother with the hangar effect when they use drawn silver wire. I agree with that. Remember it is NOT THE WEIGHT of the hangar that is the problem. The weight cancels out. It is the VOLUME of water displaced by the hangar that is critical. In many of my tests it can have an effect of 0.012 cc.

Other hints to getting accurate results in an SG test are as follows.

Repeat each test THREE times to make sure you have a good repeatable result. This is critical for debased silver coins in the 800 fine and up range where a small difference is critical - not really critical for plated copper where the difference is enormous.

Remember that you can nullify a test result by being imprecise. An air bubble can get trapped and missed resulting in an incorrect SG.

At times, a coating on the coin (if thick enough) can lower the SG slightly. Always look for oils or excessive dirt first and if possible remove thick deposits before testing. Oils should be removed (I use acetone).

You need to use room temperature (same temperature as the coin) distilled water with a small amount of detergent (1 or 2 drops) per cup of water to break surface tension. You can boil tap water to remove dissolved air and achieve decent results.

Do not let the coin sit in the water any longer than necessary because air bubbles can form on the coin surface quickly under the incorrect circumstances.

Also make sure there are no significant air currents blowing on the scale (fans - even your breath on the apparatus can cause a deviation). In most laboratories the analytical balance is kept in a glass box.

Finally always check your balance before and after each test to assure it is set up correctly (level) and will zero with the balance empty.

Sorry of I start to sound like a Lab professor but a bad result can get a real coin labeled as a fake and vice versa.

That procedure certainly sounds better than using a string. Zeroing the scale with the hangar basket in place deducts the effect of both the weight and buoyancy of the basket leaving the displaced weight of the coin only. So far so good.

The only issue I would see as effecting the results is the level of accuracy of the SG number. I would express your results as 10.4 or perhaps 10.44 but not 10.436. The scale accuracy determines the final accuracy of the SG.

Based on your stated weights 31.1 gram and 2.98 grams, I am not certain what the accuracy level of your scale is, but I presume 0.01 gram. On most scales a reading of 2.98 grams means that the item weighs more than 2.975 grams and less than 2.985 grams. But some electronic digital scales have a stated accuracy level over and above the reading level. Some of the less expensive Chinese digital scales clearly state they are accurate to 0.2% of total weight. That is a range of 0.05 gram for a 27 gram item. (That is the same as example above so 2.98 means 2.975 to 2.985). But others I have seen (the really cheap ones) say accuracy of 1% or even 2% is anticipated. That is 0.27 to 0.54 grams as a range. The potential difference in weight using a 1% range is 2.71 to 3.25 - a huge range. A 2% range is double - almost worthless in terms of SG.

So the differential you state is 2.98 grams (2.98 cc.) But based on the scale accuracy that could actually be 2.99 or 2.97 as well.

If the scale weighs to the 1/100th gram ACCURATELY, then the accuracy of the fraction that creates the SG is to the 1/100th level AT BEST (two decimals) not the 1/1000th level. If it is plus or minus 1 full gram the calculation produces a ONE DECIMAL result.

I know that is scientifically picky but the difference needs to be discussed. A plus/minus of 1/10th in SG is roughly a 50 point range spread in silver/copper alloy.

The procedure you employ is ENTIRELY CORRECT. The results may simply be overstated based on the scale used.

Your procedure is also simpler than the one I am using but physical limitations of my current apparatus (a 4 beam analytical balance) preclude that approach. It is a manual balance and so does not automatically zero and the space available is under 3 vertical inches. If I had a good digital scale that zeroed automatically and had space for a hanging basket and a large water reservoir that would be even better, but a reliable high accuracy digital scale (accuracy to 0.001 gram) is too costly for me right now. The only ones I know of run $500 or more.

I do own an inexpensive digital scale ($30) and use it for quick tests but the results are accurate only to 0.01 gram which as indicated above is a significant range in SG testing. BUT 0.01 GRAM IS DEFINITELY GOOD ENOUGH FOR QUICK IDENTIFICATION OF COUNTERFEITS. It produces alloy results that are in the 2 decimal point range or roughly 10 points of fineness. But that will identify most debased or off metal counterfeits. I only use the more accurate scale when time and accuracy requirements necessitate. It can literally take a half hour to do an accurate set of tests start to finish.

You are on the right track and if using your new method confirms even a 10.2 reading (or 10.22 and 10.25) for the two coins - then I would believe they were not real but are bullion forgeries.

What result does your new test produce using the basket?

The next step on the discussion of SG is the chart or table of SGs best suited for interpretation of your results. That is a later discussion.
