Edge Lettering Weak Or Normal? - Sacagawea 2010 D



To participate in the forum you must log in or register.
Author Previous Topic Topic Next Topic
Valued Member
United States
120 Posts
 Posted 03/20/2019  9:41 pm Show Profile   Bookmark this topic Add Texasstar12 to your friends list Get a Link to this Message
*** Edited by Staff to Add Year / Mintmark / Denomination to Title. Titles are Important! ***

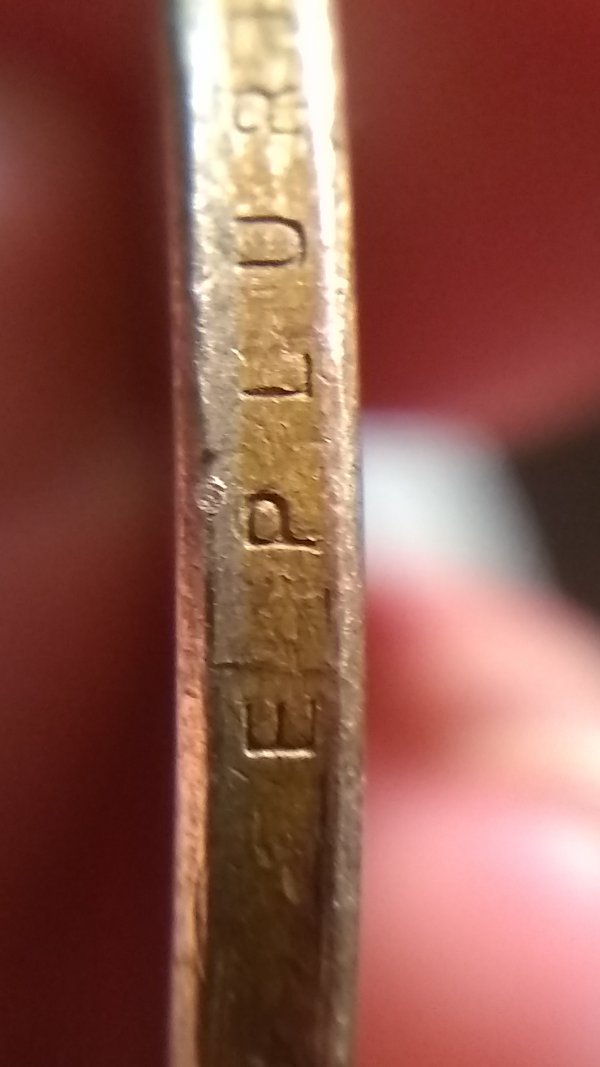

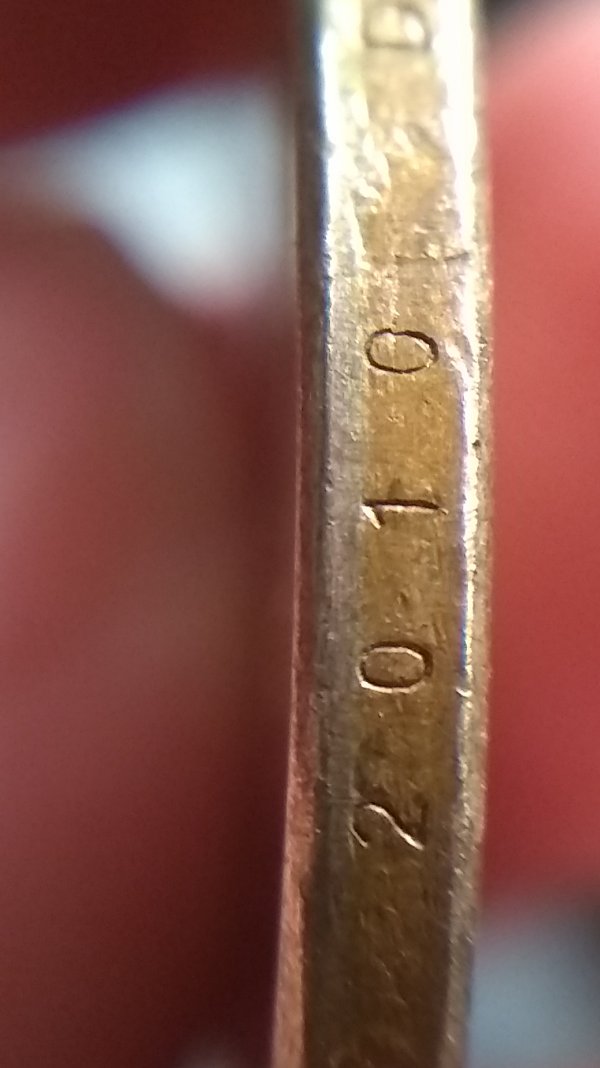

To me it's weak. It's not deep or wide like all the other edge lettering I have seen. It's on Sacagawea 2010 D position A.



Bedrock of the Community
Learn More...
United States
12068 Posts
 Posted 03/20/2019  9:46 pm  Show Profile   Bookmark this reply Add Spence to your friends list Get a Link to this Reply
@TS12, I don't know enough about this subject to be able to help you, but I wonder if you might post the edge lettering for a more typical coin? I would be interested to see the difference that you are seeing just to learn about this. Thx.
"The danger we all now face is distinguishing between what is authentic and what is performed."
-----King Adz
Valued Member
United States
120 Posts
 Posted 03/20/2019  10:06 pm  Show Profile   Bookmark this reply Add Texasstar12 to your friends list Get a Link to this Reply

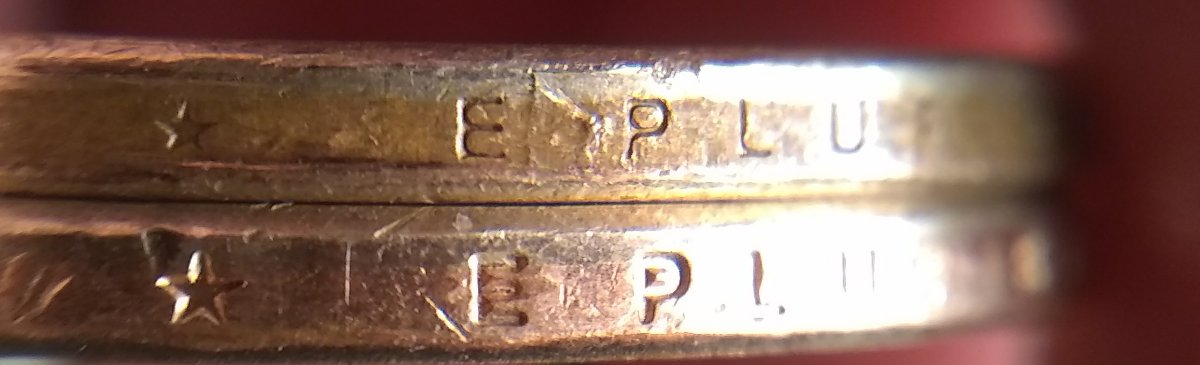

Here ya go @spence.

Bedrock of the Community
Learn More...
United States
21756 Posts
 Posted 03/20/2019  11:04 pm  Show Profile   Check Errers and Varietys's eBay Listings Bookmark this reply Add Errers and Varietys to your friends list Get a Link to this Reply
They look weak. I am wondering if circulation wear did it?
More information about Die Deterioration? http://goccf.com/t/317950
Retired U.S. Mint Coin Die Set information. http://goccf.com/t/302961
1988 P LMC RDV-006, 1998 P LMC Wide AM, and 2000 P LMC Wide AM. http://goccf.com/t/327834 http://goccf.com/t/294303 http://goccf.com/t/312900
1973 D Lincoln Memorial cent With Recurring Die Subsidence Error Information. http://goccf.com/t/304624
Machine Doubling tutorial. http://goccf.com/t/332421
Die states progression on coins. Scroll down, so you can see the different die state progressions. http://goccf.com/t/325638
Die Deterioration Doubling Tutorial. http://goccf.com/t/336470
Valued Member
United States
120 Posts
 Posted 03/20/2019  11:08 pm  Show Profile   Bookmark this reply Add Texasstar12 to your friends list Get a Link to this Reply
both are circulation. I thought the same but questioned it because the depth and width both are smaller. Thank you.
Bedrock of the Community
Learn More...
United States
12068 Posts
 Posted 03/21/2019  06:19 am  Show Profile   Bookmark this reply Add Spence to your friends list Get a Link to this Reply
Ok thx @ts12. The difference between the two is quite obvious. I'll be interested to see what others think as we don't get asked this question very often.

From Mike Diamond's error-ref.com, the only mention I see of something potentially related is:


Quote:
Weak edge design due to segmented collar not closing fully (wide seams)


Just food for thought...
"The danger we all now face is distinguishing between what is authentic and what is performed."
-----King Adz
Edited by Spence
03/21/2019 06:20 am
Valued Member
United States
120 Posts
 Posted 03/21/2019  07:01 am  Show Profile   Bookmark this reply Add Texasstar12 to your friends list Get a Link to this Reply
thank you
Pillar of the Community
United States
2109 Posts
 Posted 03/21/2019  12:15 pm  Show Profile   Bookmark this reply Add Halo1st to your friends list Get a Link to this Reply

Quote:
Weak edge design due to segmented collar not closing fully (wide seams)

My thinking is segmented collars were used on proof strikes. One piece collars were used on the rest. Not having much luck researching collar design varieties.

Though a different topic, did find another example from 2010-D. Zoom in on it if needed. http://goccf.com/t/64115

If I saw reduced incused devices such as this on the obverse or reverse dies, my first thoughts would lean towards a doubled die. Again note I'm not to familiar with how many different collars were in production nor the making of the collars bearing design elements. Unable to dig up much info on that yet.

Seems Denver was producing normal strikes and SP strikes this year. Thanks, Doug.
Second opinions are always recommended. Rookies thoughts!
Two sides to every coin. The edge makes three.
Side Note: Sometimes I feel like a nut, sometimes I don't.
Edited by Halo1st
03/21/2019 12:21 pm
Pillar of the Community
United States
902 Posts
 Posted 03/21/2019  12:38 pm  Show Profile   Bookmark this reply Add levelsofmadnes to your friends list Get a Link to this Reply
That is something I have always wondered too.
Using the squinty eyeball method (usually only good for driver's license test) on the two coin picture, I tend to think there are two collars; one thin and one thick letter collar.
Just a wild guess from the peanut gallery.
Valued Member
United States
120 Posts
 Posted 03/21/2019  11:30 pm  Show Profile   Bookmark this reply Add Texasstar12 to your friends list Get a Link to this Reply
I cant remember which one I used to compare to. To see if different size or angle of picture was taken. The driver eye test. I squint
Bedrock of the Community
United States
15502 Posts
 Posted 03/23/2019  07:42 am  Show Profile   Bookmark this reply Add Conder101 to your friends list Get a Link to this Reply
The edges of the business strike NA and Presidential dollars are NOT made with segmented collars. It's more like how they create the upset rims on the planchets, the struck coin is rolled against a rotating edge die. The depth of the impression depends on how much pressure there is on the coin against the edge die. Getting the pressure right is tricky, too little yu get weak lettering and possible slipping resulting in improper or inconstant spacing of the letters. Too much pressure and you run the risk of the coin jamming and the rotation stopping causing the letters in the die carving a gouge in the edge instead of impressing lettering. So either too little pressure or too much results in bad edges.
Gary Schmidt
