Author	Replies: 9 / Views: 1,493

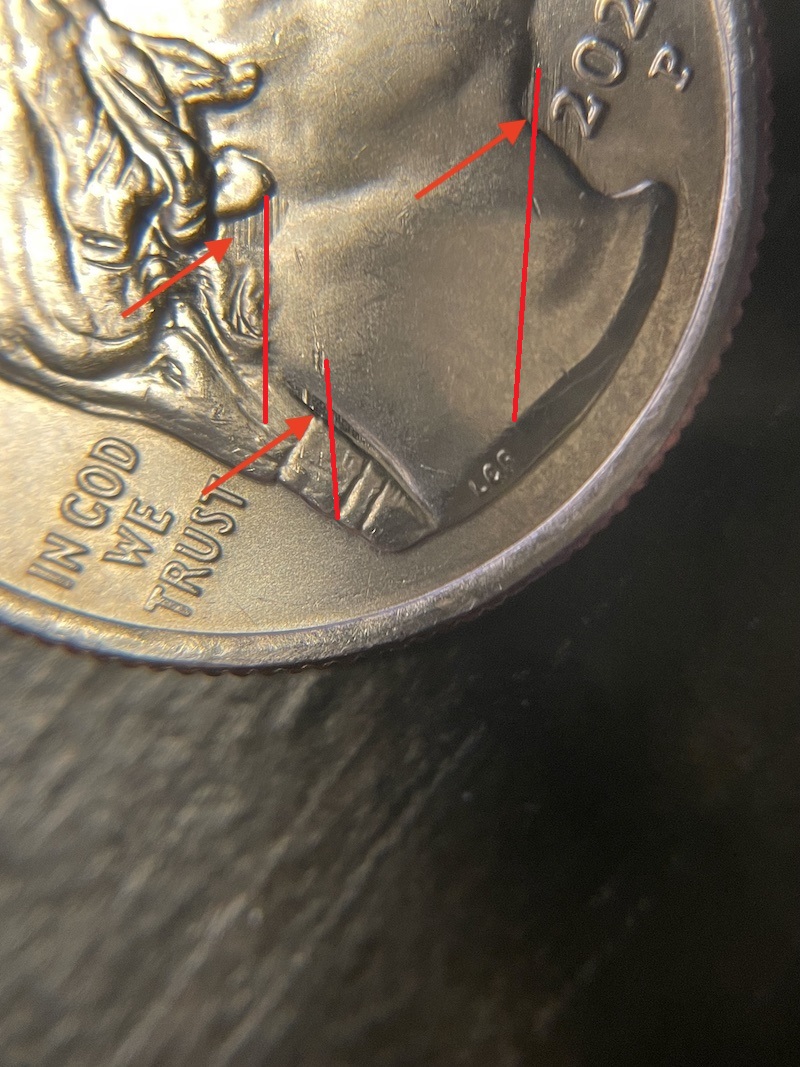

13buriedtreasure New Member United States 4 Posts	Posted 09/15/2023 3:52 pm Are these die scratches or would that have been from the original planchet? Report this Post to the Staff

John1 Moderator United States 56855 Posts	Posted 09/15/2023 4:37 pm Might be Feeder Finger Damage? John1 Report this Post to the Staff
Dearborn Moderator United States 94728 Posts	Posted 09/15/2023 6:44 pm Feeder Finger Damage. Collecting since 1972. Learning from then on "Tell me and I forget. Teach me and I remember. Involve me and I learn." - Benjamin Franklin 7070 type set coin count: 51/76 Uncirculated American Silver Eagles My American Silver Eagle Proof Collection Sacagawea Dollars Innovation Dollars Eisenhower-Dollars Kennedy-Half Dollars Washington-Quarters Roosevelt-Dimes Buffalo-Nickels 1938-2005 Jefferson-Nickels Lincoln-Cents Edited by Dearborn 09/15/2023 6:44 pm Report this Post to the Staff
silviosi Pillar of the Community Canada 6244 Posts	Posted 09/15/2023 7:22 pm It is an 2022 coin and the presses use now do not have feeder fingers. I saw some examples also for others years with same design of lines. For 2022 I saw a few. Me I think that could be Working Hub polishing scratches What do you think? Edited by silviosi 09/15/2023 7:23 pm Report this Post to the Staff
Dearborn Moderator United States 94728 Posts	Posted 09/15/2023 7:30 pm I think FFD, the striations are all perpendicular to each other and are only on the high points of the die. Whether vertical or horizontal, there HAS to be a mechanism to push in planchets and push out struck coins. I cannot see a planchet just falling into place perfectly every time without assistance of some kind. I'm going to stick with FFD. Collecting since 1972. Learning from then on "Tell me and I forget. Teach me and I remember. Involve me and I learn." - Benjamin Franklin 7070 type set coin count: 51/76 Uncirculated American Silver Eagles My American Silver Eagle Proof Collection Sacagawea Dollars Innovation Dollars Eisenhower-Dollars Kennedy-Half Dollars Washington-Quarters Roosevelt-Dimes Buffalo-Nickels 1938-2005 Jefferson-Nickels Lincoln-Cents Report this Post to the Staff
Errers and Varietys Bedrock of the Community United States 73628 Posts	Posted 09/15/2023 7:35 pm I'll go with Feeder Finger Damage. Errers and Varietys. Report this Post to the Staff
silviosi Pillar of the Community Canada 6244 Posts	Posted 09/15/2023 7:53 pm Dear you are wright about an mechanism to push out the coins from the collars band. they are like small pistons with relative soft kind of rubber and every second coin strike is push out of the collar. I do not see this piston could made this. At one point I put here a photo of the polish die lines when they cancel a Die and the lines on this coin fit the marks. This it is my reason to believe if is the Working Hub polish lines. Others examples I saw 2022 the lines was in the same place. Will be almost impossible an feeder finger will let traces on multiple coins on same place and also an feeder finger damaged will not be use for two coins strikes. Also the back lines behind the ear and the begin of the 2022 are not parallel and no feeder finger will be so large on the sides. Could be also another reason for those last modern coins errors or varieties. Those are to new coins and must be more studies on. Edited by silviosi 09/15/2023 8:04 pm Report this Post to the Staff
Cujohn Pillar of the Community United States 7174 Posts	Posted 09/15/2023 8:58 pm Silvio, are you saying that there would be the exact same polishing lines from year to year? How would that be posable? Polishing lines are from humans polishing the dies by hand. There is no way they would be the same year after year. It's more believable that the feeder fingers damaged the die every year the same way, As their motion is the same for every year. Report this Post to the Staff
silviosi Pillar of the Community Canada 6244 Posts	Posted 09/15/2023 9:28 pm Cujohn, The presses do not have anymore feeder fingers from 2000, when the horizontal presses was start to strike. In the hypothesis of feeder fingers, the lines will have this orientation ? on 4 mm large ? I trace the orientation of the lines on the OP photo Report this Post to the Staff
HGK3 Pillar of the Community United States 572 Posts	Posted 09/15/2023 10:41 pm I think the term "die scrapes" is preferred now over Feeder Finger Damage as there are a variety of moving parts that can cause that kind of damage to the die. https://www.error-ref.com/?s=Die+scrapes Report this Post to the Staff
	Replies: 9 / Views: 1,493
