1985 P Jefferson Nickel Die Deterioration Doubling Tutorial!


To participate in the forum you must log in or register.
Author Previous TopicReplies: 10 / Views: 3,298Next Topic
Bedrock of the Community
26893 Posts
 Posted 12/31/2018  4:40 pm Show Profile   Bookmark this topic Add Errers and Varietys to your friends list Get a Link to this Message

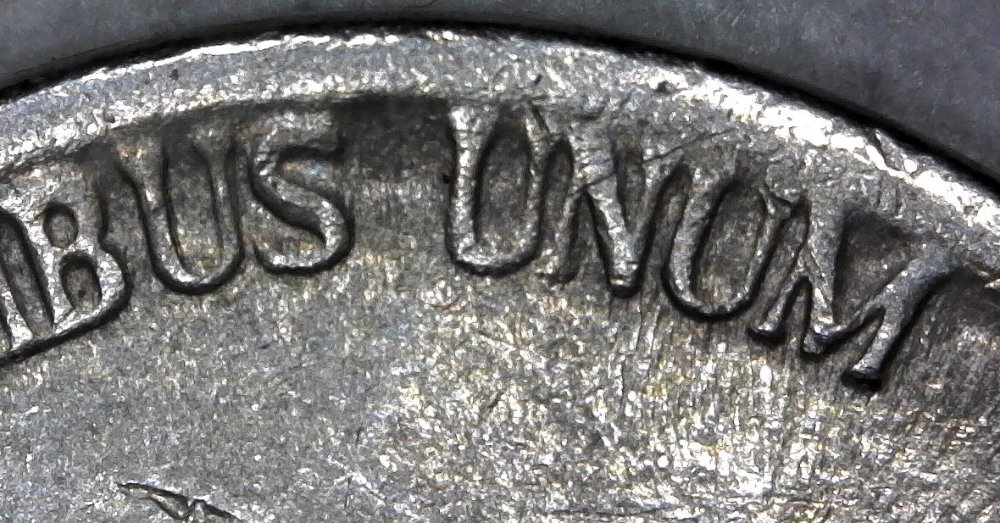

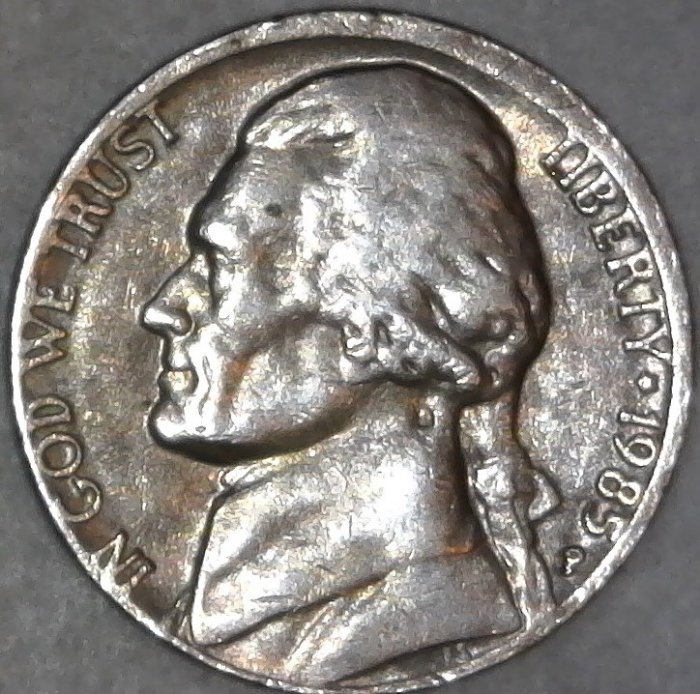

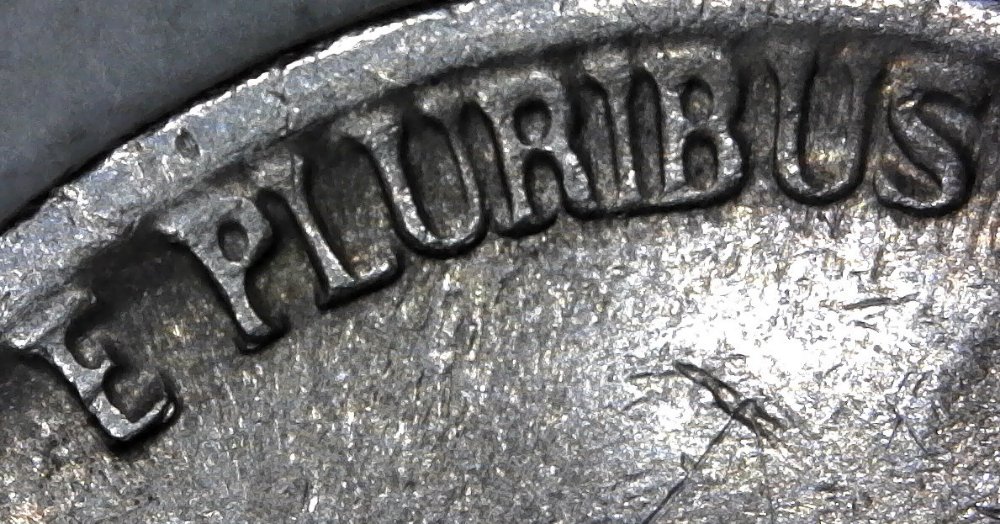

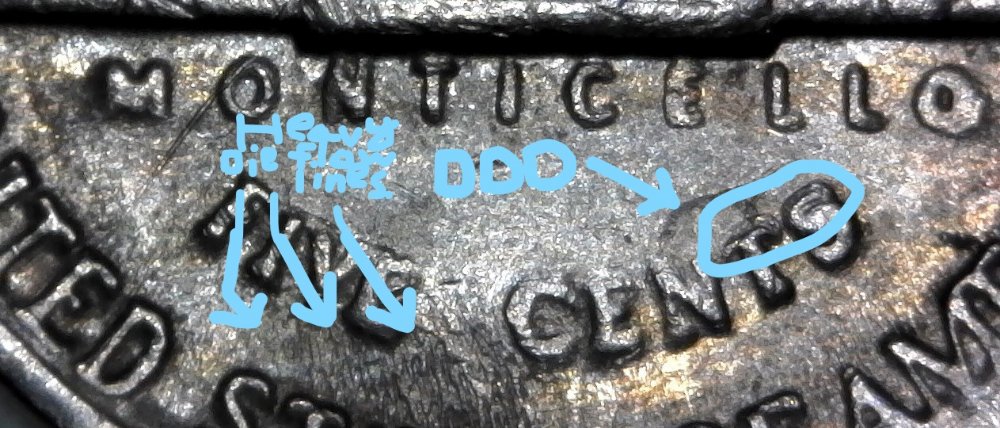

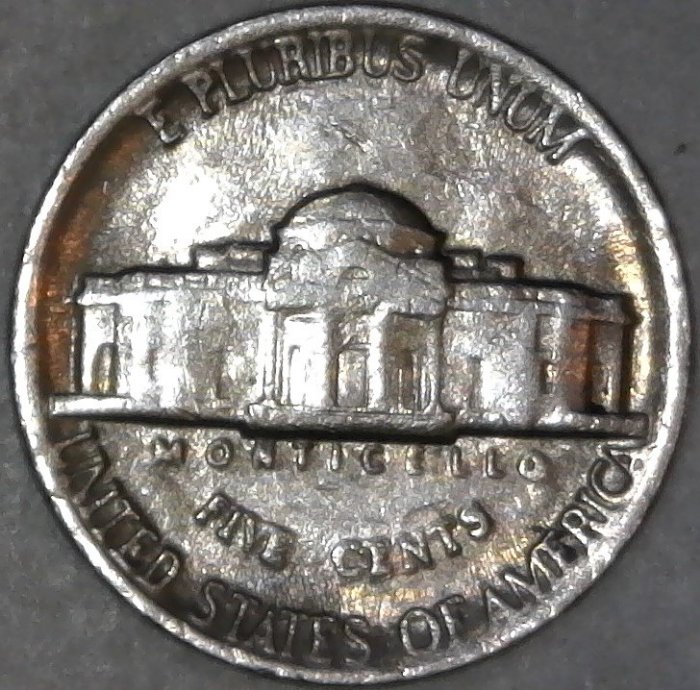

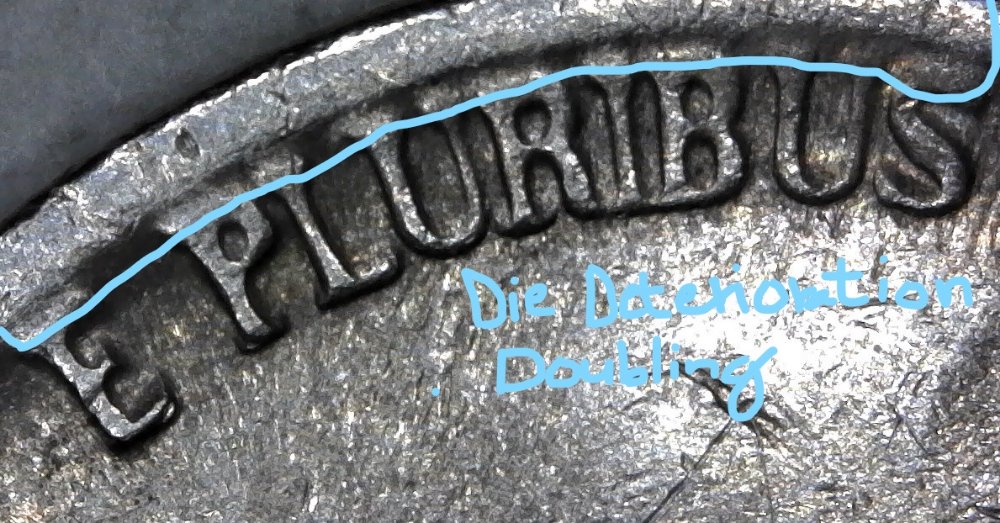

I am going to talk briefly about Die Deterioration Doubling today. I will also explain how you can tell the differences between Die Deterioration Doubling and a true Doubled Die. As you can see, this issue is caused by the die becoming very worn down from striking many planchets. The die will start slowly breaking down at first, then the devices eventually break down as well, with the devices becoming effected. Die Deterioration Doubling has a shadow effect and ghost like appearance to it. Die Deterioration can be very subtle or quite noticeable! The devices will look worn down, mushy, and have a stretched out look to it. There may also be die flow lines going outwards, as the die pounds away striking planchets. Remember, this is only caused by the die breaking down. A Doubled Die is a completely different thing that happens when there's a mistake in the die making process, causing the devices image to be doubled during the die hubbing process. From Mike Diamond:
Quote:
A Doubled Die is caused by a misalignment or a mismatch between a working hub and a working die. The misalignment or mismatch occurs between a first and subsequent hubbing or sometimes in the course of a single hubbing. http://www.error-ref.com/doubled-dies/

I hope this helps. Tell me what you think. Is there anything I need to correct?





Edited by Errers and Varietys
01/01/2019 01:12 am
Bedrock of the Community
Learn More...
United States
59304 Posts
 Posted 12/31/2018  7:14 pm  Show Profile   Bookmark this reply Add Coinfrog to your friends list Get a Link to this Reply
Very helpful discussion with good pics. Thanks!
Bedrock of the Community
26893 Posts
 Posted 12/31/2018  8:20 pm  Show Profile   Bookmark this reply Add Errers and Varietys to your friends list Get a Link to this Reply
You're very welcome Coinfrog! I'm glad you found it very helpful. Happy New Years!
Pillar of the Community
United States
7282 Posts
 Posted 12/31/2018  9:34 pm  Show Profile   Bookmark this reply Add Earle42 to your friends list Get a Link to this Reply
Great post - thanks for the education.
The slabbed Half dollar No FG farce: Download No-FG half vs. Grading Company Claims report here:
https://tinyurl.com/yalrstjz or higher resolution version: https://tinyurl.com/y7rksxu8

- How much squash could a Sasquatch squash if a Sasquatch would squash squash?
Bedrock of the Community
26893 Posts
 Posted 12/31/2018  11:57 pm  Show Profile   Bookmark this reply Add Errers and Varietys to your friends list Get a Link to this Reply
Thank you Earle42! I'm glad you found it helpful. I'll be editing this thread for grammer corrections and other things. Happy New Years!
Pillar of the Community
United States
5024 Posts
 Posted 12/31/2018  11:59 pm  Show Profile   Bookmark this reply Add CoinHunter27 to your friends list Get a Link to this Reply
Nice educational thread. Good example as well. Happy new year!

-CH27
Collector of U.S. varieties and errors
Bedrock of the Community
26893 Posts
 Posted 01/01/2019  12:19 am  Show Profile   Bookmark this reply Add Errers and Varietys to your friends list Get a Link to this Reply
Thank you CoinHunter27! I'm glad it helped. Happy new year to everyone!
Pillar of the Community
United States
501 Posts
 Posted 01/02/2019  02:35 am  Show Profile   Bookmark this reply Add Rabbithole1 to your friends list Get a Link to this Reply
Thank you!!

Bedrock of the Community
Learn More...
United States
52334 Posts
 Posted 01/02/2019  05:16 am  Show Profile   Bookmark this reply Add coop to your friends list Get a Link to this Reply
Die wear is noticed on the sides of the devices towards the rim direction. The area on cents looks like Machine Doubling because it is on the opposite side of where you would find Die Deterioration.
Richard S. Cooper
Some have asked about my images I use and I'm glad to say, you can now you can see the DVD in sections on youtube:
1. Intro, older coins, toned coins 2. Doubled dies 3. Die events, One of a kind errors 4. So called errors, Coin information 5. Coin information Types and Varieties, Overlays
Jefferson nickel doubled dies Wexler/Rebar complete listings

trail dies:http://www.traildies.com/
Bedrock of the Community
26893 Posts
 Posted 01/02/2019  11:43 am  Show Profile   Bookmark this reply Add Errers and Varietys to your friends list Get a Link to this Reply
You're welcome Rabbithole1 and thank you Coop for providing new information! I didn't know that at first.
New Member
Canada
27 Posts
 Posted 01/07/2019  10:22 am  Show Profile   Bookmark this reply Add geraldbergeron to your friends list Get a Link to this Reply
WOW This is a great thread, at least for an error collecting beginner like me . Just to understand this error world !!
IMO, it should be in some kind of "stickies" at the beginning of the forum. Just like any other "Tutorial" approved by mods.
This way we could easily find and study those stickies !!
