2016-P Rosie Feeder Finger / Die Scrapes

But we still have the question "What is abrading the die?"

How do the planchets get into the vertically oriented collar? Is the collar stationary? I know on one press type for while they used a rotating collar but thst was on a vertically striking press. (the planchets were loaded into the collar and the collar rotated to bring them between the dies. Then rotate again and the struck coins were removed from the collar.) The collar had four sets of openings and it rotated a quarter turn with each cycle of the press. If the horizontal striking press had something like that then the rotating collar might be causing the abbraisions.

Just found 7 more and I think I have the coins for the stages before this happened. I will get them all laid out tomorrow and add them on to this post.

Before we start thinking these are from the same die, you might check for matching markers.

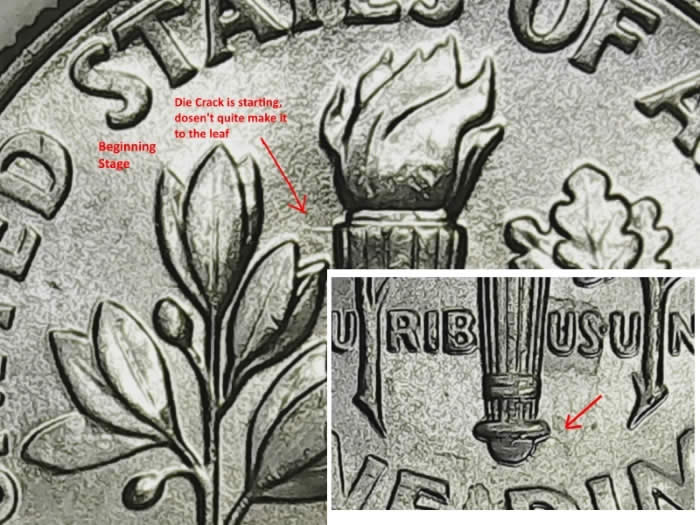

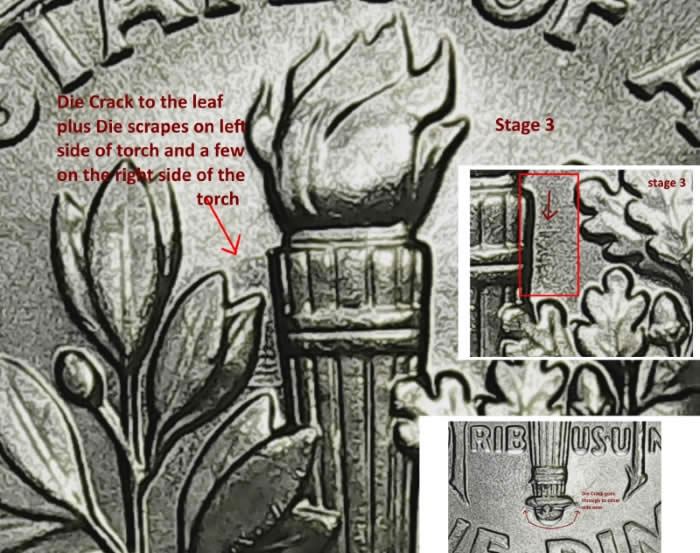

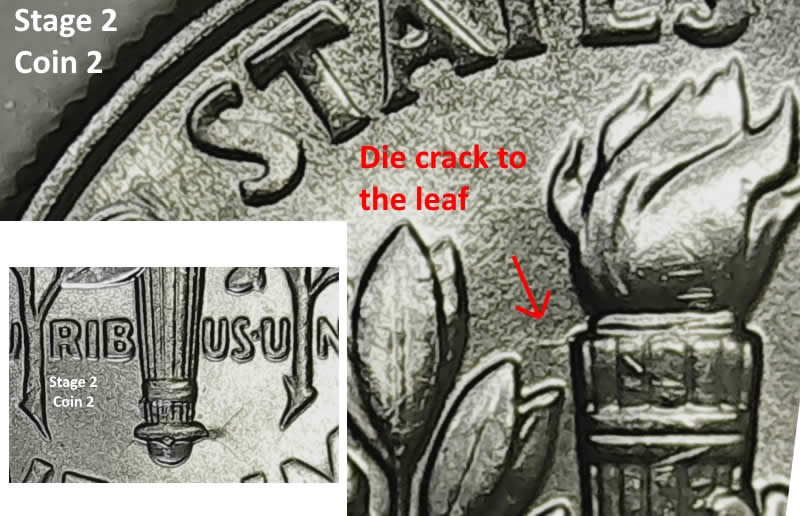

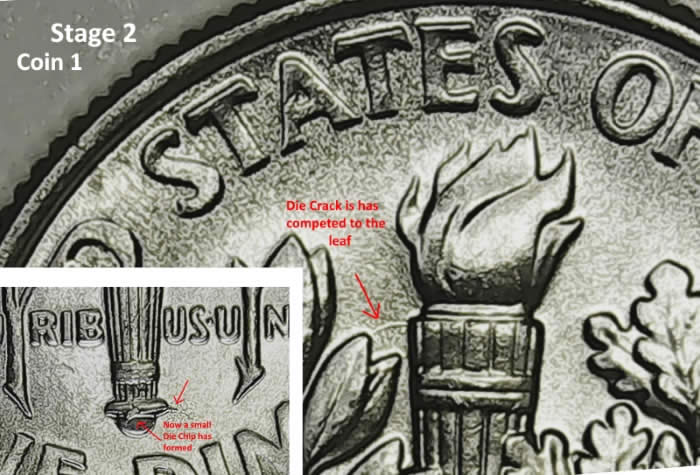

The first image looks like there is a die scratch from the TA on STATES also there is another die scratch from the torch to the'O' on OF. One thing to remember about die scratches they fade with time with the dies continued use. Some die scratches near devices will last a lot longer than those in the open fields.
A die crack will continue to lengthen as the die is continued to be used.
A die chip will also enlarge with continued use.
A shorter die crack/a smaller die chip would mean the coin struck when the die was younger, linger/larger as the die is getting older.
Die cracks happen more on older dies than on new dies, but a new die can show a die crack. So to link two coins as coming from the same die, you need 1-3 reference points that are identical in location for them to be from the same die.
If the die crack is on a letter, need to be in that exact location on that letter. Thus saying there is a die crack located on 'C' on CENT, to be from that same die, the crack must fall exactly in that location. They can vary in length, but not in location if it is from that die.
Dies experience the same things exactly the same way while they are used. Thus some events will be the same/common.
So to match up a set of dies, you need a common die marker to be sure they are from the same die. Hope this helps some.

I sent a PM to Mr. Potter today. Maybe he'l he will check it out.

Same here. let us know if he gets back, but on the CONECA website, it says please refrain from sending Mr. Potter attributions, because of some personal issues

I would wait for an answer from him when he has time. It might make it worse with a second email, even if it is an apology. If he is having personal issues, then he is dealing with them first. Id wait for answer from him. We don't want to appear we are pestering him.

Gravity is too slow to move the planchets/coin through the Schuler press, which strikes coins at at rate of 750 per minute. All evidence indicates that it uses a feeder/ejector mechanism. That evidence consists of feeder impressions, "foreign object chain strikes", and "intra-strike damage" on off-center and especially multi-struck coins. Whether these horizontal scratches were caused by a feeder/ejector isn't clear.

Let me know if any of you would like to trade one of these dimes for something that you have plenty of. I have 9 total and will be keeping one for myself.

If I need to do this in another part of the forum please let me know.

Thanks
