Help With Mexico (Republic) 8R Cap & Ray

thanks RealPeso

"monograph of the silver dollar" I found a scanned copy online by google in the Harvard library online.

it shows two different counterfeit 1936 dies its pretty cool to see differences

I am ordering Resplandores in two weeks my book fund was low but this is my top priority before more coins.

thanks swamperbob, I kind of like both equally I made the transition from collection Jefferson nickel error and varieties and henning counterfeits. So collecting both goes well for me

About 5 or six days till I get paid again Then can order Resplandores, I read and looked "monograph of the silver dollar" last night several times.


I asked a few collectors I know locally for if they had 8 reales and one them I think mentioned your nickname he said he didn't have any but just sold a lot of random body bagged counterfeits to you recently.

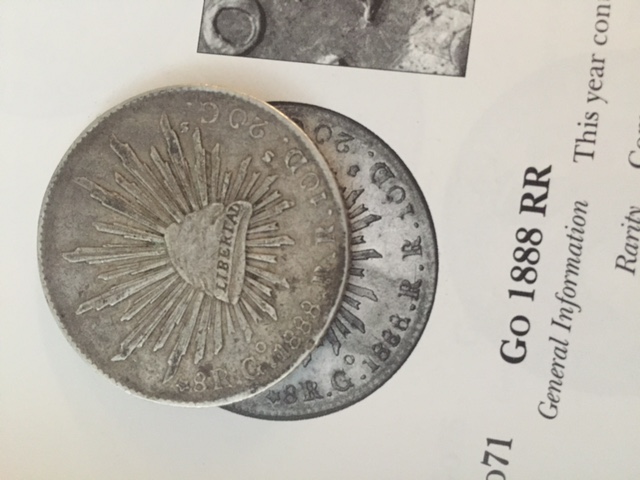

Today I ordered "RESPLANDORES. Cap and Rays 8 Reales of the Republic of Mexico 1823-1897" found a copy in excellent shape for $165 seemed like a good deal should come next week.

I got a few more 8 reales I will post images of.

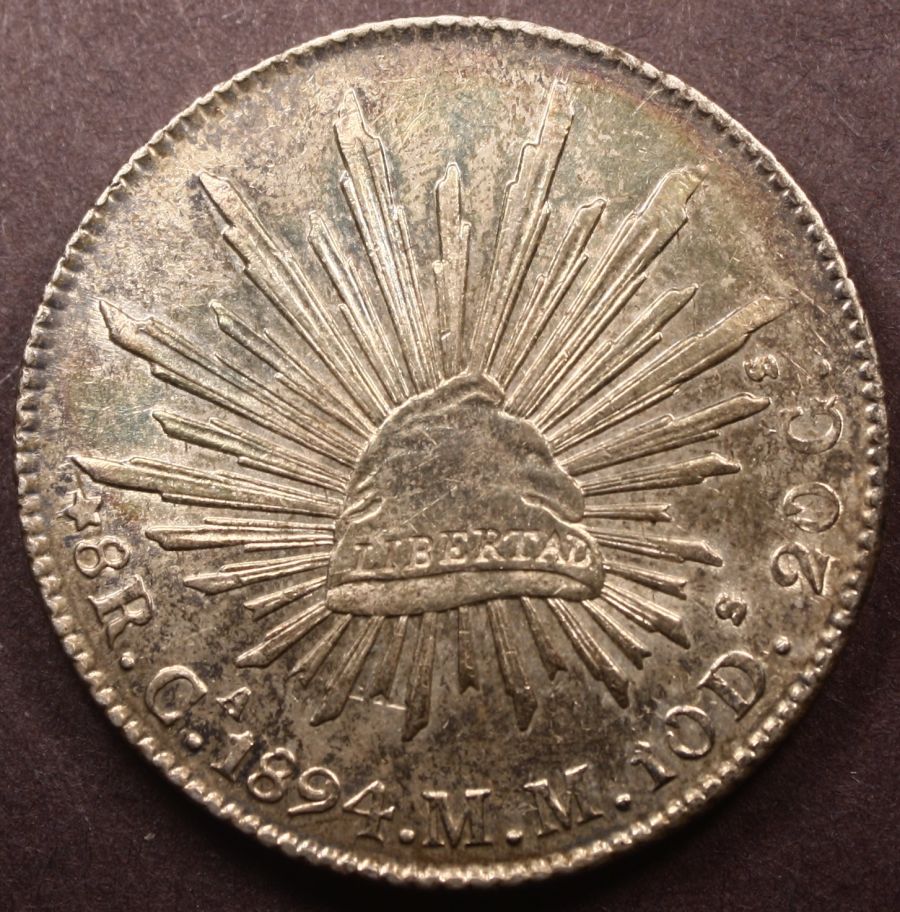

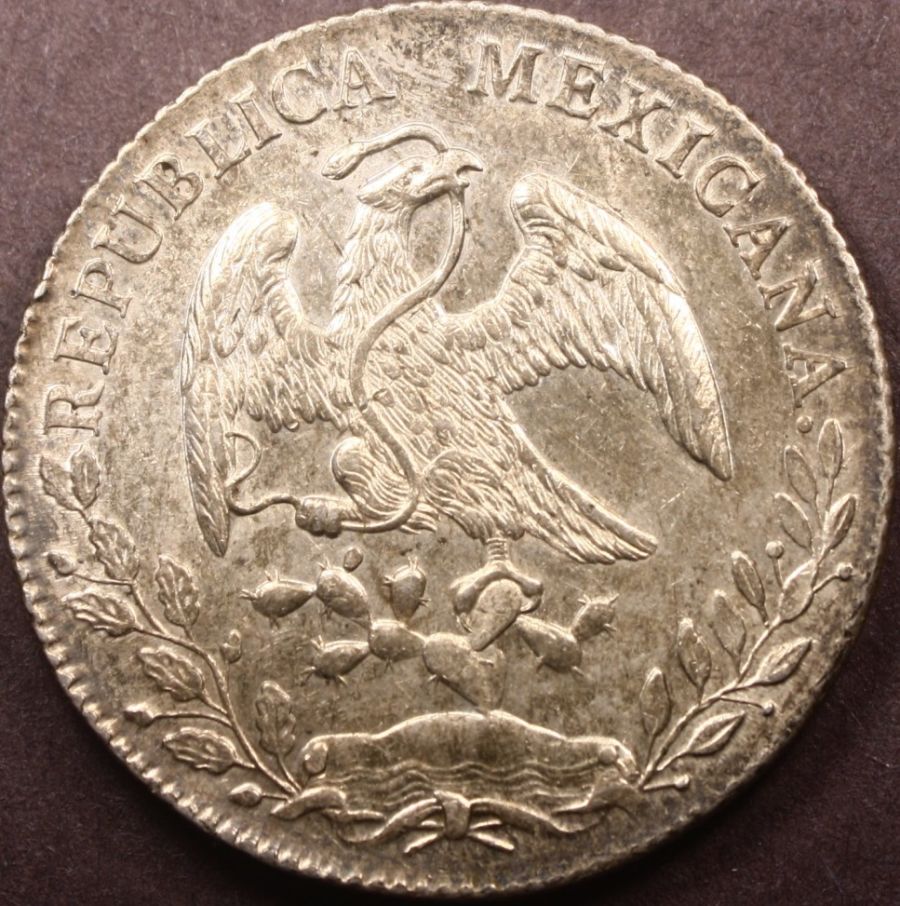

That coin is genuine - Standardized dies made at Mexico City die shop. Very near MS.

One of the best features of Resplandores are of course the photos of the coins. I only wish there were digital copies of all the photographs available for use in die confirmation. This is most important for the earlier technologies of die making. So you are correct in searching databases like Heritage for other examples. I have been capturing images for my own use for years. This can create for you the digital record you will need to go along with the facts Resplandores provides.

As you will come to know, there was a radical change in technology that took place during this series. The most difficult feature of this technological change for a beginner to grasp was that it was not introduced uniformly in the branch mints and that progress was not steady forward. Many mints change the technology used in rather random fashion. Many actually show regression in technology due to many factors. One great bit of knowledge that Resplandores provides in one place is a summary of the individuals, corporations or government entities that ran the mints.

For most of us the concept that mints were semi-private facilities may come as a surprise. But it answers many of the questions about why did die making no only varied so much, but why changes in both directions often seem to happen overnight.

Many of the high output mints were operated and controlled by mining interests. As such the profit made by selling silver was the real interest of the mint - NOT producing a uniform or beautiful product. Technology was used as long as it was not too expensive. So start by getting familiar with the operators of the mint and when they changed hands. The closer the ties to the Federal government the more likely the mint was to trying to conform to federal "standards".

The early working dies were often cut (punched) using very crude machinery. A manual press was obviously limited by its total capacity when trying to press steel punches into a steel die blank. Horse driven presses allowed larger elements to be punched at one time from positive master punches. Steam power provides the final capability needed to use full hubs. Once full hubs were introduced all branch mints could be forced to standardize their dies by providing master hubs. The final step was the production of all working dies in one die shop.

As a result, the earliest dies tend to supply the most variety. The earliest dies vary in spacing of the elements so that no two dies are alike. Dave O'Harrow and Clyde Hubbard indicate in their book Hooknecks that the eagle used on those coins was made from several punches. In that series - each wing may be a different punch so variability is unlimited.

John Riddell in his Monograph mentions King Punches, a technology that could press the central design elements all at once. This means that a Cap and Ray design where the punch has both the Cap and the Rays will never have variable ray positions in relation to the cap. However the same coin could have variable spacing of the legend. A die made using individual ray punches will have variable ray positions. Sometimes there are even a variable number of rays on the Cap.

Hubs (a full positive impression of the design) were not introduced uniformly. In mints like Durango, the early introduction of hubs was a failure and the mint reverted to very crude die making for financial reasons after the first hubs wore out. Places like Zacatecas used a King Punch System of partial hubs for many years after many of the other mints had converted so legend spacings vary more at that mint than many others.

Low volumes mints like Oaxaca tend to have the most crude methods. I have even seen mixtures of hand engraved and punched elements on the same die.

When I started collecting 8Rs there were no computers or digital photos so it took thousands of hours to get to the point that Resplandores can take you to immediately. By comparing pictures you can see when technology changed. The book provides some of those clues directly by mentioning the introduction of steam power, etc..

All of this was to warn you about how to approach a design variation.

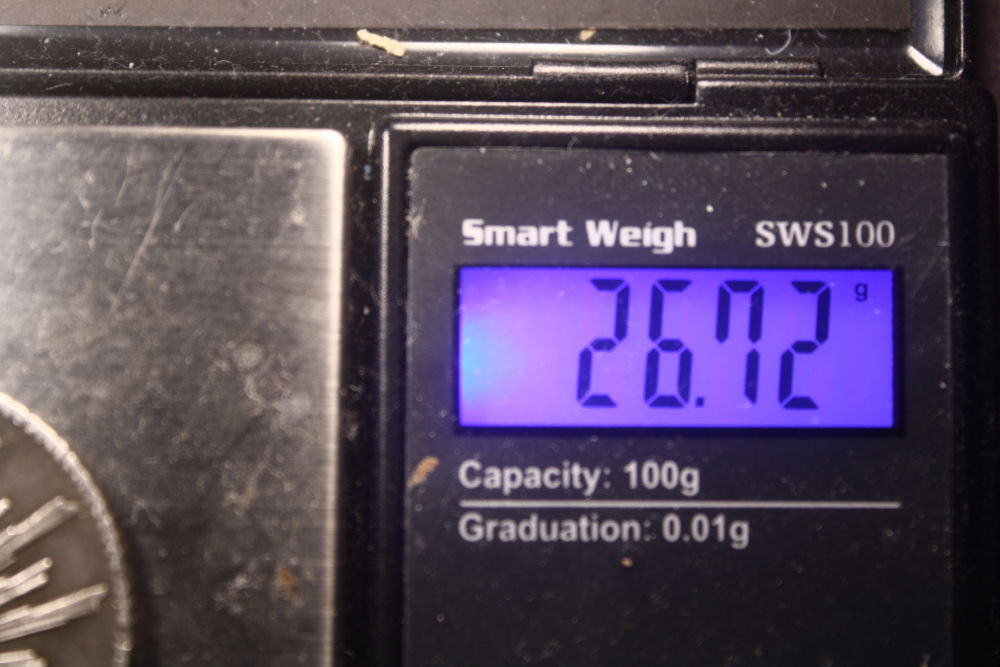

After you check the physical parameters - weight, size and density even XRF signature of a coin - you need to determine if the die was made correctly for the mint and year. This is often how you can identify counterfeits.

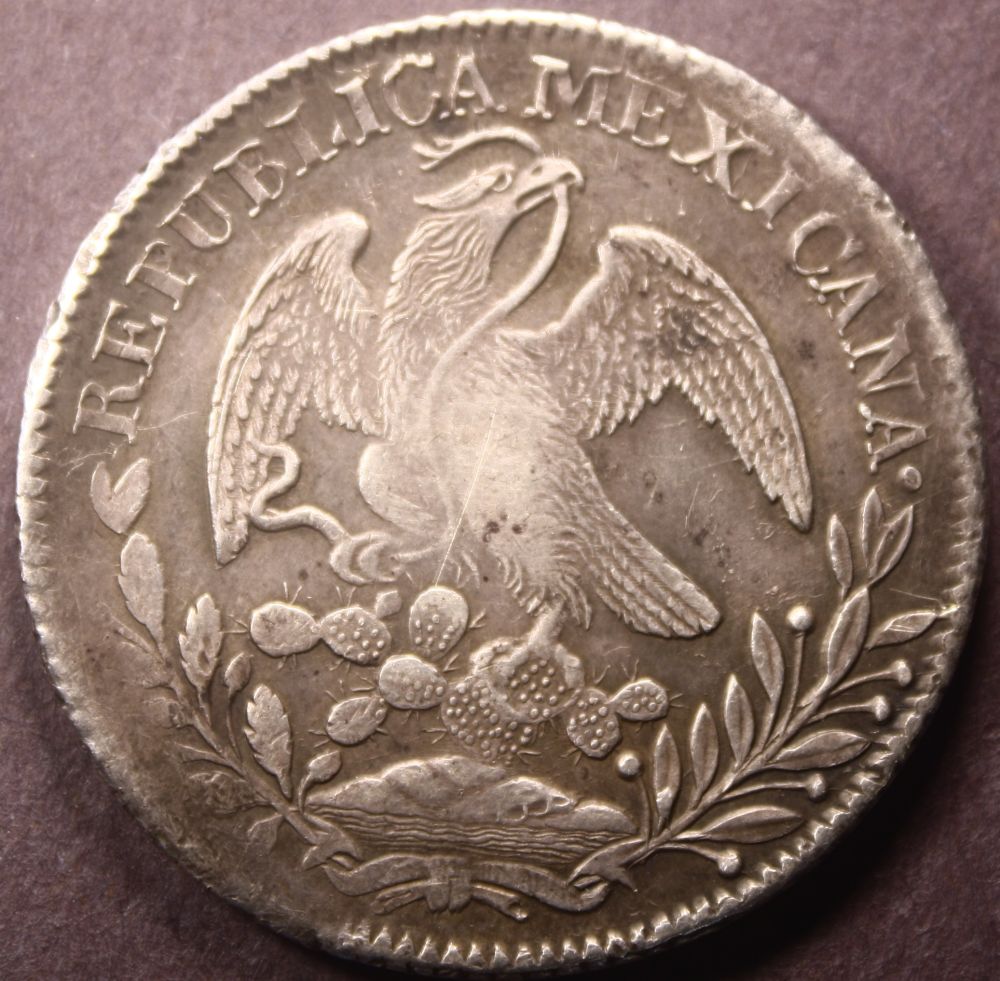

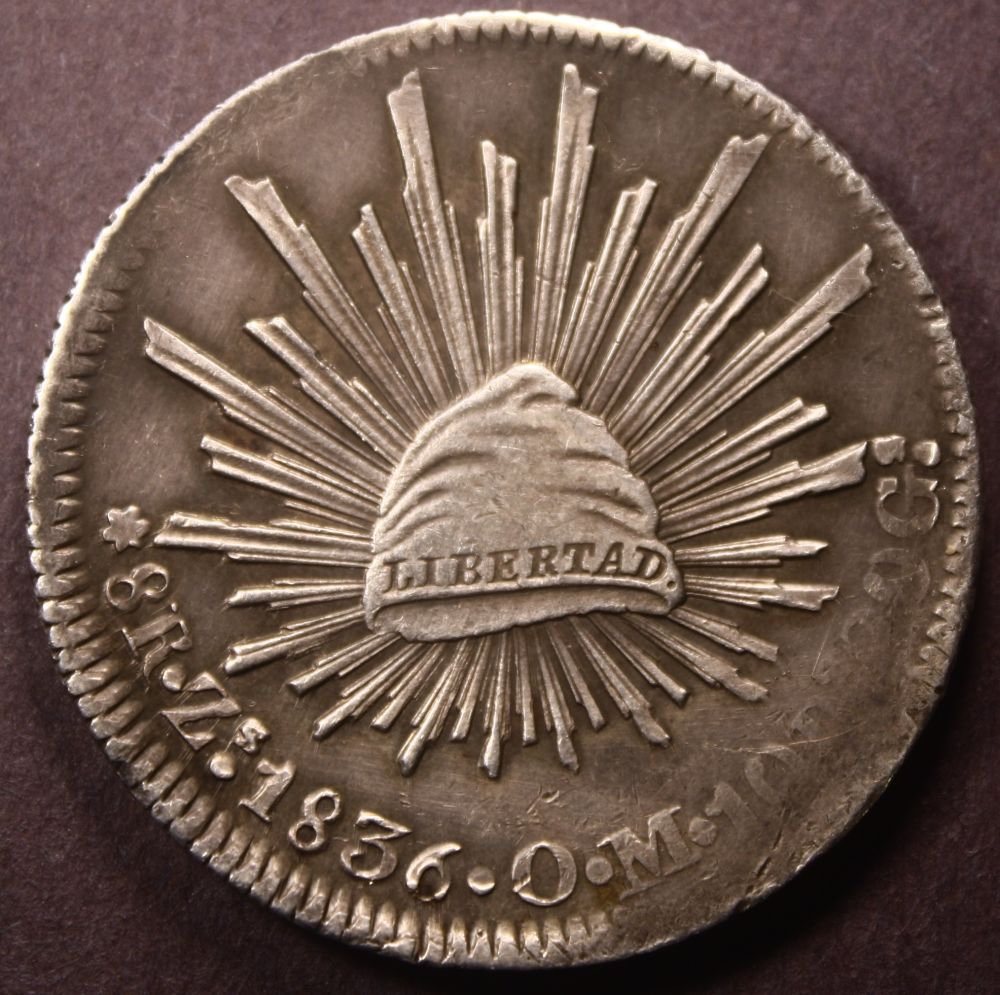

For example. If you are reviewing your 1836 Zacatecas coin you need to know that the Eagle was made with a King Punch. If it was fully set into the working die there should be no major differences in the art work on the bird. The feathers etc. should all be the same. You also need to know if any minor elements were added to the die AFTER setting of the major punches. Variations in the lower beak, eye and nostril location all may be finishing touches on the die.

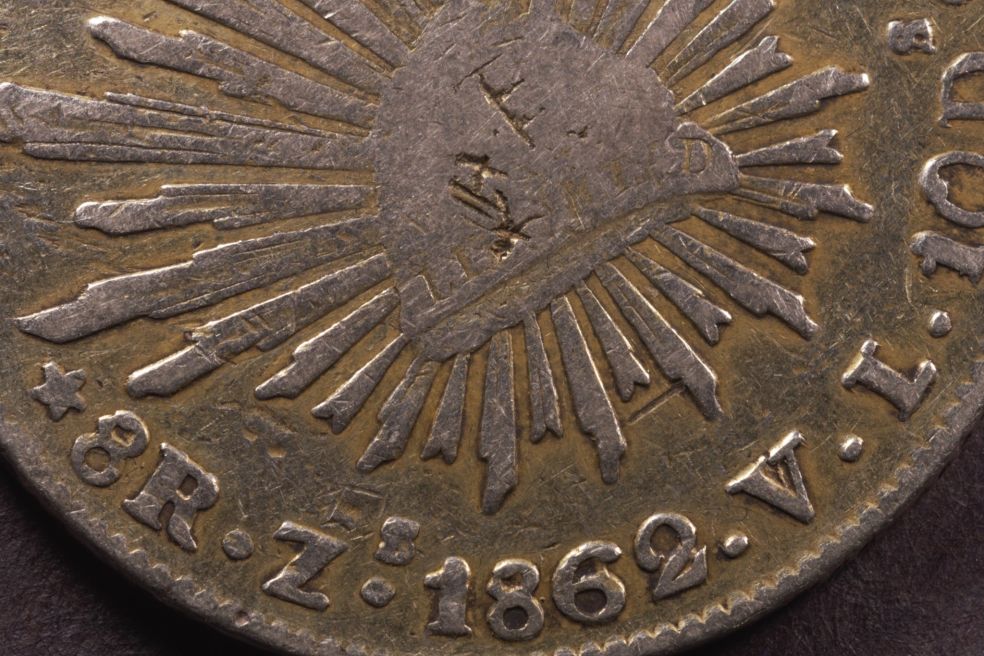

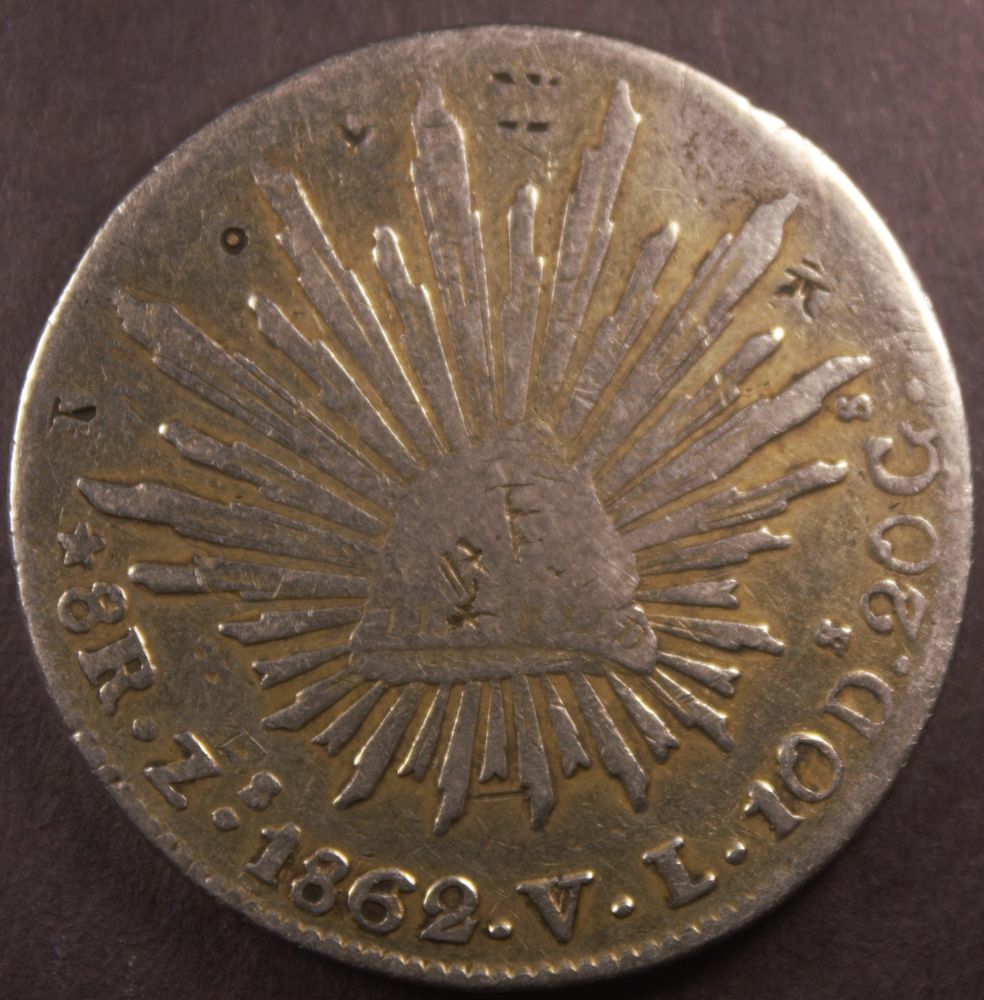

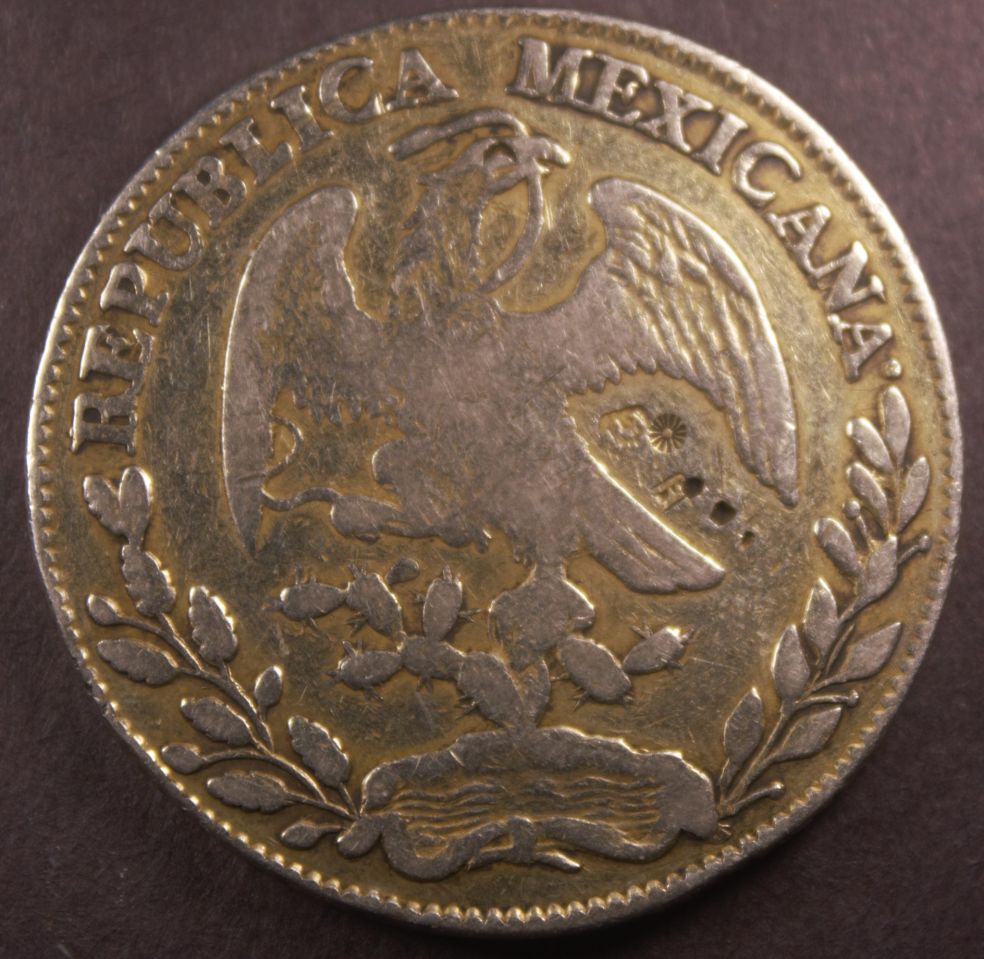

1862 Zs-VL 8 Reales

This cap & ray 8 reales was struck at the mint in Zacatecas mint .

Mintage: unknown

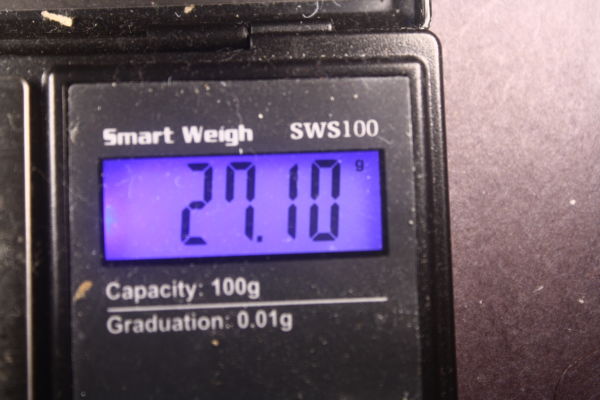

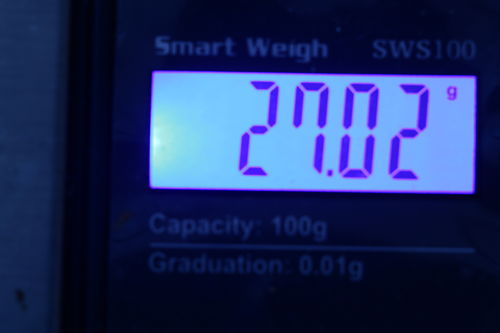

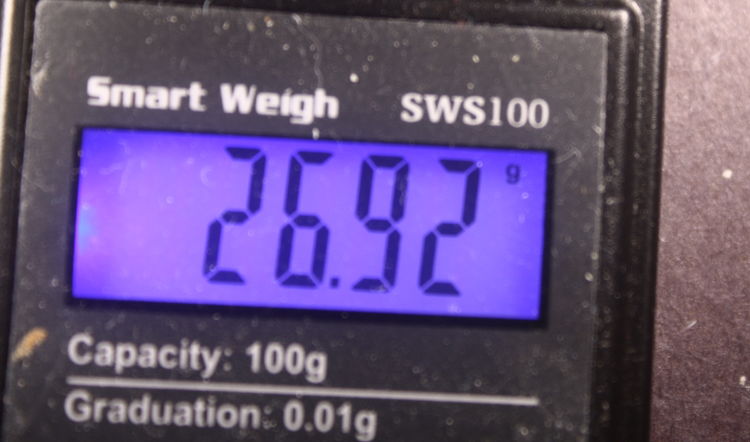

Weight:27.10 g

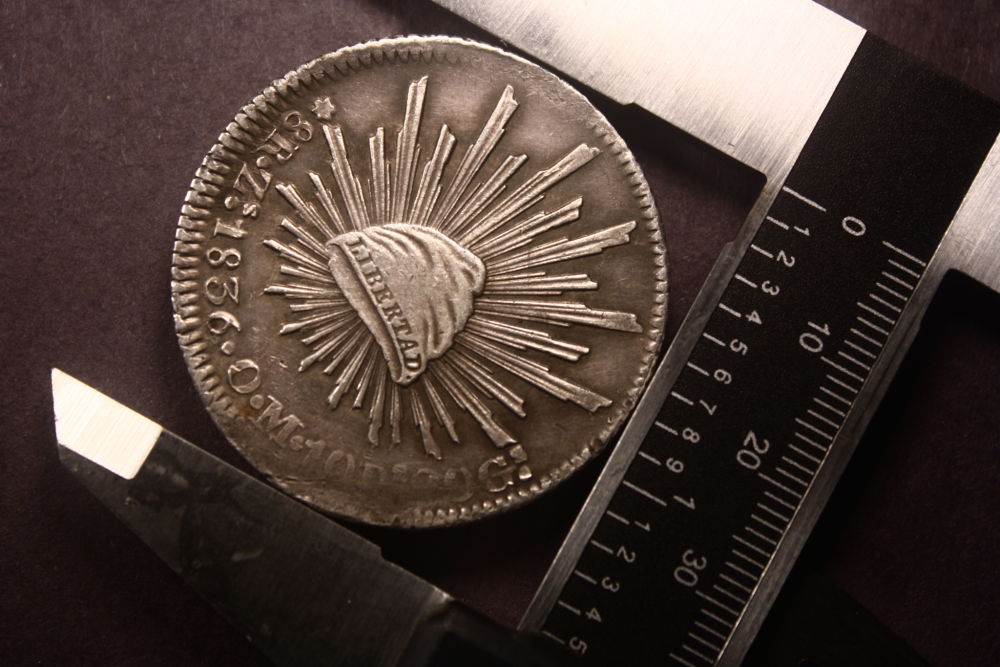

Diameter:varies from 36.85 to 37.02
Catalog reference: KM-377.8

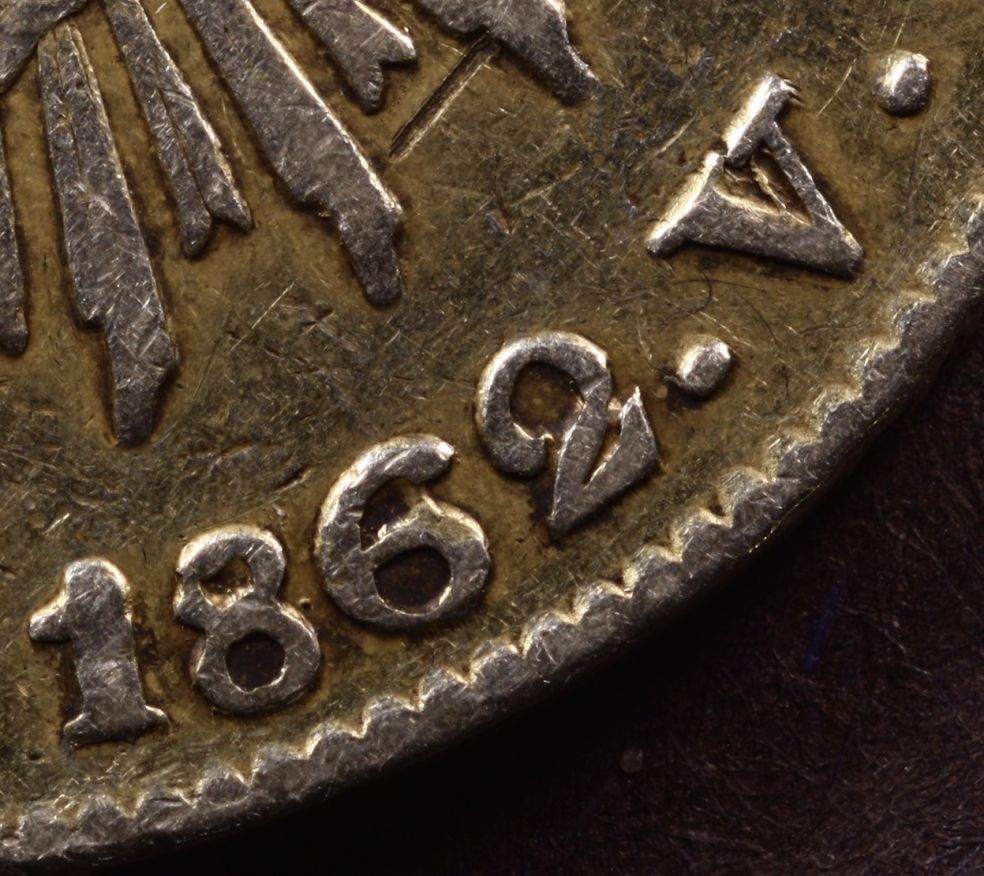

the date and VL appear to possibly be repunched or have something going one.

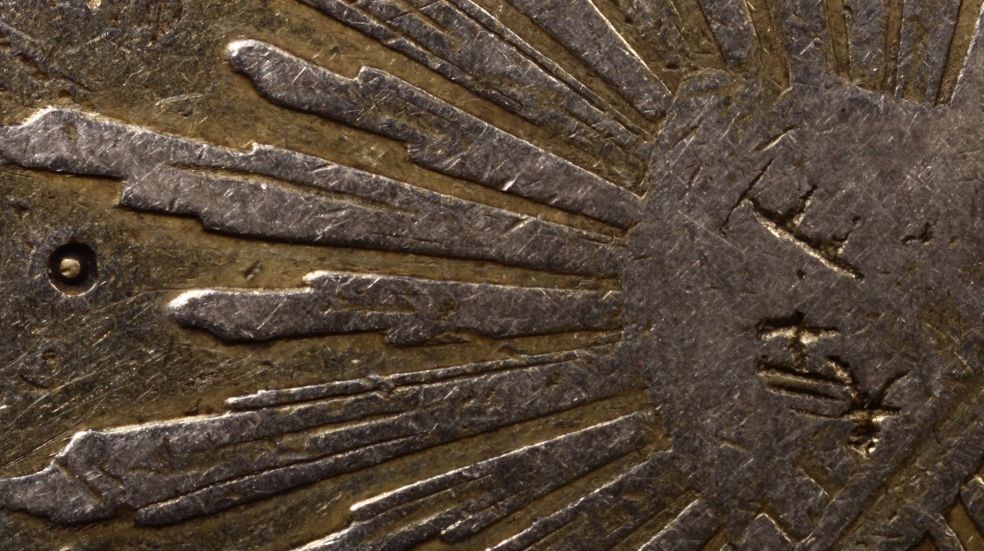

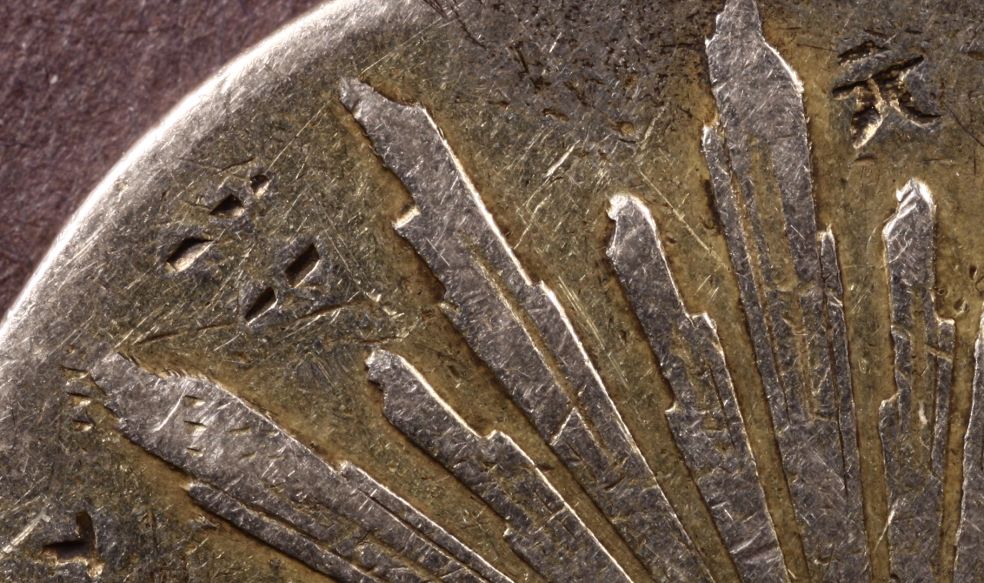

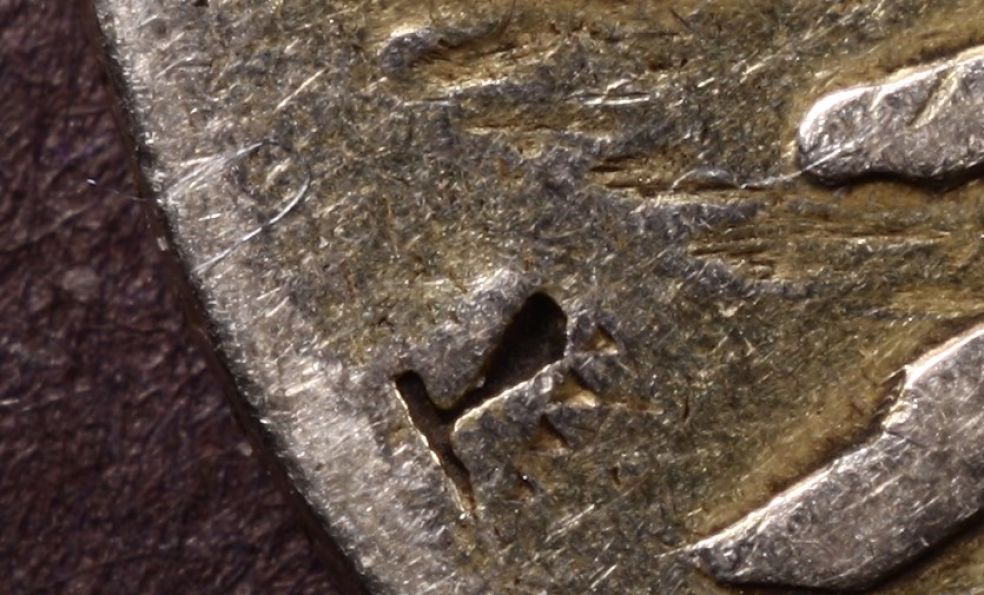

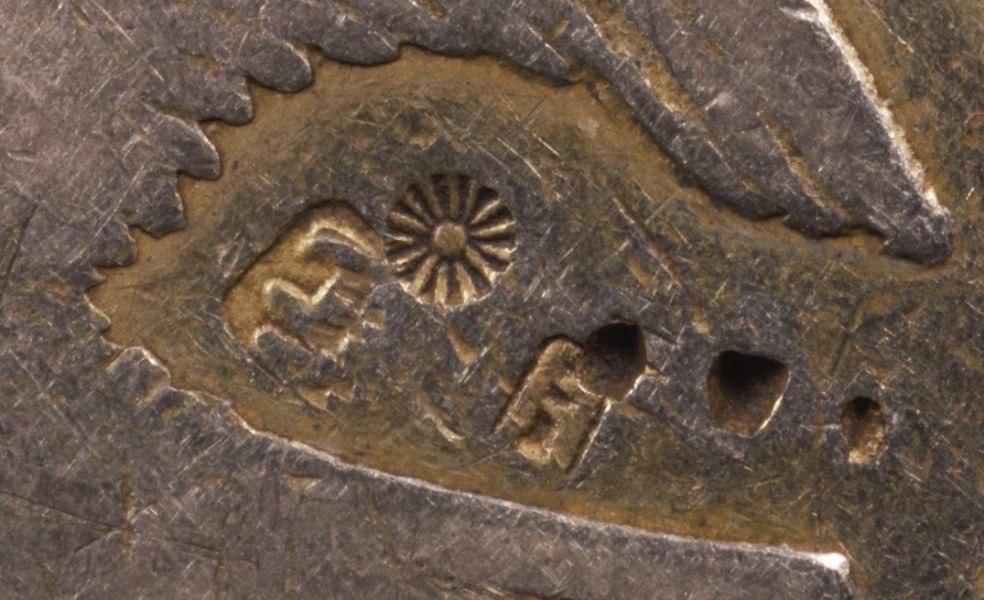

the coin is not the best of shape but has some cool character so I can overlook it most likely been cleaned, polish and around the block with a bunch of chop marks.

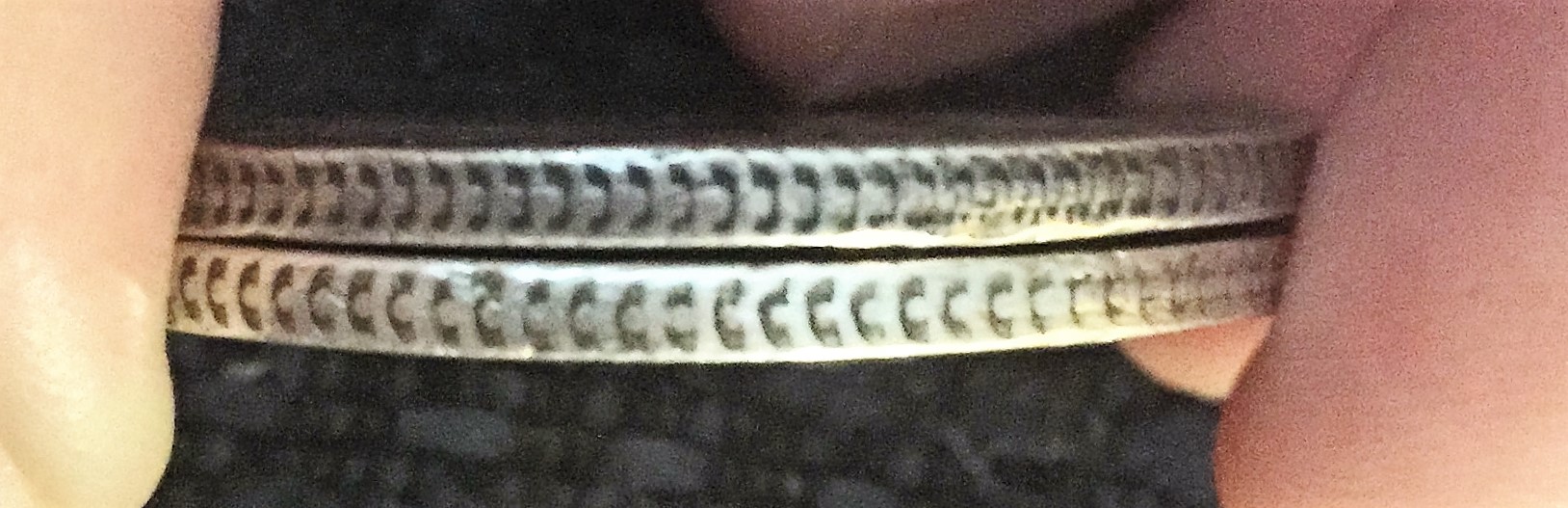

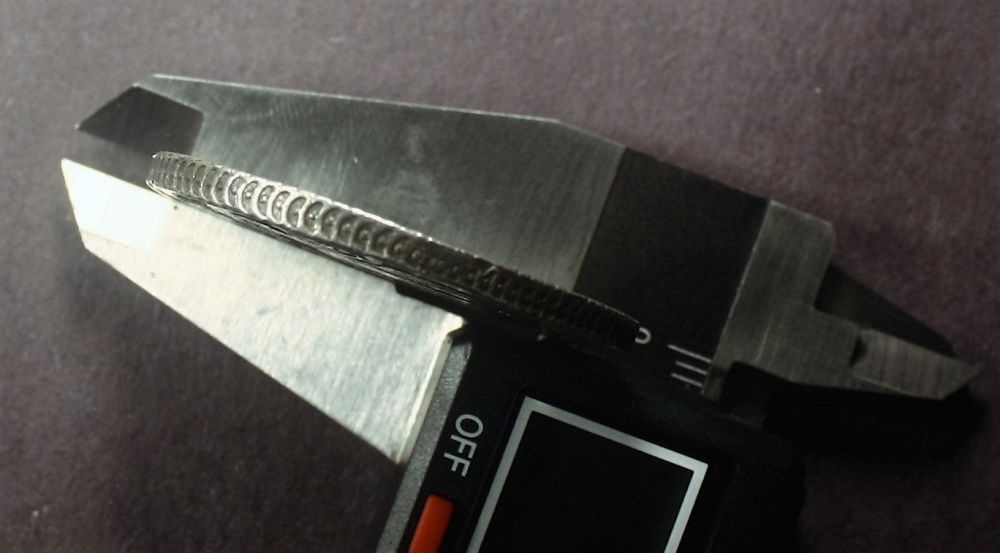

The edge of coin looks correct does the pattern vary ?

what I mean is when they mint the coin are the obverse and reverse always in same location.

0.80 mm thick almost at all points



so when you turn coin on side to view the edge of the coin for example if the obverse is to the top and the reverse to the bottom is the edge pattern circles inside crescent shape with dot facing toward east or west? or does this vary per die and could keeping record of this be useful in any way?

when coin the when I drop the coin it does not have the ting sound at end

here is a bad video

Note:the first coin is coin in question it stays towards top of screen
