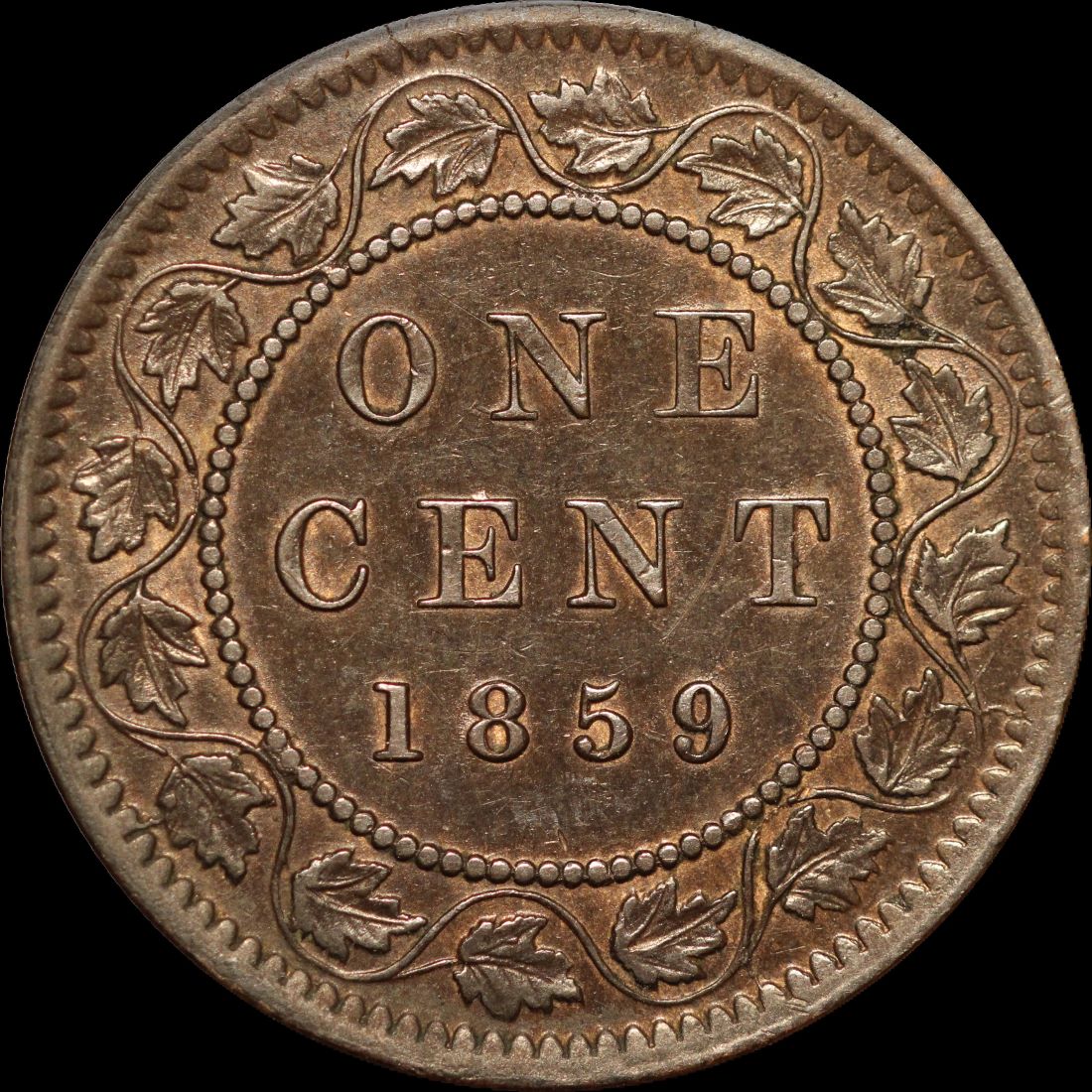

One of my favorite reverse dies in the 1859's is Haxby P15. P15 was paired with obverse 77 to make die pair 771. PC59-771 is one of the most common die pairs. The P15 reverse was used a long time and in later states has an amazing amount of die cracks. Here is a photo of my late state P15. I was wondering if anyone has later states of this die? Photos of any die states, early to late would be nice to see. It's interesting to see the progression.  |
|
|
|
Pillar of the Community
New Zealand
1679 Posts |

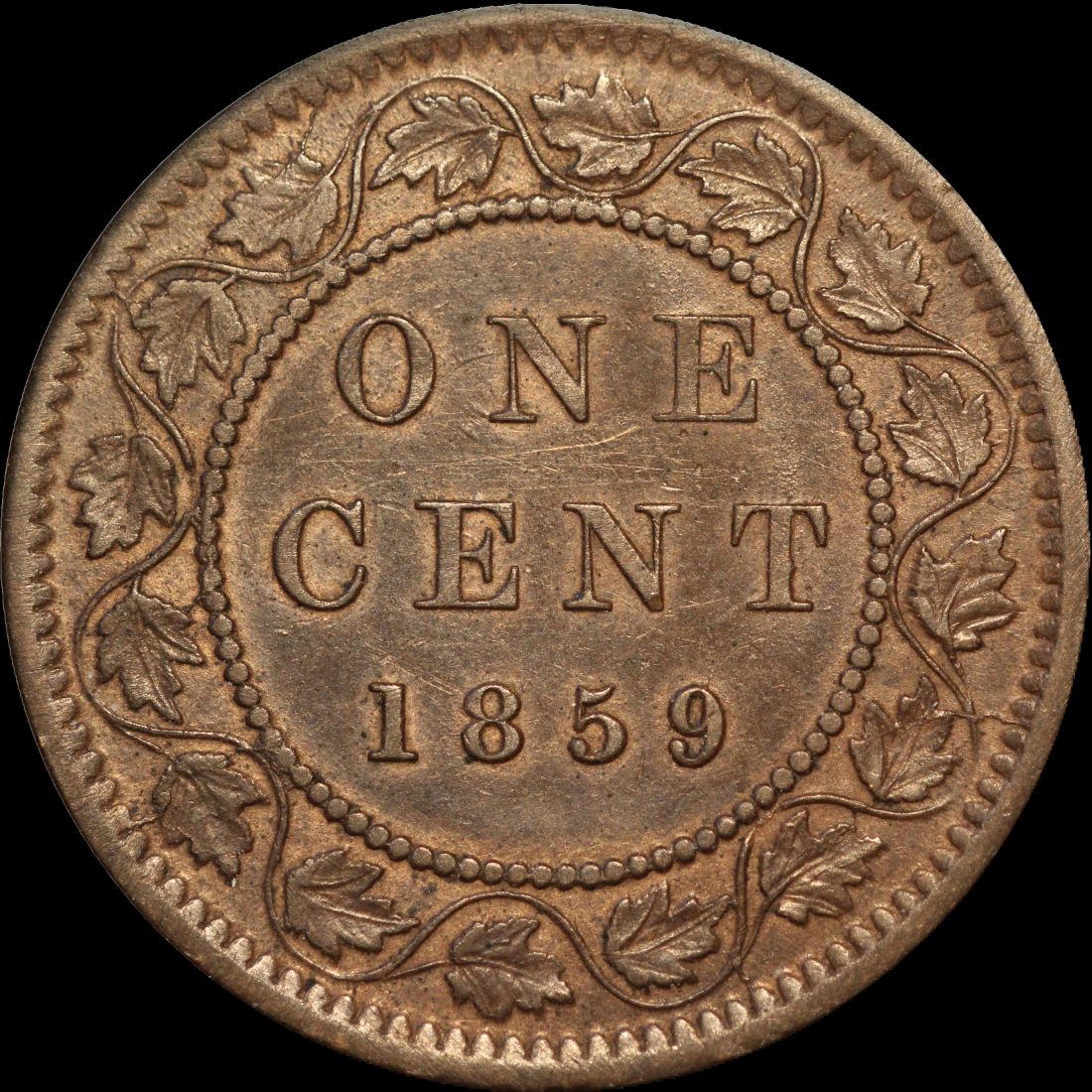

Here's my only 1  Cheers Don
Vickies cents and GB Farthings nut.
"Old" is a figure of speech and nothing more
|
|
Pillar of the Community
Canada
638 Posts |

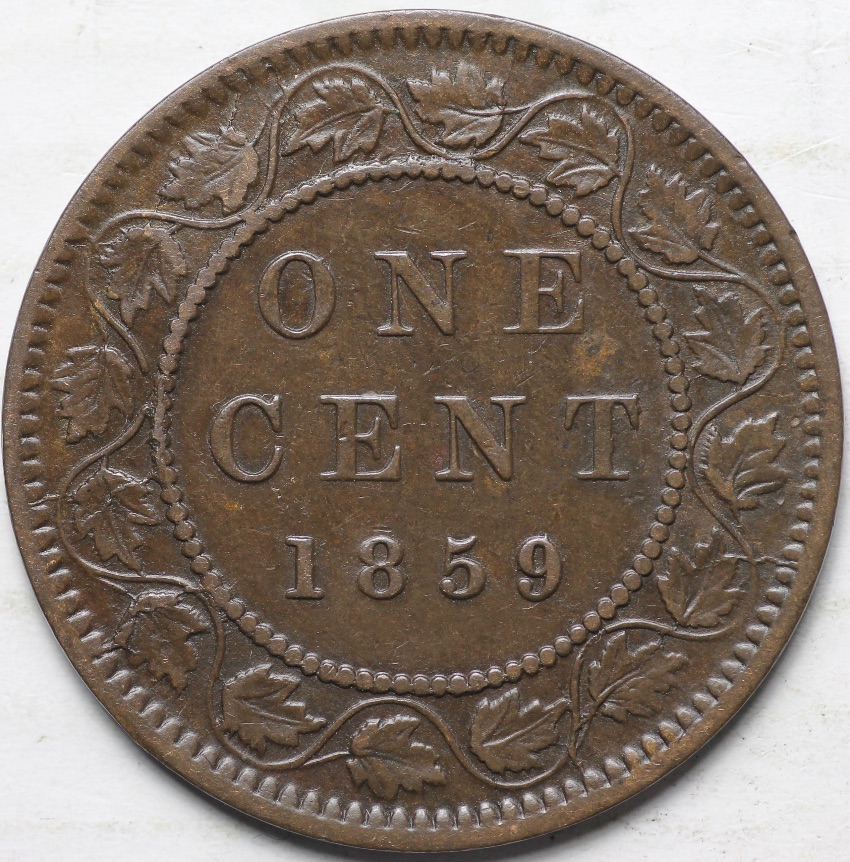

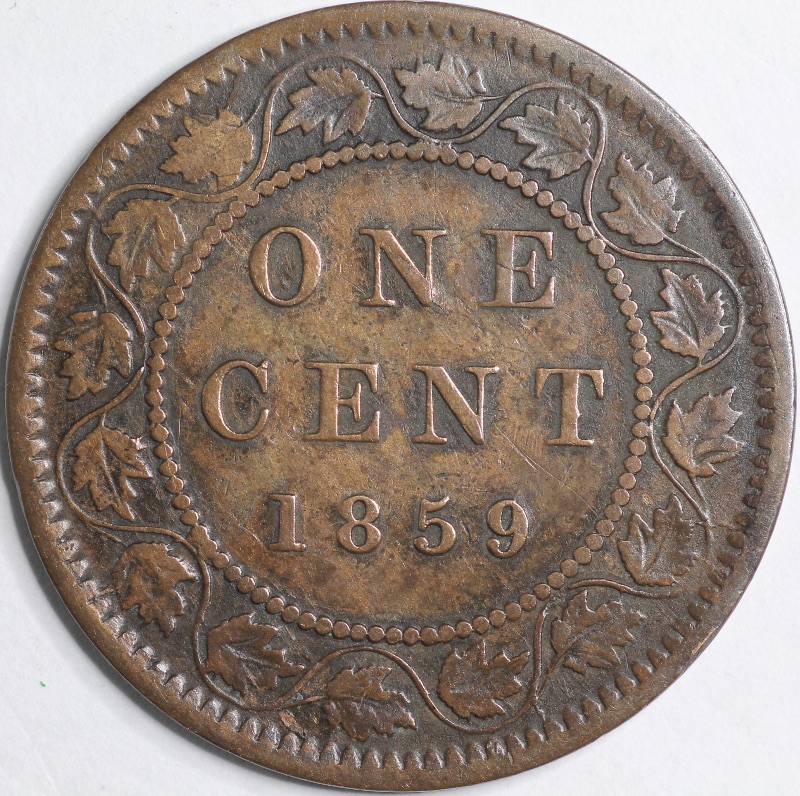

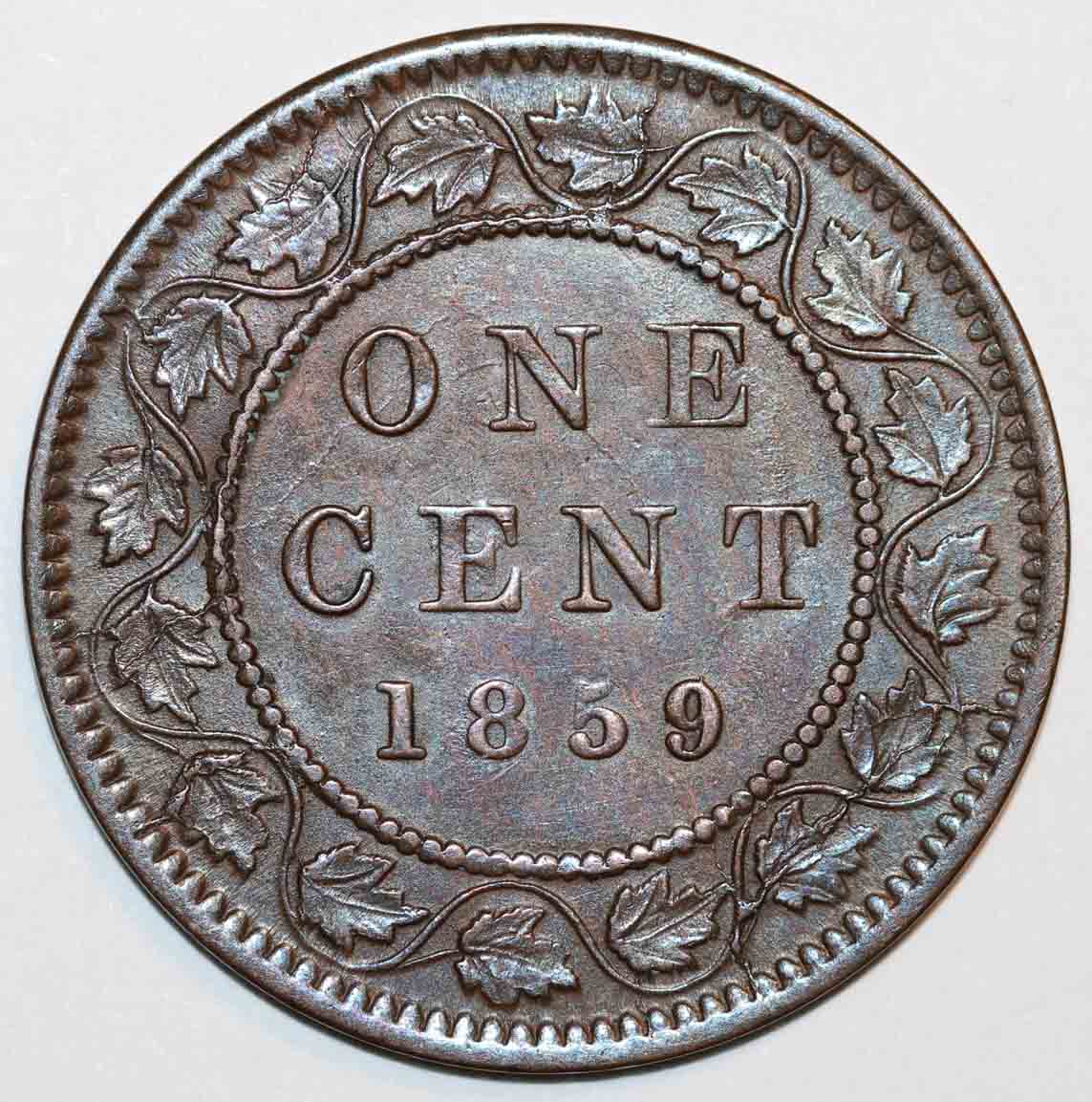

Phil310, I have two of those. Hope this helps! MG   |
|
Pillar of the Community
 Canada
5592 Posts |
I have a number of these but no photographic skills. When I get a chance, I'll look and see how many I have. I may have to loan them to someone to use with a camera. I would guess maybe 10 or more. Since the D/C at the 9 starts out thick and then narrows considerably, I used to label them "horned 9's" on the holder to remind me what it was.
|
|
Pillar of the Community
New Zealand
1679 Posts |
Quote:
I used to label them "horned 9's" on the holder to remind me what it was. I wondered what that meant I now have 2  Cheers Don
Vickies cents and GB Farthings nut.
"Old" is a figure of speech and nothing more
|
|
Pillar of the Community
 United States
1101 Posts |
Thanks guys. Nice photos of some late die states. All of those show the crack that goes from the rim through leaf 6 and then down through 6 and 7 and back to the rim. That looks like a great place for a Cud to form. Okie, do any of yours show any sign of a Retained Cud or Cud there? The coiners didn't seem to be in any hurry to retire this die. |
|
Pillar of the Community
Canada
3234 Posts |
I do have one example but it's a kind of an early stage without the horn in the 9 (just a fine crack up from the 9) and very similar to viper's 2nd cent.. but a lower grade.
No pics of it yet...
|
|
Pillar of the Community
Canada
5592 Posts |
Phil .. Yes, one of mine has a Cud 1/2 covering the leaf. It looks like these also had a chance to form a Cud at 15/16. |
|
Pillar of the Community
United States
1101 Posts |
Thanks for checking those okiecoiner! That's what I was hoping to find when I started the thread! Sounds like a terminal die state for P15.
I would love to see a picture of that one if you could arrange it.
|
|
Pillar of the Community
Canada
5592 Posts |

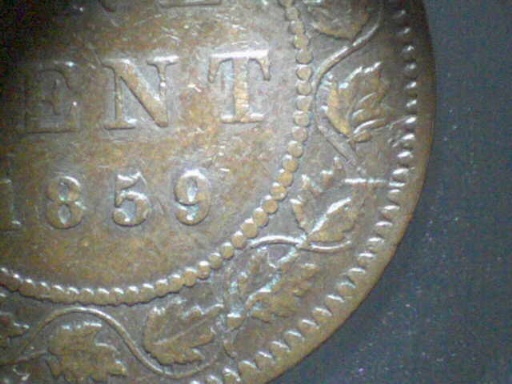

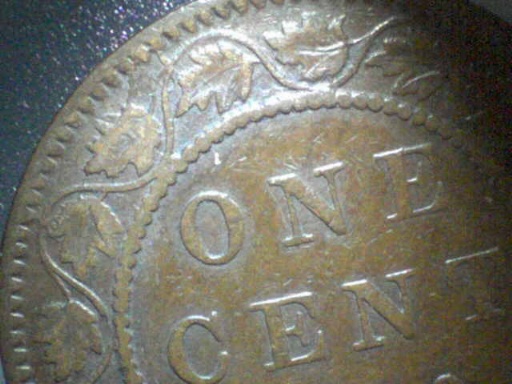

I have no means to photo it, but here is a QX5 microscope shot of it. There is a Cud covering about 1/2 of leaf 6 and the second shot shows that maybe leaf 15 is as well with the huge D/C ther at 15 & 16. The coin is only F-15 so it doesn't show well, but I haven't looked through all my coins yet. I may find a better one.   |
|
Pillar of the Community
United States
1101 Posts |
Thanks Okiecoiner. That one is definitely later than the first one I posted. Heavier breaks along the crack at leaves 6-7 and also at 15-16.
Looks like that section at leaves 6-7 was about ready to fall off the rest of the die.
|
|
Pillar of the Community
United States
840 Posts |
771 P 15 Obv 1 Rx 2 VF 20
Obv 1 Rx 2 F 12
Obv 1 Rx 4 XF 45
Obv 1 Rx 6 G 04
Obv 1 Rx 7 XF 40
Obv 1 Rx 8 XF 40 Bead clash below truncation / Clog CANADA.
Obv 2 Rx 8 XF 40 Same clog.
Obv 2 Rx 8 XF 40 Same clog.
Obv 3 Rx 10 XF 40 As above, plus a Die-Crack is to leaf 1.
Obv 3 Rx 11 XF 40 As above, but extensive radial Die-Cracks.
Obv 3 Rx 12 VG 10 Heavier Die-Cracks yet.
Obv 3 Rx 13 VG 08 Terminal.
doug
Edited by colonialtokens
09/03/2017 01:06 am
|
| |
